ZT 2.5/4AN/4

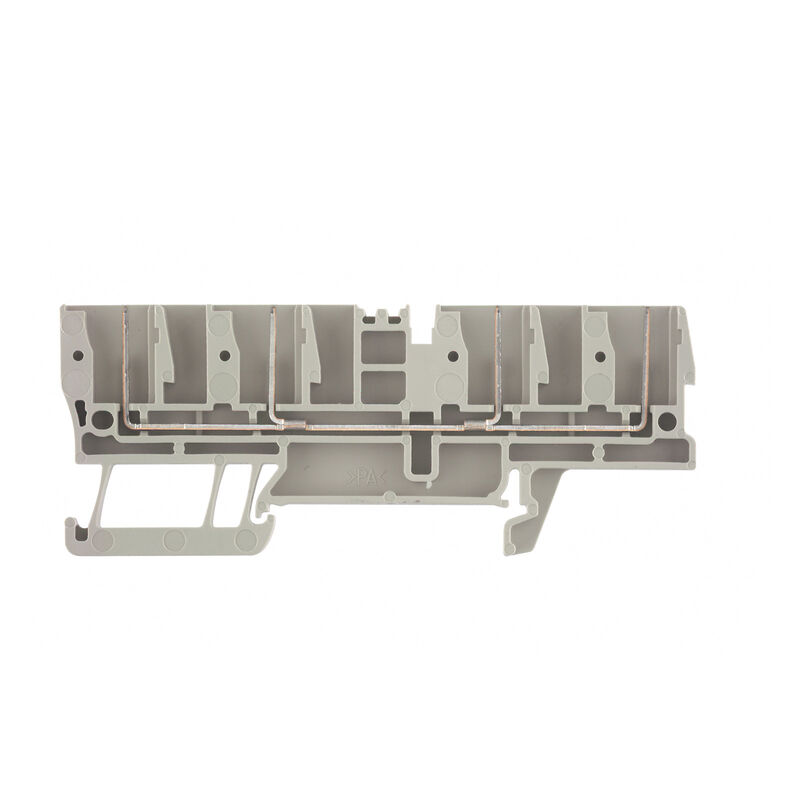

Product image
ZT 2.5/4AN/4

ZT 2.5/4AN/4

Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Plug-in connection, dark beige

Ürün No. 1815130000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 33 İlgili ürünler 162
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Homologaciones
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319221/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319244/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Versión
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Plug-in connection, dark beige
Código
1815130000
Tipo
ZT 2.5/4AN/4
GTIN(EAN)
4032248370047
Qty.
50 adet

Dimensions and weights

Profundidad
34.5 mm
Depth (inches)
1.358 inch
Depth including DIN rail
35 mm
Altura
85.5 mm
Height (inches)
3.366 inch
Anchura
5.1 mm
Width (inches)
0.201 inch
Net weight
9 g

Temperatures

Temperatura de almacenamiento
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

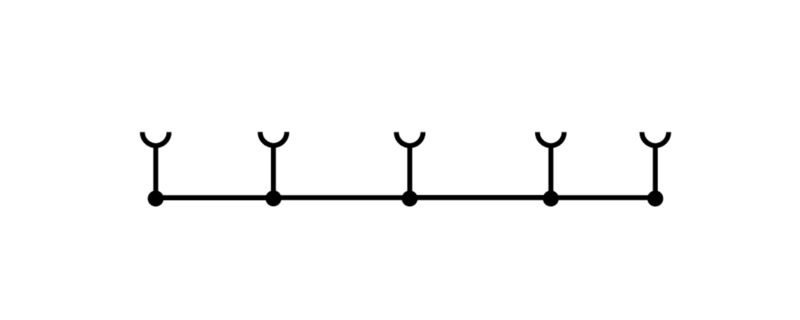

System specifications

Version
4 plug-in connections
pluggable
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
PE function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Tipo di collegamento, ulteriore collegamento
Plug-in connection

Conductors for clamping (rated connection)

4 mm²
Campo di sezioni, min.
0.13 mm²
Direzione di collegamento
top
Ledararea, entrådig, max.
4 mm²
Ledararea, entrådig, min.
0.13 mm²
Numero di collegamenti
4
Sezione di collegamento cavo AWG, max.
AWG 12
Sezione di collegamento cavo AWG, min.
AWG 30
Sezione di collegamento cavo, flessibile con terminali DIN 46228/1, min.
0.13 mm²
Sezione di collegamento cavo, flessibile con terminali DIN 46228/4, max.
4 mm²
Sezione di collegamento cavo, flessibile con terminali DIN 46228/4, min.
0.13 mm²
Sezione di collegamento cavo, flessibile, max.
0 mm²
Sezione di collegamento cavo, flessibile, min.
0.13 mm²
Tipo di collegamento
Plug-in connection
Сечение подсоединяемого провода, скрученный, макс.
4 mm²
Сечение подсоединяемого провода, скрученный, мин.
0.13 mm²

CSA rating data

Certificate number (cCSAus)
154685-1460993
Current size C (cCSAus)
20 A
Current size D (cCSAus)
5 A
Voltage size C (cCSAus)
300 V
Voltage size D (cCSAus)
600 V
Wire cross section max. (cCSAusX)
12 AWG
Wire cross section min. (cCSAusX)
26 AWG

General

Guida equipaggiata
TS 35
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 30

Rating data

Rated cross-section
2.5 mm²
Rated voltage
500 V
Max. voltage of clamp support & pluggable system
690 V
Rated DC voltage
500 V
Nominal current
24 A
Current at maximum wires
24 A
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
