BLL 7.62HP/05/90LF 3.2SN BK BX

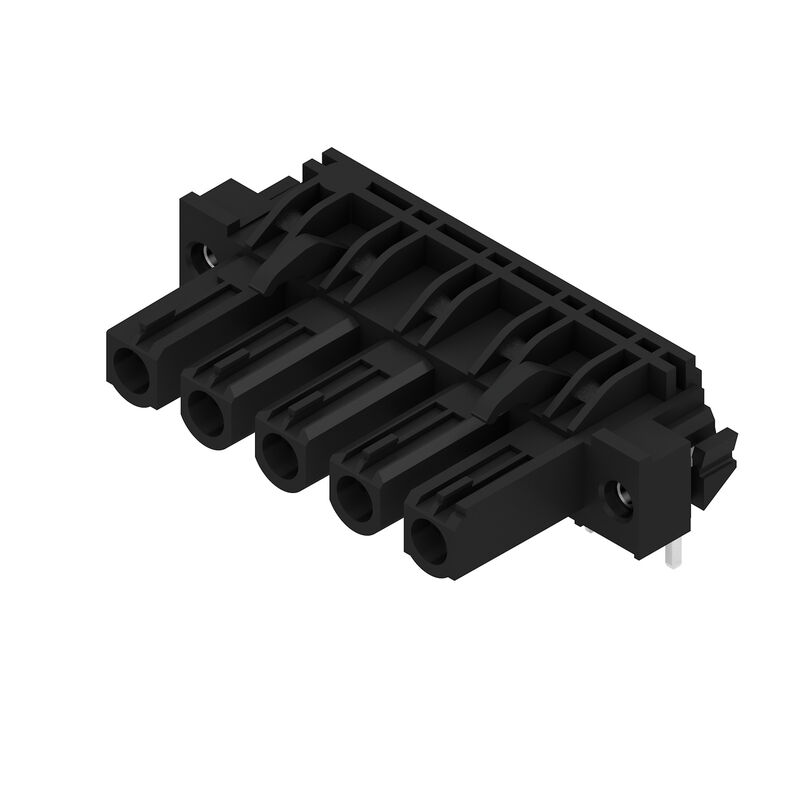

Product image
BLL 7.62HP/05/90LF 3.2SN BK BX

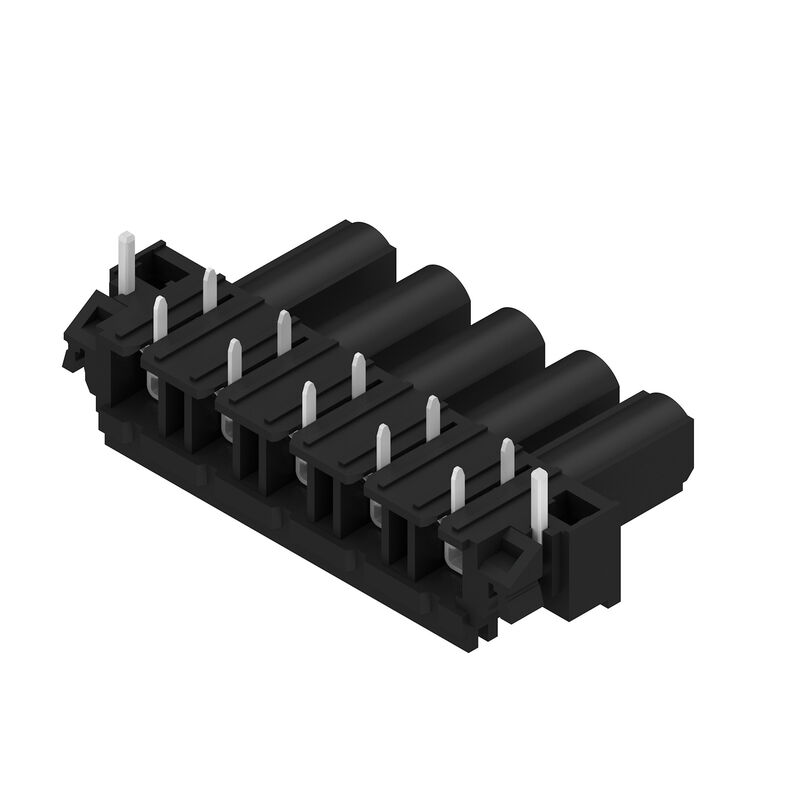

Product image
BLL 7.62HP/05/90LF 3.2SN BK BX
Dimensional drawing
BLL 7.62HP/05/90LF 3.2SN BK BX
Graph
BLL 7.62HP/05/90LF 3.2SN BK BX
Graph
BLL 7.62HP/05/90LF 3.2SN BK BX
Graph

BLL 7.62HP/05/90LF 3.2SN BK BX

Bu ürün yakında mevcut olmayacak.

Last order date: /Date(1827529200000)/

PCB plug-in connector, female header, Solder flange, THT solder connection, 7.62 mm, Number of poles: 5, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box

Ürün No. 1095670000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 Karşı parçalar 2 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female header, Solder flange, THT solder connection, 7.62 mm, Number of poles: 5, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
Order No.
1095670000
Type
BLL 7.62HP/05/90LF 3.2SN BK BX
GTIN (EAN)
4032248868506
Qty.
36 adet
Product data
IEC: 630 V / 24 A
UL: 300 V / 20 A
Packaging
Box
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1827529200000)/

Dimensions and weights

Depth
24,5 mm
Depth (inches)
0,965 inch
Height
13,7 mm
Height (inches)
0,539 inch
Width
47,28 mm
Width (inches)
1,861 inch
Net weight
9,167 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Power - series BL/SL 7.62HP
Type of connection
Board connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Number of poles
5
L1 v mm
30,48 mm
L1 en pulgadas
1,2 "
Number of rows
1
Nombre de pôles
1
DIN VDE 57 106에 따른 터치 안전 보호
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Can be coded
Yes
Plugging force/pole, max.
10 N
Pulling force/pole, max.
7 N

Material data

Insulating material
PA GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
2...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
24 A
Rated current, min. number of poles (Tu=40°C)
24 A
Rated current, max. number of poles (Tu=40°C)
21 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
630 V
Rated voltage for surge voltage class / pollution degree III/3
400 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV
Short-time withstand current resistance
3 x 1s with 180 A
Clearance, min.
7,2 mm
Creepage distance, min.
7,8 mm

Rated data acc. to CSA

Instytut (CSA)
CSA
Certificate No. (CSA)
200039-1121690
정격 전압(사용 그룹 B / CSA)
300 V
Märkspänning (användargrupp C / CSA)
150 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
20 A
Rated current (Use group C / CSA)
20 A
Prąd znamionowy (grupa użytkowa D / CSA)
10 A
Hänvisning till godkännandevärden
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Tension nominale (groupe d'utilisation C / UL 1059)
150 V
Tensione nominale (Gruppo D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group C / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Clearance distance, min.
7,2 mm
Creepage distance, min.
7,8 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

opakowanie
Box
Délka VPE
338 mm
Larghezza VPE
130 mm
Высота VPE
27 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Spacing between rows: see hole layout
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
