Egenskaper
| Utförande | Fotovoltaik |
| Art.nr. | 8000087025 |

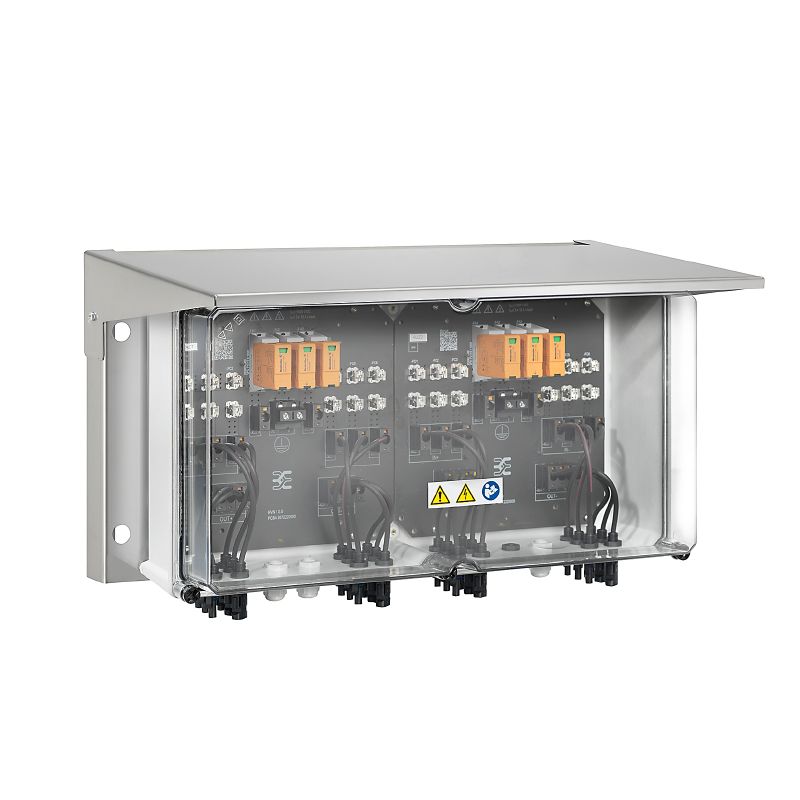

| Typ | PV SUN COVER 56/30/21 |
| GTIN (EAN) | 4064675845188 |
| Förp. | 1 items |
| Djup | 326 mm |
| Byggdjup (tum) | 12,835 inch |
| Höjd | 341 mm |
| Bygghöjd (tum) | 13,425 inch |
| Bredd | 629 mm |
| Byggbredd (tum) | 24,764 inch |
| Nettovikt | 5 200 g |
| RoHS-kompatibilitetsstatus | Kompatibel utan undantag |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Rostfritt stål 1.4301 (304) |
| Teknikuppgifter Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_252897)
[Application notes -- Positions of attachment holes](https://mdcop.weidmueller.com/mediadelivery/asset/900_257094) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8000087025) |
| Teknisk dokumentation | [Temporary picture for PV Sun Covers](https://mdcop.weidmueller.com/mediadelivery/asset/900_255394) |
| Kataloger | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002498 |
| ETIM 7.0 | EC002498 |
| ETIM 8.0 | EC002498 |
| ETIM 9.0 | EC002498 |
| ECLASS 9.0 | 27-37-92-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-37-13-92 |
| ECLASS 11.0 | 27-37-13-92 |
| ECLASS 12.0 | 27-37-13-92 |
| ECLASS 13.0 | 27-37-13-92 |
| ECLASS 14.0 | 27-37-13-92 |
| ROHS | Uppfyllelse |
