RSS113024Y
Product image
Similar to illustration
RSS113024Y
Wiring diagram
View of Pins from below
RSS113024Y

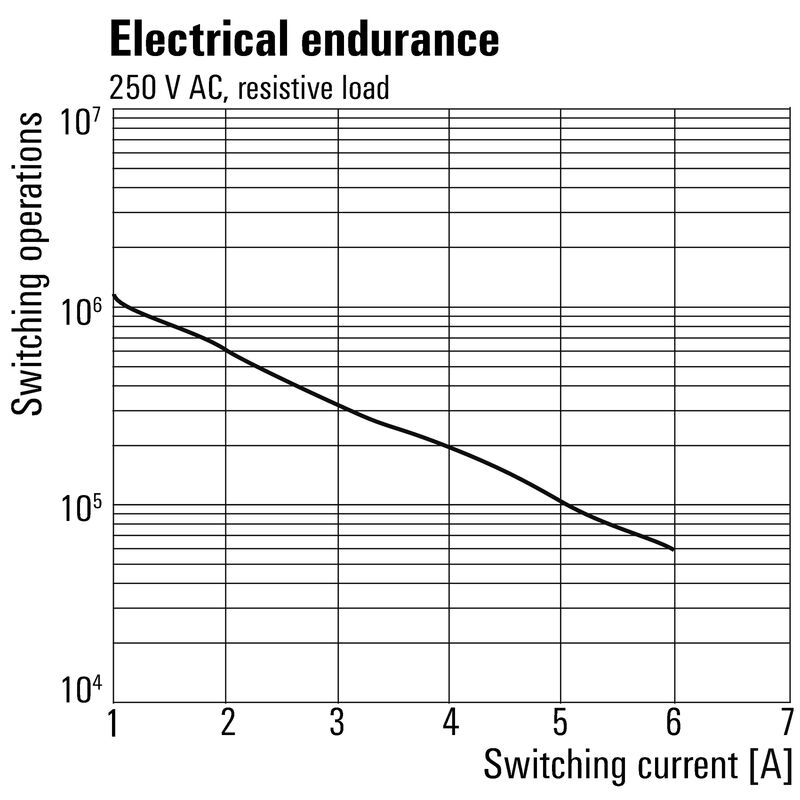

Graph
DC load limit curve
Resistive load
RSS113024Y
RSS113024Y
Dimensional drawing

RSS113024Y

TERMSERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 6 A, Plug-in connection, Test button available: No

Tuotteen tunnus 2851640000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 4 Vastineet 4 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Strana zátěže General data Szigetelések koordinálása Further details of approvals / standards Connection data Klasifikace

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Konform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E522350

General ordering data

Version
TERMSERIES, Relay, Number of contacts: 1, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 6 A, Plug-in connection, Test button available: No
Order No.
2851640000
Type
RSS113024Y
GTIN (EAN)
4064675470038
Qty.
20 items

Dimensions and weights

Depth
15 mm
Depth (inches)
0,591 inch
Height
28 mm
Výška (v palcích)
1,102 inch
Width
5 mm
Width (inches)
0,197 inch
Net weight
5,808 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…85 °C
Humidity
5-85% relative humidity, Tu = 40°C, without condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Keine SVHC über 0,1 Gew.-%

Rated data UL

Certificate No. (cURus)
E522350

Control side

Rated control voltage
24 V DC
Rated current DC
7.1 mA
Power rating
170 mW
Coil resistance
3390 Ω ± 10 %
Status indicator
No

Strana zátěže

Rated switching voltage
250 V AC
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Potencia de conexión mínima
100 mA @ 12 V
Inrush current
20 A / 20 ms
AC switching capacity (resistive), max.
1500 VA
Obciążalność przy napięciu stałym (obciążenie rezystancyjne), maks.
144 W @ 24 V
Switch-on delay
<13 ms
Switch-off delay
approx. 5 ms
Contact type
1 CO contact (AgNi)
Mechanical service life
10 x 106 switching cycles

General data

Test button available
No
Mechanical switch position indicator
No
Färgkod
white

Szigetelések koordinálása

Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
4 kVeff / 1 Min.
Dielectric strength of open contact
1 kVeff / 1 min

Further details of approvals / standards

Certificate No. (VDE)
40054910
Certificate No. (cURus)
E522350

Connection data

Wire connection method
Plug-in connection

Klasifikace

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
