SAIE-M12S-PB-0.5U HW
SAIE-M12S-PB-0.5U HW
Dimensioned drawing
SAIE-M12S-PB-0.5U HW
Detailed drawing
SAIE-M12S-PB-0.5U HW

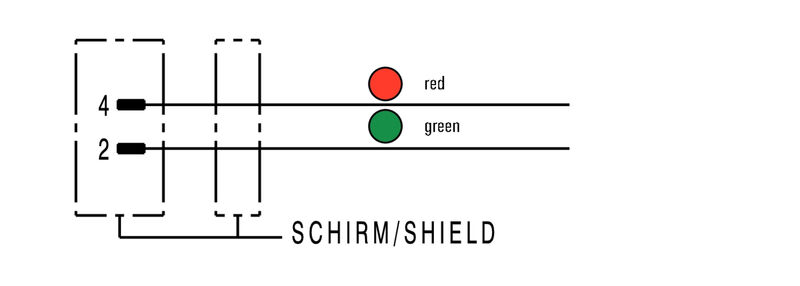

Wiring diagram

SAIE-M12S-PB-0.5U HW

Built-in plugs, M12, pin, straight, PG 9, Number of poles: 2, 0.5 m

Ürün No. 1279490050
Veri sayfasını indir Product Downloads
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable Technical data customisable plug-in connectors Classifications

Approvals

ROHS
Conform

General ordering data

Version
Built-in plugs, M12, pin, straight, PG 9, Number of poles: 2, 0.5 m
Order No.
1279490050
Type
SAIE-M12S-PB-0.5U HW
GTIN (EAN)
4050118076400
Qty.
1 adet

Dimensions and weights

Net weight
40,48 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Core cross-section
0,25 mm²
Core cross-section AWG
AWG 24
Kabellängd
0,5 m
Mantelfärg
violet (similar to RAL 4001)
Number of poles
2
PE-Funktion
No
Strand / cable length
0,5 m

Technical data customisable plug-in connectors

Codifica
B-coded
Podstawowy materiał obudowy
Zinc diecast
nickel-plated
Przekrój przyłącza przewodu, maks.
0,25 mm²
Temperaturområde kapsling
-20 … +60 °C
Érintkező felület
Gold-plated
Вид защиты
IP68
Кабельный ввод
PG 9
Номинальное напряжение
250 V
Номинальный ток
4 A
Степень загрязнения
3
Циклы коммутации
≥ 500
極数
2
결선 유형
Pin

Classifications

ETIM 8.0
EC003570
ETIM 9.0
EC003570
ETIM 10.0
EC003570
ECLASS 14.0
27-44-01-03
ECLASS 15.0
27-44-01-03
