AAP12 10 LO DL OR

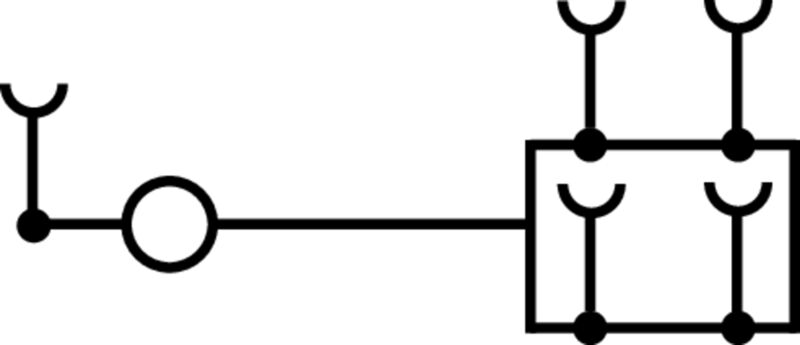

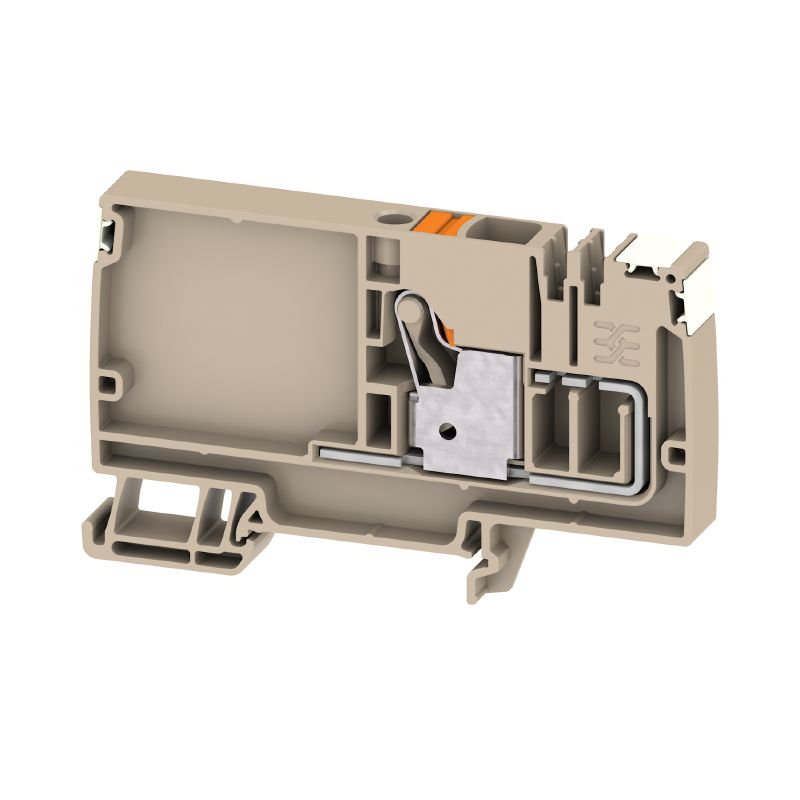

Supply terminal, PUSH IN, 10 mm², 800 V, 57 A, dark beige

Ürün No. 2675430000

Özellikler

General ordering data

Version	Supply terminal, PUSH IN, 10 mm², 800 V, 57 A, dark beige
Order No.	2675430000
Type	AAP12 10 LO DL OR
GTIN (EAN)	4050118733624
Qty.	20 adet

Dimensions and weights

Depth	53,5 mm
Depth (inches)	2,106 inch
Depth including DIN rail	54 mm
Height	89 mm
Height (inches)	3,504 inch
Width	10 mm
Width (inches)	0,394 inch
Net weight	24,03 g

Temperatures

Storage temperature	-25 °C...55 °C
Continuous operating temp., min.	-60 °C
Continuous operating temp., max.	130 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Material	Wemid
Colour	dark beige
UL 94 flammability rating	V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)	TUEV17ATEX8030U
Certificate No. (IECEX)	IECEXTUR17.0015U
Max. voltage (ATEX)	690 V
Current (ATEX)	45 A
Wire cross section max. (ATEX)	10 mm²
Max. voltage (IECEX)	690 V
Current (IECEX)	45 A
Wire cross section max. (IECEX)	10 mm²
Marking EN 60079-7	Ex ec II C Gc
Ex 2014/34/EU label	II 2 G D

System specifications

End cover plate required	Yes
Number of potentials	1
Number of levels	1
Number of clamping points per level	1
Number of potentials per tier	1
Levels cross-connected internally	No
Rail	TS 35
N-function	No
PE function	No
PEN function	No

Additional technical data

Explosion-tested version	Yes
Open sides	right
Snap-on	Yes
Type of mounting	TS 35

Conductors for clamping (additional connection)

Connection type, additional connection

PUSH IN

Conductors for clamping (rated connection)

Blade size	1.0 x 5.5 mm
Clamping range, max.	16 mm²
Clamping range, min.	0,5 mm²
Connection cross-section, stranded, max.	16 mm²
Connection cross-section, stranded, min.	0,5 mm²
Gauge to IEC 60947-1	A6
Number of connections	1
Stripping length	18 mm
Tube length for twin wire-end ferrule	Tube length: nominal: 18 mm Cross-section for conductor connection: min.: 0,75 mm² max.: 1 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 1,5 mm² max.: 4 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4	Tube length: min.: 18 mm Cross-section for conductor connection: min.: 1,5 mm² max.: 4 mm² Tube length: min.: 12 mm max.: 18 mm Cross-section for conductor connection: min.: 6 mm² max.: 10 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1	Tube length: nominal: 18 mm Cross-section for conductor connection: min.: 1,5 mm² max.: 10 mm²
Twin wire-end ferrules, max.	4 mm²
Twin wire-end ferrules, min.	0,5 mm²
Type of connection	PUSH IN
Type of connection 2	PUSH IN
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 20
Wire connection cross section, finely stranded, max.	10 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0,5 mm²
Wire connection cross-section, solid core, max.	10 mm²
Wire connection cross-section, solid core, min.	0,5 mm²

General

Number of poles	1
Rail	TS 35
Standards	In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.	AWG 6
Wire connection cross section AWG, min.	AWG 20

Rating data

Rated cross-section	10 mm²
Rated voltage	800 V
Rated AC voltage	800 V
Rated DC voltage	800 V
Rated current	57 A
Current at maximum wires	57 A
Standards	In accordance with IEC 60947-7-1
Volume resistance according to IEC 60947-7-x	0,56 mΩ
Rated impulse withstand voltage	8 kV
Power loss in accordance with IEC 60947-7-x	1,82 W
Pollution severity	3
Surge voltage category	III
