Özellikler

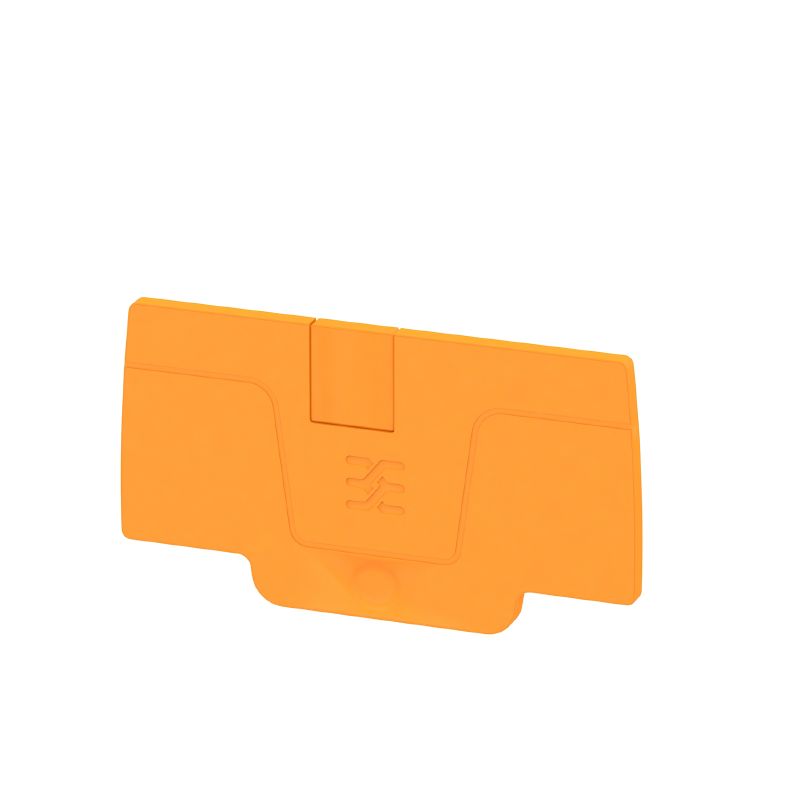

| Version | A-series, End plate |
| Order No. | 2051710000 |
| Type | AEP 2C 4 OR |
| GTIN (EAN) | 4050118411690 |
| Qty. | 50 adet |
| Depth | 32,35 mm |
| Depth (inches) | 1,274 inch |
| Height | 58 mm |
| Height (inches) | 2,283 inch |
| Width | 2,1 mm |
| Width (inches) | 0,083 inch |
| Net weight | 2,1 g |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Wemid |
| Colour | orange |
| UL 94 flammability rating | V-0 |
| Version | End plate |
| Snap-on | Yes |
| With snap-in pegs | Yes |
| Approval/Certificate/Document of Conformity | [Confirmation of Standards EN 45545-2_2020-10](https://mdcop.weidmueller.com/mediadelivery/asset/900_308425) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65850) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2051710000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2051710000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2051710000&norm=0) |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000886 |
| ETIM 7.0 | EC000886 |
| ETIM 8.0 | EC000886 |
| ETIM 9.0 | EC000886 |
| ECLASS 9.1 | 27-14-11-33 |
| ECLASS 10.0 | 27-14-11-33 |
| ECLASS 11.0 | 27-14-11-33 |
| ECLASS 12.0 | 27-14-11-33 |
| ECLASS 13.0 | 27-25-03-01 |
| ECLASS 14.0 | 27-25-03-01 |
| ROHS | Conform |
aksesuarıdır
-
Ürün No.:2799170000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, orange
-
Ürün No.:2799180000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, orange
-
Ürün No.:2674790000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, blue
-
Ürün No.:2674780000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:2676020000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:2676030000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, blue
-
Ürün No.:2675960000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:2676010000Ambalaj birimi:50 adet
PE terminal, PUSH IN, 4 mm², 800 V, 32 A, Green/yellow
-
Ürün No.:2676040000Ambalaj birimi:50 adet
PE terminal, PUSH IN, 4 mm², 800 V, 32 A, Green/yellow
-
Ürün No.:2676000000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, blue
-
Ürün No.:2675970000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, blue
-
Ürün No.:2675980000Ambalaj birimi:50 adet
PE terminal, PUSH IN, 4 mm², 800 V, 32 A, Green/yellow
-
Ürün No.:2675990000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, dark beige
-
-
Ürün No.:2676080000Ambalaj birimi:50 adet
PE terminal, PUSH IN, 4 mm², 800 V, 32 A, Green/yellow
-
Ürün No.:2540180000Ambalaj birimi:50 adet
PE terminal, PUSH IN, pluggable, 4 mm², 800 V, Green/yellow
-
Ürün No.:2540050000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:2540060000Ambalaj birimi:100 adet
Feed-through terminal, Plug-in connection, PUSH IN, 4 mm², 800 V, 32 A, blue
-
Ürün No.:2540090000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, Plug-in connection, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:2540100000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, blue
-
Ürün No.:2540170000Ambalaj birimi:50 adet
PE terminal, PUSH IN, pluggable, 4 mm², 800 V, Green/yellow
-
Ürün No.:2540110000Ambalaj birimi:50 adet
PE terminal, pluggable, PUSH IN, 4 mm², 800 V, Green/yellow
-
Ürün No.:2540300000Ambalaj birimi:50 adet
PE terminal, PUSH IN, pluggable, 4 mm², 800 V, Green/yellow
-
-
Ürün No.:2734150000Ambalaj birimi:50 adet
Feed-through terminal, PUSH IN, 4 mm², white
-
Ürün No.:2051230000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, orange
-
Ürün No.:2051290000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, white
-
Ürün No.:2051180000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, dark beige
-
Ürün No.:2534370000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, brown
-
Ürün No.:2051260000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, green
-
Ürün No.:2051210000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, blue
-
Ürün No.:2051250000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, yellow
-
Ürün No.:2051310000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, black
-
Ürün No.:2051220000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, red
-
Ürün No.:2534380000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, Dark Blue
-
Ürün No.:2051330000Ambalaj birimi:100 adet
Feed-through terminal, PUSH IN, 4 mm², 800 V, 32 A, Light Grey
