Özellikler

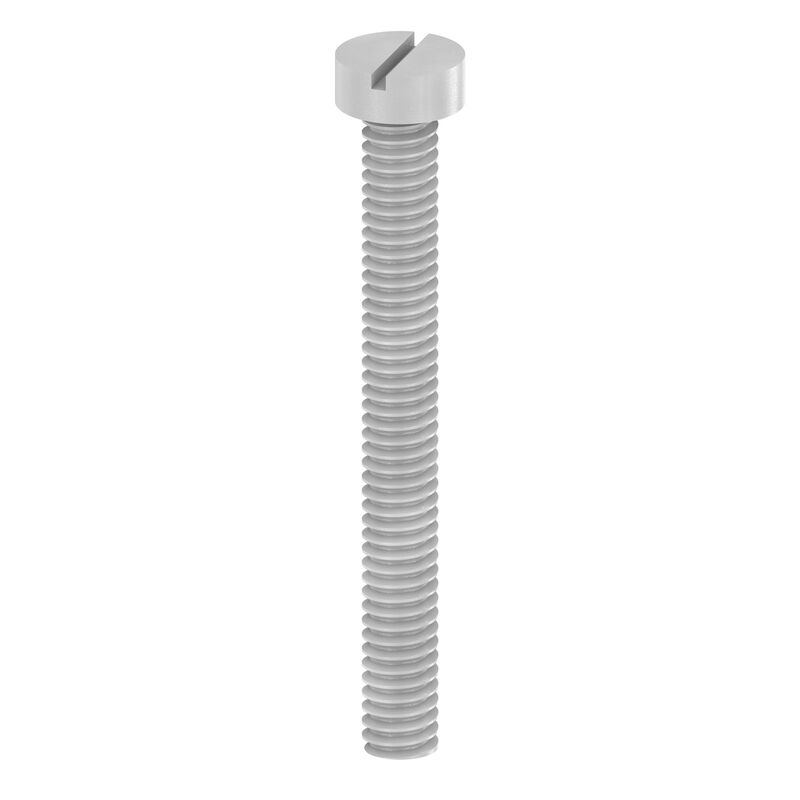

| Version | Mounting screw (Terminal), 5.00 mm, Steel, Depth: 8.5 mm, Width: 8.5 mm, Height: 45 mm |
| Order No. | 0345600000 |
| Type | BFSC M5X45 |
| GTIN (EAN) | 4008190058739 |
| Qty. | 20 adet |
| Depth | 8,5 mm |
| Depth (inches) | 0,335 inch |
| Height | 45 mm |
| Height (inches) | 1,772 inch |
| Width | 8,5 mm |
| Width (inches) | 0,335 inch |
| Diameter | 5 mm |
| Net weight | 5,81 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Material | Steel |
| Colour | silver |
| Version | for cross-connection link |
| Explosion-tested version | No |
| Installation advice | Direct mounting |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Diameter | 5 mm |
| Metric size of the thread, external | 5 mm |
| Installation advice | Direct mounting |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_59043) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0345600000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0345600000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-90 |
| ECLASS 14.0 | 27-25-03-90 |
| ROHS | Conform |
Aksesuarlar
Terminal BlocksAccessoriesMounting supportMiscellaneous
aksesuarıdır
-
Ürün No.:0167000000Ambalaj birimi:5 adet
Cross-connector (terminal), when screwed in, grey, 180 A, Number of poles: 3, Pitch in mm (P): 14.00, Insulated: No, Width: 58 mm
-
Ürün No.:0345300000Ambalaj birimi:20 adet
Cross-connector (terminal), when screwed in, grey, 180 A, Number of poles: 2, Pitch in mm (P): 14.00, Insulated: No, Width: 36 mm
