Özellikler

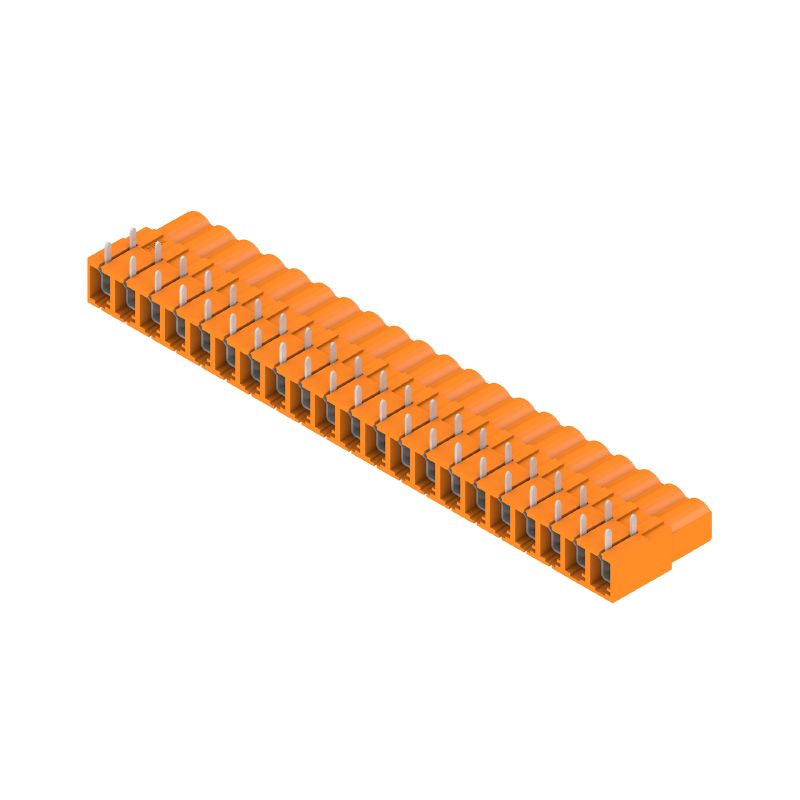

| Version | PCB plug-in connector, female header, closed side, THT solder connection, 5.08 mm, Number of poles: 21, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box |
| Order No. | 1648500000 |
| Type | BLL 5.08/21/90 3.2 SN OR BX |
| GTIN (EAN) | 4008190292973 |
| Qty. | 12 adet |
| Product data |
IEC: 400 V / 23 A UL: 300 V / 15 A |
| Packaging | Box |
| Net weight | 19,74 g |
| REACH SVHC | / |
| Product family | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection | Board connection |
| Mounting onto the PCB | THT solder connection |
| Pitch in mm (P) | 5,08 mm |
| Pitch in inches (P) | 0,2 " |
| Outgoing elbow | 90° |
| Number of poles | 21 |
| Number of solder pins per pole | 2 |
| Solder pin length (l) | 3,2 mm |
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Solder pin dimensions | 0.4 x 1.00 mm |
| Solder eyelet hole diameter (D) | 1,3 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| L1 in mm | 101,6 mm |
| L1 in inches | 4 " |
| Number of rows | 1 |
| Pin series quantity | 1 |
| Touch-safe protection acc. to DIN VDE 57 106 | Safe from back-of-hand touch |
| Touch-safe protection acc. to DIN VDE 0470 | IP20 plugged |
| Protection degree | IP20 |
| Volume resistance | ≤5 mΩ |
| Can be coded | Yes |
| Plugging cycles | 25 |
| Plugging force/pole, max. | 5 N |
| Pulling force/pole, max. | 5 N |
| Insulating material | PBT GF |
| Colour | orange |
| Colour chart (similar) | RAL 2000 |
| Insulating material group | IIIa |
| Comparative Tracking Index (CTI) | ≥ 200 |
| Insulation strength | 108 Ω |
| UL 94 flammability rating | V-0 |
| Contact material | Copper alloy |
| Contact surface | tinned |
| Layer structure of solder connection | 4...6 µm Sn hot-dip tinned |
| Layer structure of plug contact | 4...6 µm Sn hot-dip tinned |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 100 °C |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Rated current, min. number of poles (Tu=20°C) | 23 A |
| Rated current, max. number of poles (Tu=20°C) | 16 A |
| Rated current, min. number of poles (Tu=40°C) | 20 A |
| Rated current, max. number of poles (Tu=40°C) | 14 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 V |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| Institute (CSA) | CSA |
| Certificate No. (CSA) | 200039-1121690 |
| Rated voltage (Use group B / CSA) | 300 V |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group B / CSA) | 15 A |
| Rated current (Use group D / CSA) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Institute (UR) | UR |
| Certificate No. (UR) | E60693 |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 15 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Packaging | Box |
| VPE length | 131 mm |
| VPE width | 121 mm |
| VPE height | 48 mm |
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
