CAN SUB-D SK35 TERM

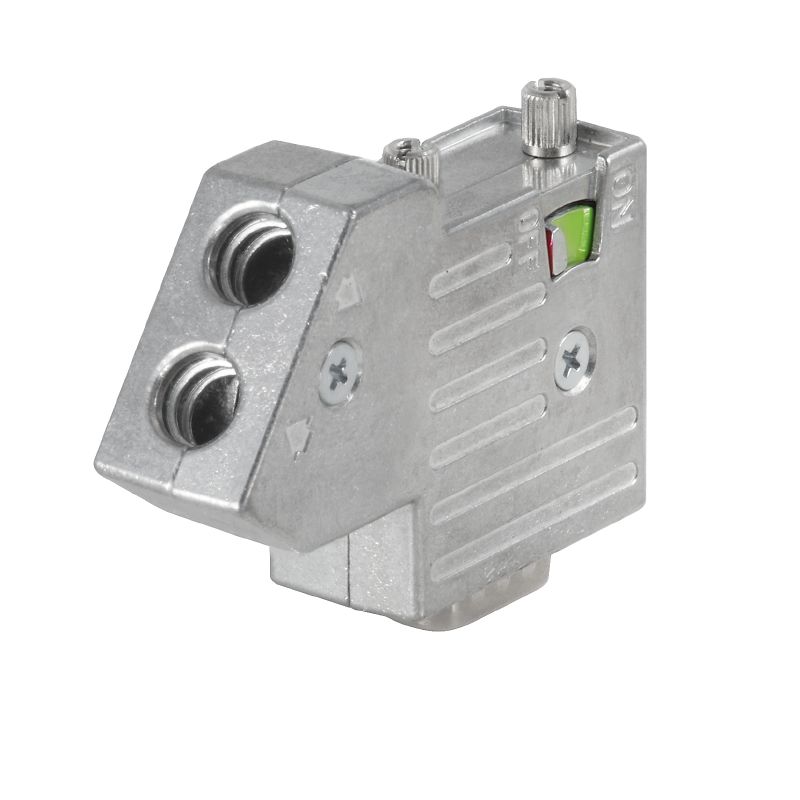

Similar to illustration

CAN SUB-D SK35 TERM

SUB-D

Ürün No. 1550600000
Veri sayfasını indir
İlgili ürünler 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for sub-D connector Classifications

Approvals

ROHS
Conform

General ordering data

Utförande
SUB-D
Order No.
1550600000
Typ
CAN SUB-D SK35 TERM
GTIN (EAN)
4050118357073
Qty.
1 adet

Dimensions and weights

Глубина
16,8 mm
Depth (inches)
0,661 inch
Height
64,8 mm
Height (inches)
2,551 inch
Bredd
46 mm
Width (inches)
1,811 inch
Net weight
88 g

Temperatures

Humidity
Max. 75% at +25°C, non-condensing

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6aI
REACH SVHC
Lead 7439-92-1
SCIP
3cc1d9b1-0f2a-47ed-a501-ddcfcfaaf625

Technical specifications for sub-D connector

Angulo de salida
35°
Anzugsdrehmoment
0,3 Nm
Bloccaggio
UNC4-40
BUS, cable interface
Screw connection
Data rate
1 Mbps
Housing main material
ZnAl
Humidity
Max. 75% at +25°C, non-condensing
Plugging cycles
≥ 200
PROFIBUS interfész
D-Sub 9-pole
Socket
Programming interface
No
Protection degree
IP30
Terminating resistor available
Yes
하우징의 온도 범위
-20...+70 ° C

Classifications

ETIM 8.0
EC001132
ETIM 9.0
EC001132
ETIM 10.0
EC001132
ECLASS 14.0
27-44-03-02
ECLASS 15.0
27-44-03-22
