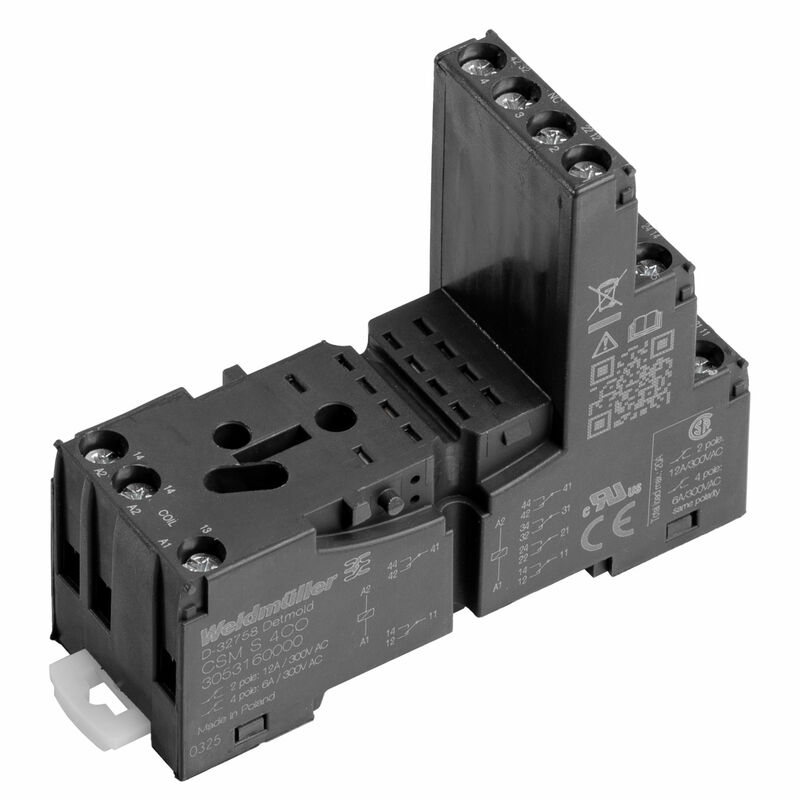

CSM S 4CO

CUBESERIES, Relay socket, Number of contacts: 4, CO contact, Continuous current: 6 A, Screw connection

Ürün No. 3053160000

Özellikler

General ordering data

Version	CUBESERIES, Relay socket, Number of contacts: 4, CO contact, Continuous current: 6 A, Screw connection
Order No.	3053160000
Type	CSM S 4CO
GTIN (EAN)	4099987022989
Qty.	10 adet

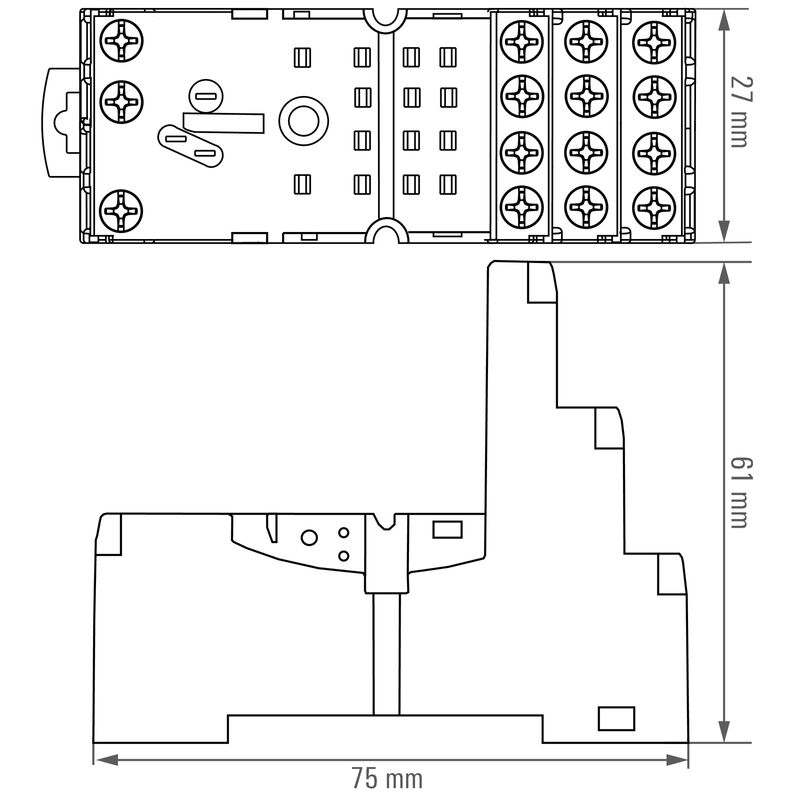

Dimensions and weights

Depth	61 mm
Depth (inches)	2,402 inch
Height	75 mm
Height (inches)	2,953 inch
Width	27 mm
Width (inches)	1,063 inch
Net weight	0 g

Temperatures

Operating temperature

-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Rated data UL

Certificate No. (cURus)

E223759

Control side

Status indicator

Load side

Continuous current	12 A @ 2 CO; 6 A @ 4 CO
Max. switching voltage, AC	300 V

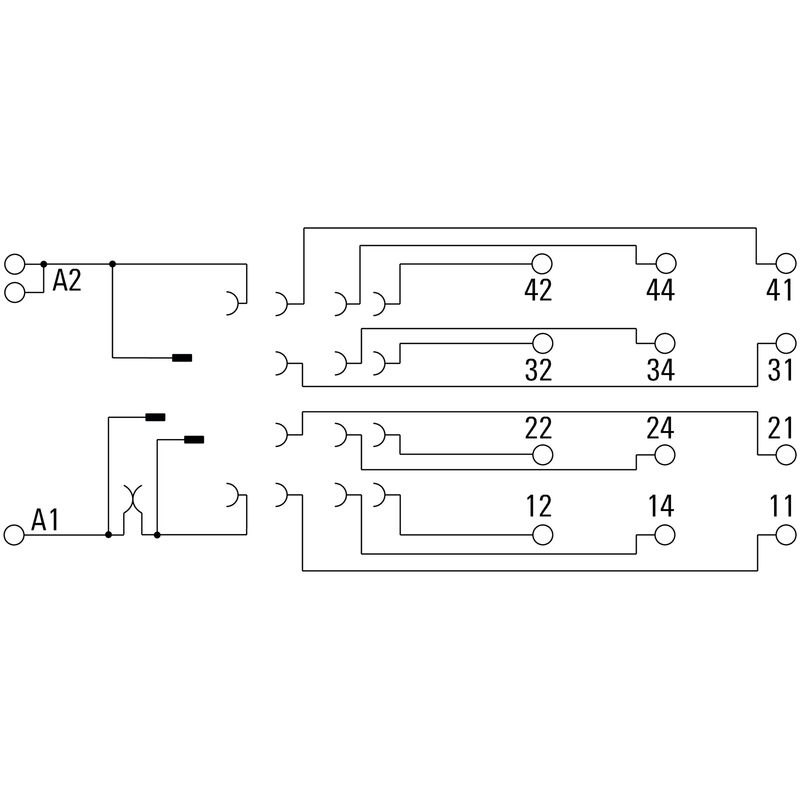

Contact type	4 CO contact

General data

Operating altitude	≤ 2000 m above sea level
Rail	TS 35
Colour	black
UL 94 flammability rating	V-0
UL94 flammability rating component	Component: Socket UL94 flammability rating: V-0

Insulation coordination

Surge voltage category	II
Dielectric strength for control side - load side	4 kV_eff / 1 Min.
Dielectric strength of neighbouring contacts	3 KV_eff / 1 Min.
Dielectric strength to mounting rail	4 kV_eff / 1 Min.
Impulse withstand voltage	3 kV
Protection degree	IP20

Further details of approvals / standards

Certificate No. (CSA)	607178-80219312
Certificate No. (cURus)	E223759

Connection data

Wire connection method	Screw connection
Tightening torque, min.	0,7 Nm
Clamping range, rated connection	1,5 mm²
Clamping range, max.	1,5 mm²
Wire cross-section, solid, min.	0,5 mm²
Wire cross-section, solid, min. (AWG)	AWG 20
Wire cross-section, solid, max. (AWG)	AWG 16
Wire connection cross section, finely stranded, max.	1,5 mm²
Wire cross-section, finely stranded, min. (AWG)	AWG 24
Wire cross-section, finely stranded, max. (AWG)	AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1 mm²

Downloads

Approval/Certificate/Document of Conformity	[EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_322367)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_321237)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001456
ETIM 7.0	EC001456
ETIM 8.0	EC001456
ETIM 9.0	EC001456
ECLASS 9.0	27-37-16-03
ECLASS 9.1	27-37-16-03
ECLASS 10.0	27-37-16-03
ECLASS 11.0	27-37-16-03
ECLASS 12.0	27-37-16-03
ECLASS 13.0	27-37-16-03
ECLASS 14.0	27-37-16-03

Approvals

Approvals	![CE](/picture/CE.gif) ![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (cURus)	E223759

Aksesuarlar

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRI miniature industrial relay modules (16mm width)LED / protection modulesProtection modules

CXX RC 52

Ürün No.:

3053390000

Ambalaj birimi:

20 adet

CUBESERIES, RC element, Rated control voltage: 24…60 V UC, Plug-in connection

Veri sayfası İndirilenler

CXX RC 53

Ürün No.:

3053400000

Ambalaj birimi:

20 adet

CUBESERIES, RC element, Rated control voltage: 110…230 V AC, Plug-in connection

Veri sayfası İndirilenler

CXX RC 51

Ürün No.:

3053370000

Ambalaj birimi:

20 adet

CUBESERIES, RC element, Rated control voltage: 6…24 V UC, Plug-in connection

Veri sayfası İndirilenler

CXX D 21N

Ürün No.:

3053270000

Ambalaj birimi:

20 adet

CUBESERIES, Free-wheeling diode, Rated control voltage: 6…230 V DC, Plug-in connection

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)LED / protection modulesLED and free-wheeling diode

CXX LD 42R

Ürün No.:

3053320000

Ambalaj birimi:

20 adet

CUBESERIES, LED module with freewheel diode, Rated control voltage: 24…60 V DC, Plug-in connection

Veri sayfası İndirilenler

CXX LD 42G

Ürün No.:

3053340000

Ambalaj birimi:

20 adet

CUBESERIES, LED module with freewheel diode, Rated control voltage: 24…60 V DC, Plug-in connection

Veri sayfası İndirilenler

CXX LD 41R

Ürün No.:

3053290000

Ambalaj birimi:

20 adet

CUBESERIES, LED module with freewheel diode, Rated control voltage: 6…24 V DC, Plug-in connection

Veri sayfası İndirilenler

CXX LD 43R

Ürün No.:

3053350000

Ambalaj birimi:

20 adet

CUBESERIES, LED module with freewheel diode, Rated control voltage: 110…230 V DC, Plug-in connection

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRI miniature industrial relay modules (16mm width)LED / protection modulesLED

CXX L 61G

Ürün No.:

3053420000

Ambalaj birimi:

20 adet

CUBESERIES, LED module, Rated control voltage: 6…24 V UC, Plug-in connection

Veri sayfası İndirilenler

CXX L 63G

Ürün No.:

3053460000

Ambalaj birimi:

20 adet

CUBESERIES, LED module, Rated control voltage: 110…230 V UC, Plug-in connection

Veri sayfası İndirilenler

CXX L 63R

Ürün No.:

3053450000

Ambalaj birimi:

20 adet

CUBESERIES, LED module, Rated control voltage: 110…230 V UC, Plug-in connection

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRI miniature industrial relay modules (16mm width)LED / protection modulesLED and free-wheel diode

CXX LD 41G

Ürün No.:

3053310000

Ambalaj birimi:

20 adet

CUBESERIES, LED module with freewheel diode, Rated control voltage: 6…24 V DC, Plug-in connection

Veri sayfası İndirilenler

CXX LD 43G

Ürün No.:

3053360000

Ambalaj birimi:

20 adet

CUBESERIES, LED module with freewheel diode, Rated control voltage: 110…230 V DC, Plug-in connection

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)LED / protection modulesLED

CXX L 61R

Ürün No.:

3053410000

Ambalaj birimi:

20 adet

CUBESERIES, LED module, Rated control voltage: 6…24 V UC, Plug-in connection

Veri sayfası İndirilenler

CXX L 62R

Ürün No.:

3053430000

Ambalaj birimi:

20 adet

CUBESERIES, LED module, Rated control voltage: 24…60 V UC, Plug-in connection

Veri sayfası İndirilenler

CXX L 62G

Ürün No.:

3053440000

Ambalaj birimi:

20 adet

CUBESERIES, LED module, Rated control voltage: 24…60 V UC, Plug-in connection

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Cross-connections

CXM CCS 6P GY

Ürün No.:

3053180000

Ambalaj birimi:

2 adet

CUBESERIES, Cross-connector

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Retaining clips

CXM CLIP P

Ürün No.:

3053240000

Ambalaj birimi:

10 adet

CUBESERIES, Retaining clip

Veri sayfası İndirilenler

CXM CLIP M

Ürün No.:

3053190000

Ambalaj birimi:

25 adet

CUBESERIES, Retaining clip

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)LED / protection modulesProtection modules

CXX V 71

Ürün No.:

3053470000

Ambalaj birimi:

20 adet

CUBESERIES, Protective varistor, Rated control voltage: 6…24 V AC, Plug-in connection

Veri sayfası İndirilenler

CXX V 72

Ürün No.:

3053480000

Ambalaj birimi:

20 adet

CUBESERIES, Protective varistor, Rated control voltage: 24…60 V AC, Plug-in connection

Veri sayfası İndirilenler

CXX V 73

Ürün No.:

3053490000

Ambalaj birimi:

20 adet

CUBESERIES, Protective varistor, Rated control voltage: 110…230 V AC, Plug-in connection

Veri sayfası İndirilenler

aksesuarıdır

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsStandard relay

CRM20048

Ürün No.:

3052740000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20524

Ürün No.:

3052760000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20730

Ürün No.:

3052780000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20615

Ürün No.:

3052770000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20110

Ürün No.:

3052750000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20012

Ürün No.:

3052720000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20024

Ürün No.:

3052730000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsStandard relay

CRM40615

Ürün No.:

3052980000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40730

Ürün No.:

3052990000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40048

Ürün No.:

3052950000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40110

Ürün No.:

3052960000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40024

Ürün No.:

3052940000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40012

Ürün No.:

3052930000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40524

Ürün No.:

3052970000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsWith test button

CRM40110T

Ürün No.:

3053030000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40048T

Ürün No.:

3053020000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40524T

Ürün No.:

3053040000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40012T

Ürün No.:

3053000000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40024T

Ürün No.:

3053010000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40615T

Ürün No.:

3053050000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40730T

Ürün No.:

3053060000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsWith test button

CRM20730T

Ürün No.:

3052850000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20048T

Ürün No.:

3052810000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20524T

Ürün No.:

3052830000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20012T

Ürün No.:

3052790000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20615T

Ürün No.:

3052840000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20024T

Ürün No.:

3052800000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20110T

Ürün No.:

3052820000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsWith test button, LED and diode

CRM20024TLD

Ürün No.:

3052870000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20012TLD

Ürün No.:

3052860000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20110TLD

Ürün No.:

3052890000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20048TLD

Ürün No.:

3052880000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsWith test button and LED

CRM20524TL

Ürün No.:

3052900000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20730TL

Ürün No.:

3052920000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20615TL

Ürün No.:

3052910000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsWith test button and LED

CRM40615TL

Ürün No.:

3053120000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40524TL

Ürün No.:

3053110000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40730TL

Ürün No.:

3053130000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsWith test button, LED and diode

CRM40048TLD

Ürün No.:

3053090000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40024TLD

Ürün No.:

3053080000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40110TLD

Ürün No.:

3053100000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40012TLD

Ürün No.:

3053070000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Şunun karşı parçasıdır

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsWith test button

CRM20048T

Ürün No.:

3052810000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20524T

Ürün No.:

3052830000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20012T

Ürün No.:

3052790000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20615T

Ürün No.:

3052840000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20024T

Ürün No.:

3052800000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20110T

Ürün No.:

3052820000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20730T

Ürün No.:

3052850000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsStandard relay

CRM20012

Ürün No.:

3052720000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20615

Ürün No.:

3052770000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20110

Ürün No.:

3052750000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20024

Ürün No.:

3052730000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20730

Ürün No.:

3052780000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20524

Ürün No.:

3052760000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM20048

Ürün No.:

3052740000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 12 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsStandard relay

CRM40730

Ürün No.:

3052990000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40024

Ürün No.:

3052940000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40048

Ürün No.:

3052950000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40524

Ürün No.:

3052970000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40615

Ürün No.:

3052980000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40110

Ürün No.:

3052960000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

CRM40012

Ürün No.:

3052930000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 7 A, Plug-in connection, Test button available: No

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsWith test button, LED and diode

CRM40048TLD

Ürün No.:

3053090000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40012TLD

Ürün No.:

3053070000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40110TLD

Ürün No.:

3053100000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40024TLD

Ürün No.:

3053080000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsWith test button and LED

CRM20730TL

Ürün No.:

3052920000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20524TL

Ürün No.:

3052900000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20615TL

Ürün No.:

3052910000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsWith test button

CRM40615T

Ürün No.:

3053050000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40110T

Ürün No.:

3053030000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40048T

Ürün No.:

3053020000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40012T

Ürün No.:

3053000000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40524T

Ürün No.:

3053040000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40730T

Ürün No.:

3053060000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40024T

Ürün No.:

3053010000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays2 CO contactsWith test button, LED and diode

CRM20048TLD

Ürün No.:

3052880000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 48 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20012TLD

Ürün No.:

3052860000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 12 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20110TLD

Ürün No.:

3052890000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 110 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM20024TLD

Ürün No.:

3052870000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 12 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Relay Modules & Solid-State RelaysUniversal rangeCUBESERIESCRM miniature industrial relay modules (from 27mm width)Individual relays4 CO contactsWith test button and LED

CRM40524TL

Ürün No.:

3053110000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 24 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40730TL

Ürün No.:

3053130000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 230 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

CRM40615TL

Ürün No.:

3053120000

Ambalaj birimi:

10 adet

CUBESERIES, Relay, Number of contacts: 4, CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 7 A, Plug-in connection, Test button available: Yes

Veri sayfası İndirilenler

Popüler kategoriler

İlginç bağlantılar

Çözümler

Connectivity

Electronics

Automation & Software

Workplace & Accessories

Assembly

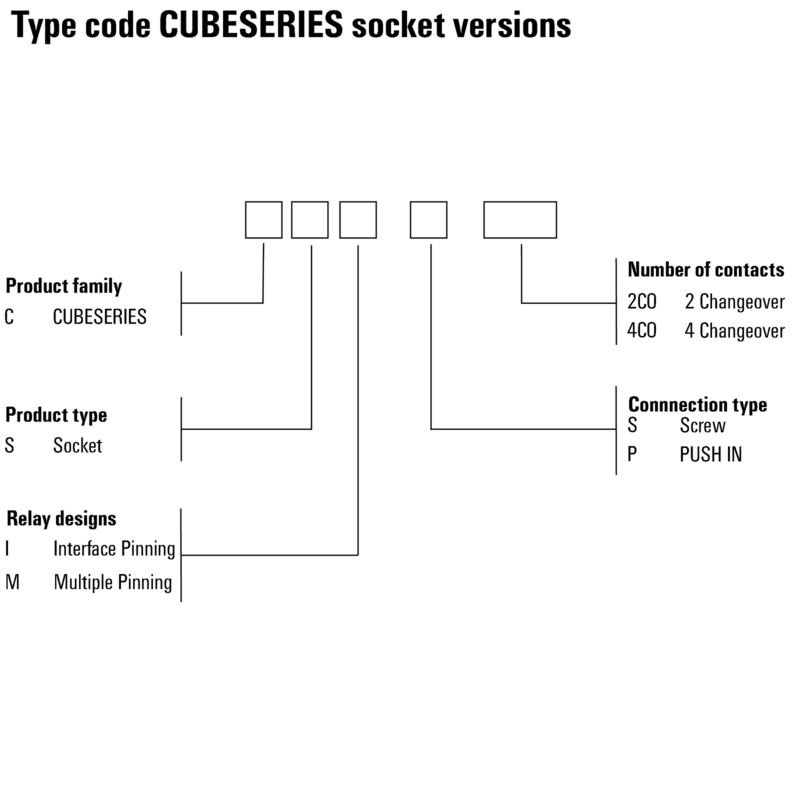

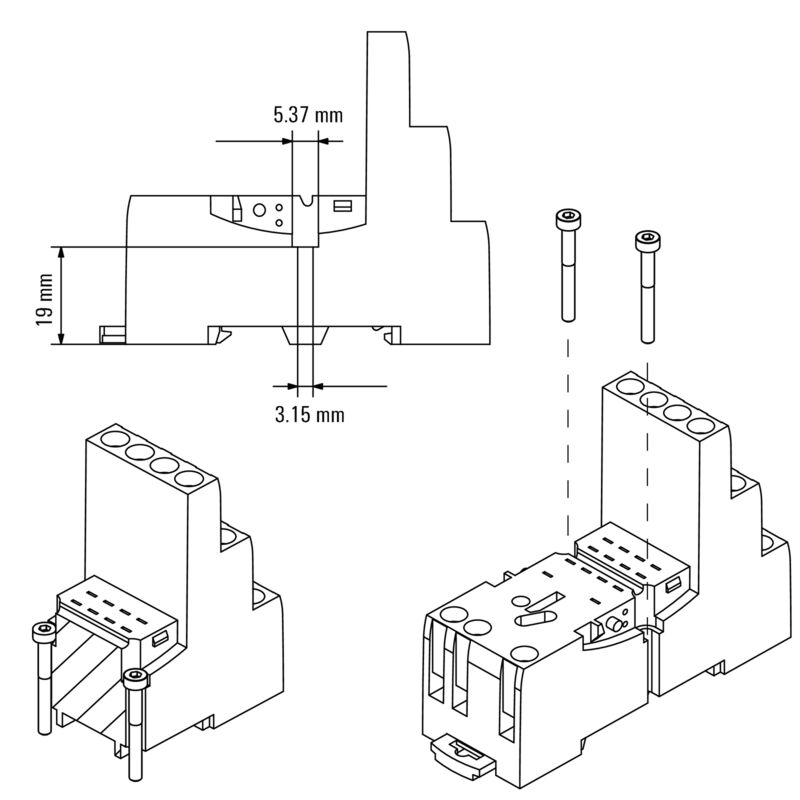

CSM S 4CO

Özellikler

Aksesuarlar

aksesuarıdır

Şunun karşı parçasıdır
