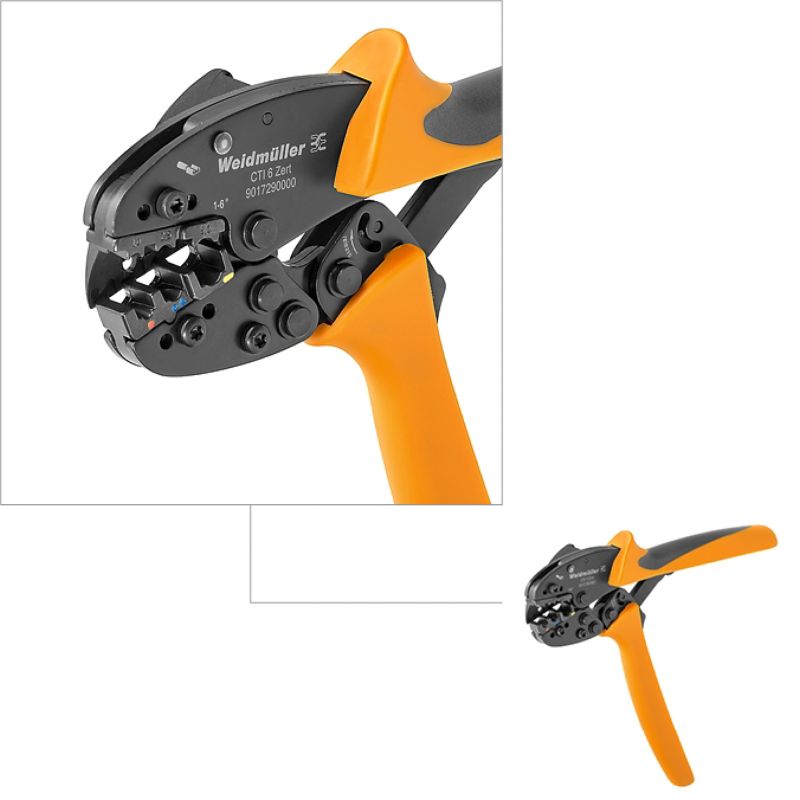

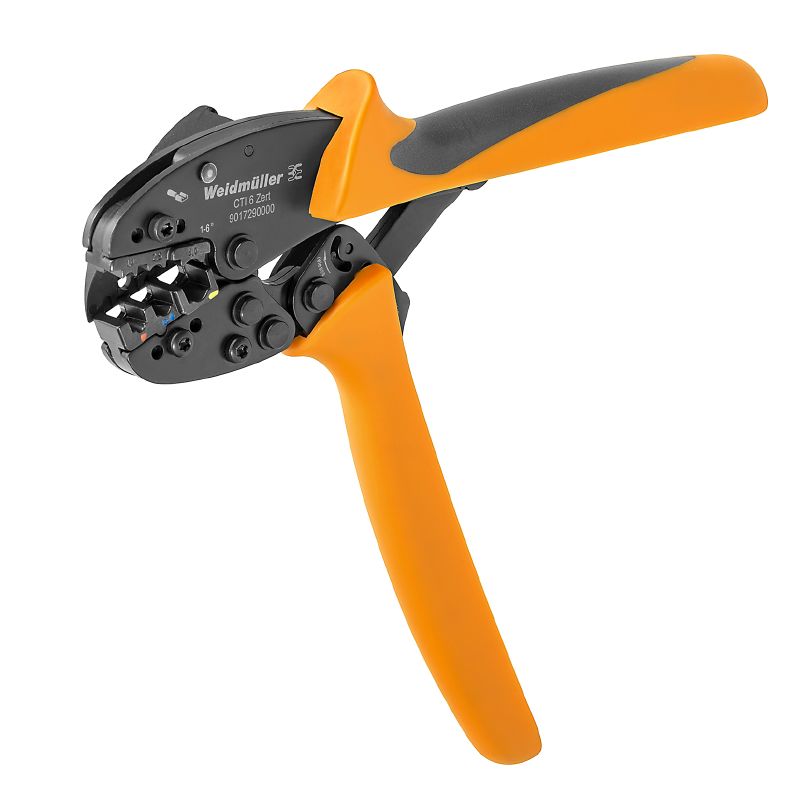

Pressing tool, Crimping tool for contacts, 0.5mm², 6mm², Double crimp, Oval crimping

Ürün No. 9017290000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 1 Yedek parçalar 1 İlgili ürünler 3
General ordering data Dimensions and weights Environmental Product Compliance Technical data Descrizione contatto tool data crimping Important note Classifications

General ordering data

Version
Pressing tool, Crimping tool for contacts, 0.5mm², 6mm², Double crimp, Oval crimping
Référence
9017290000
Tipo
CTI 6 ZERT
GTIN (EAN)
4008190239084
Qty.
1 adet

Dimensions and weights

Szélesség
250 mm
Width (inches)
9,842 inch
Net weight
756 g

Environmental Product Compliance

Stato conformità RoHS
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
2159813b-98fd-4068-b62a-bc89a046c012

Technical data

Description of article
Crimping tool for insulated connectors, 0.5-6 mm²
Version
Mechanical, without interchangeable inserts

Descrizione contatto

Conductor cross-section, max. AWG
AWG 10
Conductor cross-section, min. AWG
AWG 21
Crimping range, max.
6 mm²
Crimping range, min.
0,5 mm²
Type of contact
Insulated connector

tool data crimping

Estación de crimpado
  • Crimping station number:
    1
  • Conductor cross-section, min.:
    0,5 mm²
  • Conductor cross-section, max.:
    1,5 mm²
  • Conductor cross-section AWG, min.:
    20 AWG
  • Conductor cross-section AWG, max.:
    16 AWG
  • Colour of crimping station:
    Red
  • Crimping station number:
    2
  • Conductor cross-section, min.:
    1,5 mm²
  • Conductor cross-section, max.:
    2,5 mm²
  • Conductor cross-section AWG, min.:
    16 AWG
  • Conductor cross-section AWG, max.:
    14 AWG
  • Colour of crimping station:
    Blue
  • Crimping station number:
    3
  • Conductor cross-section, min.:
    4 mm²
  • Conductor cross-section, max.:
    6 mm²
  • Conductor cross-section AWG, min.:
    12 AWG
  • Conductor cross-section AWG, max.:
    10 AWG
  • Colour of crimping station:
    Yellow
Tipo de prensado /perfil
Double crimp
Oval crimping
Wire end ferrules cross-section, max.
6 mm²

Important note

Informazioni sul prodotto
Not suitable for solid conductors. Insulation on the contact is pressed conically.

Classifications

ETIM 8.0
EC000168
ETIM 9.0
EC000168
ETIM 10.0
EC000168
ECLASS 14.0
21-04-38-11
ECLASS 15.0
21-04-38-11
