Özellikler

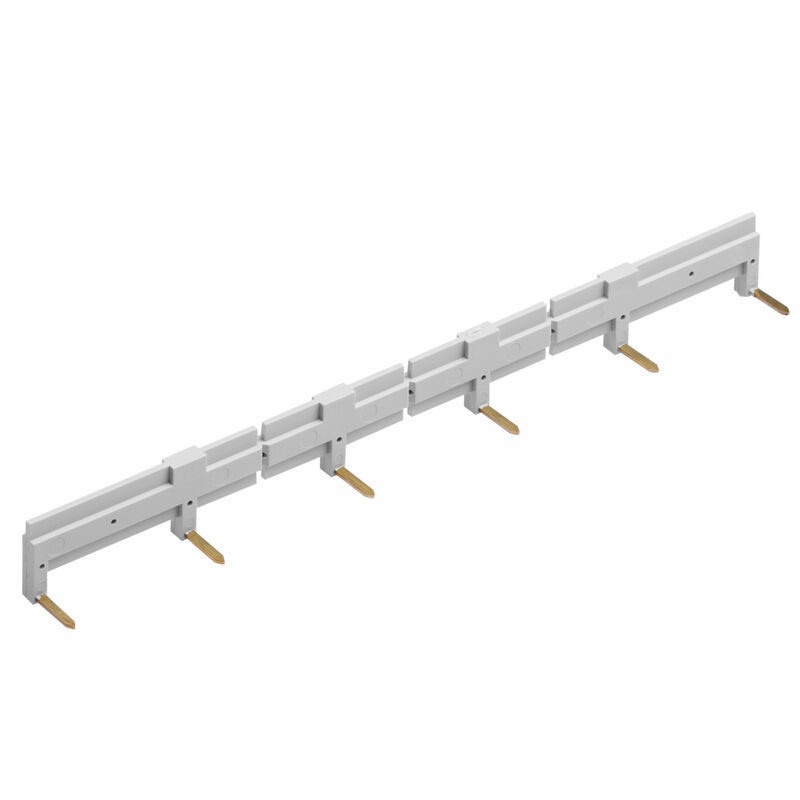

| Version | CUBESERIES, Cross-connector |
| Order No. | 3053180000 |
| Type | CXM CCS 6P GY |
| GTIN (EAN) | 4099987023009 |
| Qty. | 2 adet |
| Depth | 11,3 mm |
| Depth (inches) | 0,445 inch |
| Height | 13,8 mm |
| Height (inches) | 0,543 inch |
| Width | 135,7 mm |
| Width (inches) | 5,343 inch |
| Net weight | 9 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Rated current | 10 A |
| Insulation | Yes |
| Touch-safe protection | Yes |
| Colour | grey |
| Number of cross-connected terminals | 6 |
| Number of poles | 6 |
| Pitch in mm (P) | 26,2 mm |
| Type of mounting | Plugged |
| Colour | grey |
| Pitch in mm (P) | 26,2 mm |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_321239) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002586 |
| ETIM 7.0 | EC002586 |
| ETIM 8.0 | EC002586 |
| ETIM 9.0 | EC002586 |
| ECLASS 9.1 | 27-37-16-92 |
| ECLASS 10.0 | 27-37-16-92 |
| ECLASS 11.0 | 27-37-16-92 |
| ECLASS 12.0 | 27-37-16-92 |
| ECLASS 13.0 | 27-37-16-92 |
| ECLASS 14.0 | 27-37-16-92 |
| ROHS | Conform |
