Özellikler

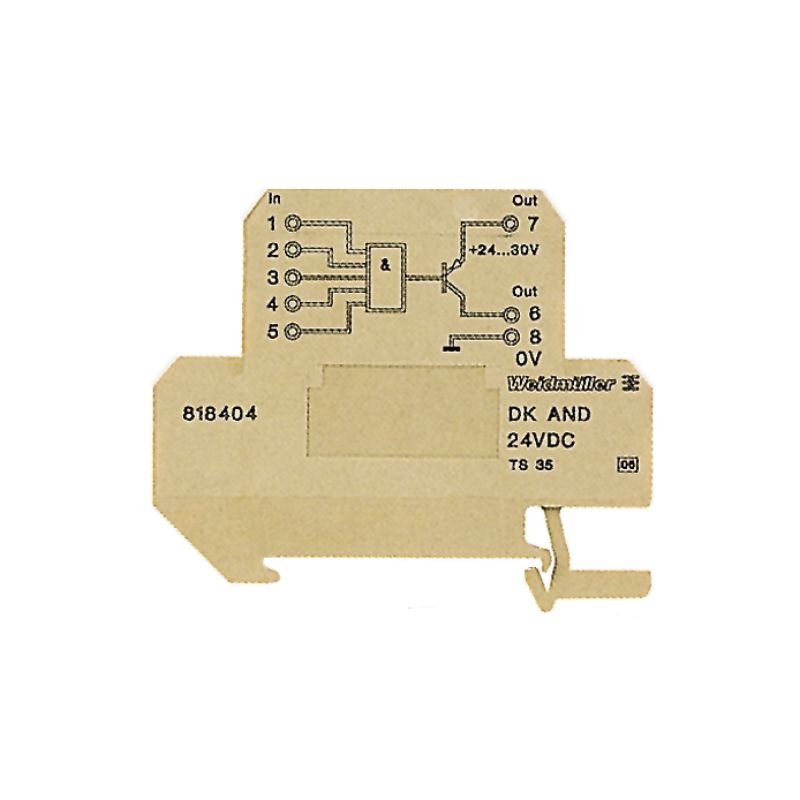

| Version | Function component, AND gate |
| Order No. | 8184040000 |
| Type | DK AND 35 24VDC |
| GTIN (EAN) | 4008190121938 |
| Qty. | 5 adet |
| Height | 57 mm |
| Height (inches) | 2,244 inch |
| Width | 12 mm |
| Width (inches) | 0,472 inch |
| Length | 65 mm |
| Length (inches) | 2,559 inch |
| Net weight | 29 g |
| Storage temperature | -40 °C...60 °C |
| Operating temperature | 0 °C...50 °C |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 35d83707-6a3b-45b5-b9f8-6ba8184c863e |
| Current consumption | <5 mA |
| Galvanic isolation | Without isolation |
| Rail | TS 35 |
| Voltage supply | 24...30 V DC |
| Galvanic isolation | Without isolation |
| Input current | Approx. 1.5 mA per input (24 V) |

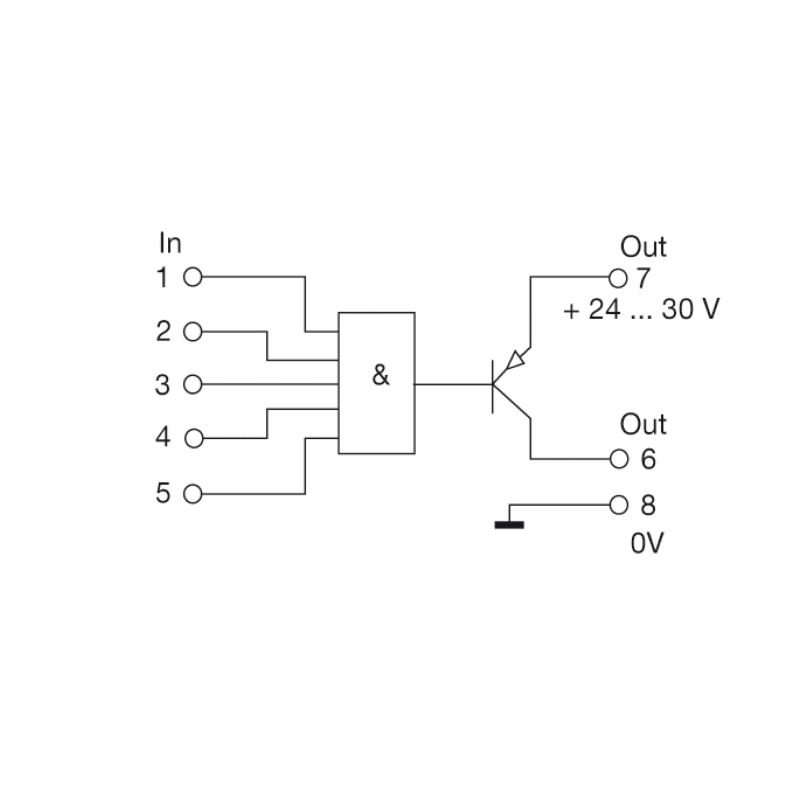

| Number of inputs | 5 |
| Pulse duration | ≥ 50 µs |
| Rated input level | 24 V DC= High, 0 V = Low |
| Rated voltage | Max. 30 V |
| Load impedance current | ≤ 600 Ω |
| Number of outputs | 1 |
| Output current | max. 20 mA |
| Output level | PNP, Ub-1.8 V |
| Switching thresholds | High <15 V, low <9 V |
| Current consumption | <5 mA |
| Galvanic isolation | Without isolation |
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
| Input/Output | Logic module |
| Open sides | right |
| Rail | TS 35 |
| Type of connection | Screw connection |
| Voltage supply | 24...30 V DC |
| Standards |
EN 61000-6-2:2005
EN 61000-6-3:2007/A1:2011 EN 61000-6-4:2007 + A1:2011 |
| Type of connection | Screw connection |
| Clamping range, rated connection | 4 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 4 mm² |
| Approval/Certificate/Document of Conformity | [Application notes -- Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35815) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_206125) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8184040000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8184040000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=8184040000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001417 |
| ETIM 7.0 | EC001417 |
| ETIM 8.0 | EC001417 |
| ETIM 9.0 | EC001417 |
| ECLASS 9.0 | 27-24-22-16 |
| ECLASS 9.1 | 27-21-92-90 |
| ECLASS 10.0 | 27-24-22-16 |
| ECLASS 11.0 | 27-24-22-16 |
| ECLASS 12.0 | 27-24-22-16 |
| ECLASS 13.0 | 27-24-22-16 |
| Approvals |  |
| ROHS | Conform |
