Özellikler

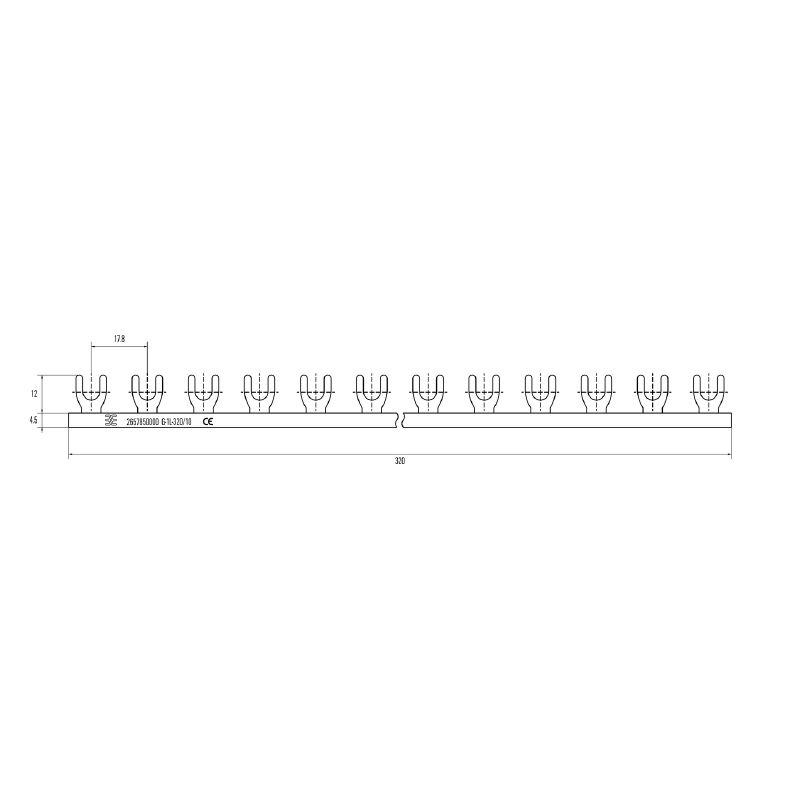

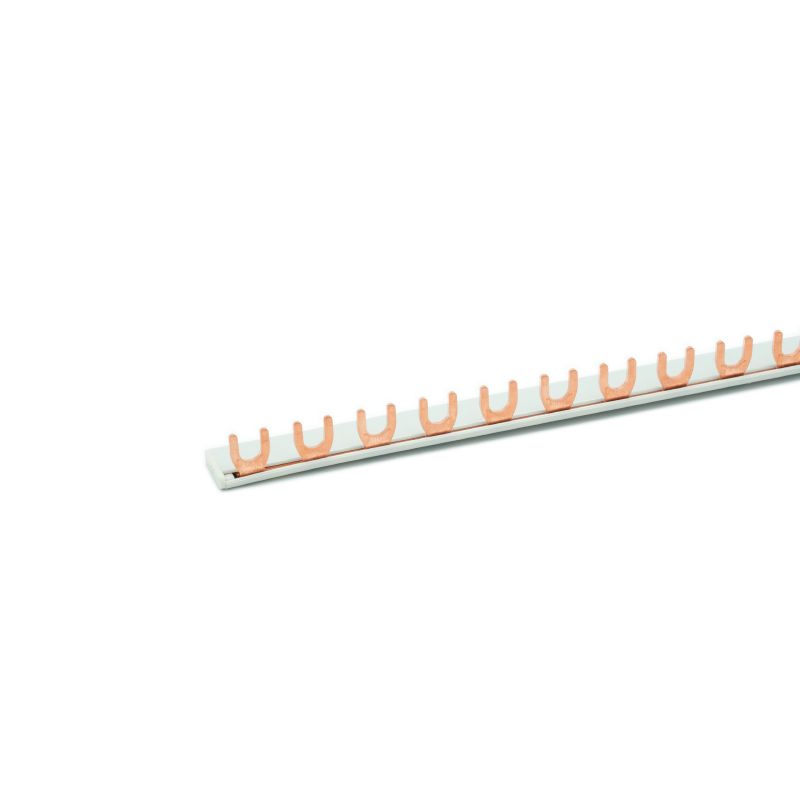

| Version | Phase busbar (Terminals), 63, Number of poles: 18, Insulated: Yes, 10 |
| Order No. | 2657850000 |
| Type | G-1L-320/10 |
| GTIN (EAN) | 4050118672671 |
| Qty. | 20 adet |
| Depth | 16,8 mm |
| Depth (inches) | 0,661 inch |
| Height | 16,5 mm |
| Height (inches) | 0,65 inch |
| Width | 320 mm |
| Width (inches) | 12,598 inch |
| Net weight | 57 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | grey |
| Explosion-tested version | No |
| Pitch in mm (P) | 17,8 mm |
| Number of poles | 18 |
| Rated cross-section | 10 mm² |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165102) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000215 |
| ETIM 8.0 | EC000215 |
| ETIM 9.0 | EC000215 |
| ECLASS 11.0 | 27-37-13-06 |
| ECLASS 12.0 | 27-37-13-06 |
| ECLASS 13.0 | 27-37-13-06 |
| ECLASS 14.0 | 27-37-13-06 |
| Approvals |  |
| ROHS | Conform |
Aksesuarlar
-
-
-
-
-
-
Ürün No.:2658970000Ambalaj birimi:50 adet
Terminal cover, grey, Height: 16.8 mm, Width: 4.5 mm, Depth: 16.8 mm
-
Ürün No.:2659040000Ambalaj birimi:10 adet
Terminal cover, yellow, Height: 18.3 mm, Width: 8.1 mm, Depth: 18 mm
