Özellikler
| Version | Wire-end ferrule, Standard, 8 mm, 6 mm, grey |
| Order No. | 9036200000 |

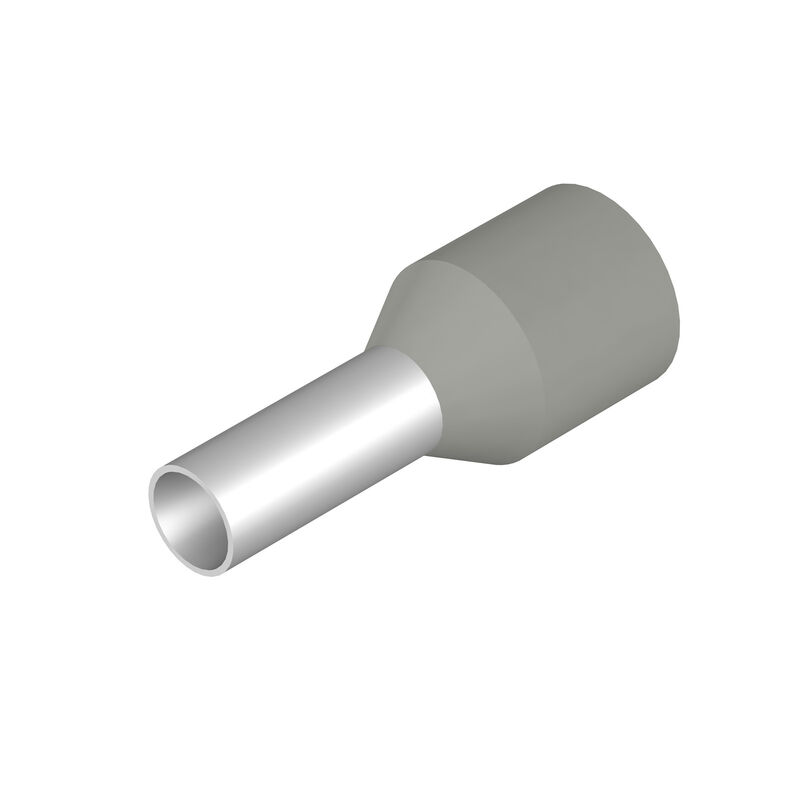

| Type | H2,5/12TS GR |
| GTIN (EAN) | 4032248067992 |
| Qty. | 500 adet |
| Packaging | loose |
| Net weight | 0,126 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Description of article | Wire end ferrule with plastic collar, special size, grey |
| Version | Standard |
| Collar diameter (D2) | 4,2 mm |
| Colour code | Weidmueller |
| Conductor cross-section | 2,5 mm² |
| Contact surface diameter (D1) | 2,2 mm |
| Contact surface length (L2) | 6 mm |
| L1 in mm | 12 mm |
| Metal sleeve thickness (S1) | 0,15 mm |
| Plastic collar thickness (S2) | 0,25 mm |
| Stripping length | 8 mm |
| Wire connection cross section AWG, max. | AWG 14 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_55462) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.9036200000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9036200000) |
| User Documentation |
[Technical information - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_106826)
[Technical information - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_106827) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000005 |
| ETIM 7.0 | EC000005 |
| ETIM 8.0 | EC000005 |
| ETIM 9.0 | EC000005 |
| ECLASS 9.0 | 27-40-02-01 |
| ECLASS 9.1 | 27-40-02-01 |
| ECLASS 10.0 | 27-40-02-01 |
| ECLASS 11.0 | 27-40-02-01 |
| ECLASS 12.0 | 27-40-02-01 |
| ECLASS 13.0 | 27-40-02-01 |
| ECLASS 14.0 | 27-40-02-01 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E354986 |
