Özellikler

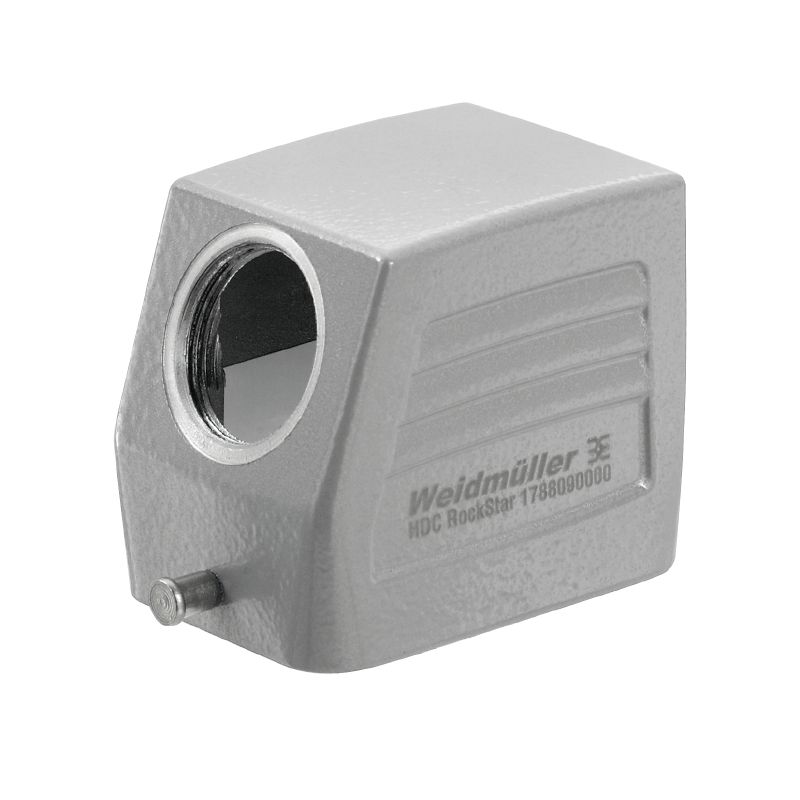

| Version | HDC enclosures, Size: 3, Protection degree: IP65 (in plugged condition), Cable entry from side, Plug housing, End-locking clamp, lower side, Standard, Size of cable entries: PG 13.5 |
| Order No. | 1670530000 |
| Type | HDC 06B TSLU 1PG13G |
| GTIN (EAN) | 4008190431617 |
| Qty. | 1 adet |
| Height | 52 mm |
| Height (inches) | 2,047 inch |
| Width | 43 mm |
| Width (inches) | 1,693 inch |
| Net weight | 123 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d447edfa-0214-4f34-b5ba-82eae491b46a |
| Chemical resistance |
|
| Cable entry | w. thread |
| Height of housing B | 52 mm |
| Total length housing | 60 mm |
| Width housing C | 43 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| Tightening torque | 1,2 Nm |
| BG | 3 |
| Cable entry | w. thread |
| Clamp version | End-locking clamp |
| Colour (RAL) | RAL 7035 |
| Design | Standard |
| Design of housing |
Cable entry from side
Plug housing |
| Design of locking system | End-locking clamp, lower side |
| Internal thread | PG 13.5 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 1 |
| Size | 3 |
| Size of cable entries | PG 13.5 |
| Suitable for ModuPlug® | No |
| Tightening torque | 1,2 Nm |
| Top part/bottom part/lid | upper part |
| Type | Plug |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_72844) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1670530000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1670530000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1670530000&norm=0) |
