Özellikler
| Version | HDC enclosures, Size: 12, Protection degree: IP65 (in plugged condition), Base housing, End-locking clamp, lower side, Standard, with cover, Size of cable entries: PG 29 |
| Order No. | 1667560000 |

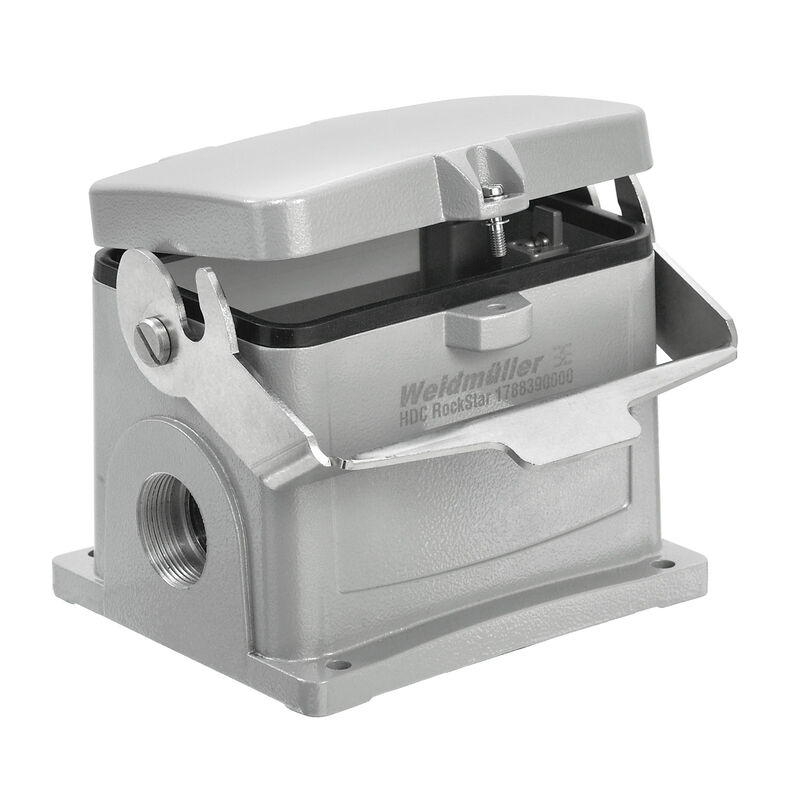

| Type | HDC 48B SDLU 2PG29G |
| GTIN (EAN) | 4008190424763 |
| Qty. | 1 adet |

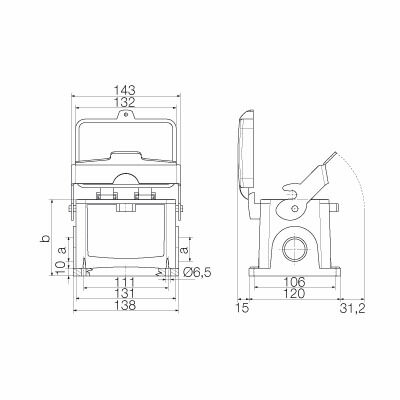

| Depth | 143 mm |
| Depth (inches) | 5,63 inch |
| Height | 120 mm |
| Height (inches) | 4,724 inch |
| Width | 166,2 mm |
| Width (inches) | 6,543 inch |
| Mounting dimension - height | 106 mm |
| Mounting dimension - width | 111 mm |
| Net weight | 1.543 g |
| Limit temperature | -40 °C ... 125 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d447edfa-0214-4f34-b5ba-82eae491b46a |
| Chemical resistance |
|
| Cable entry | w. thread |
| Height of base B1 | 10 mm |
| Height of housing B | 120 mm |
| Hole pitch length A2 | 111 mm |
| Total length housing | 132 mm |
| Width base C1 | 120 mm |
| Width housing C | 90 mm |
| EMC housings | No |
| Housing main material | diecast aluminium |
| Material of locking element | Stainless steel, rust-proof |
| Protection class note | Protection class with secured cover: IP 65 |
| Protection degree | IP65 (in plugged condition) |
| Surface finish | Powder coating |
| Tightening torque | 1,2 Nm |
| BG | 12 |
| Cable entry | w. thread |
| Clamp version | End-locking clamp |
| Colour (RAL) | RAL 7035 |
| Cover | with cover |
| Design | Standard |
| Design of cover | with cover |
| Design of housing | Base housing |
| Design of locking system | End-locking clamp, lower side |
| Internal thread | PG 29 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 2 |
| Sealing | NBR |
| Size | 12 |
| Size of cable entries | PG 29 |
| Suitable for ModuPlug® | Yes |
| Tightening torque | 1,2 Nm |
| Top part/bottom part/lid | lower part |
| Type | Base housing |
