Özellikler
| Version | Insert |
| Order No. | 2427910000 |

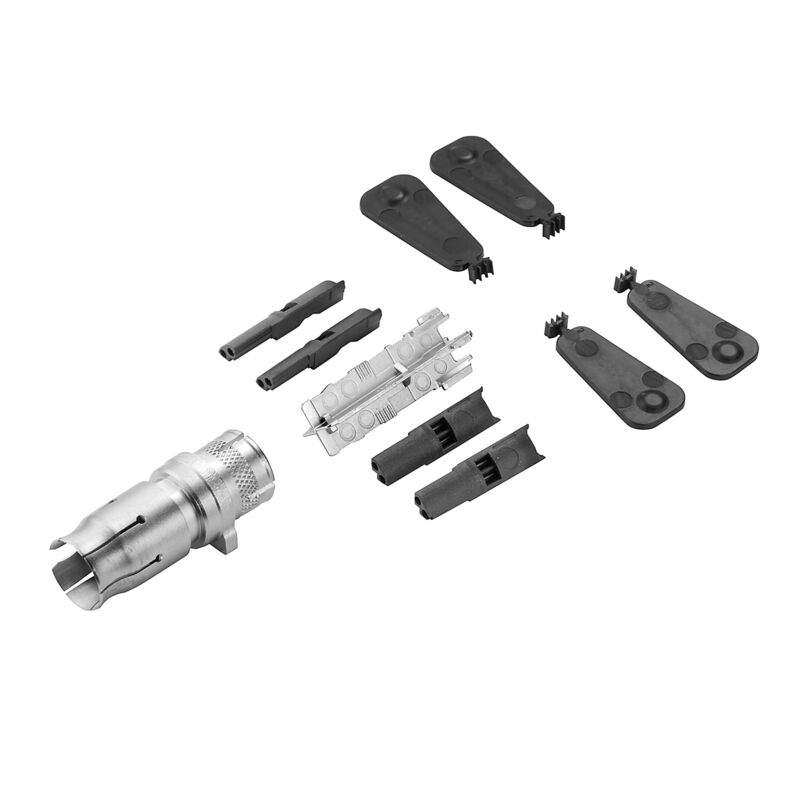

| Type | HDC MBUS8 X6A FC |
| GTIN (EAN) | 4050118437102 |
| Qty. | 2 adet |
| Depth | 34,8 mm |
| Depth (inches) | 1,37 inch |
| Height | 12,2 mm |
| Height (inches) | 0,48 inch |
| Net weight | 6 g |
| Limit temperature | -40 °C ... 90 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2ac5c63f-7f5e-465a-860d-49cfb7bbe5b5 |
| Category | Cat. 6A |
| Coding | X-coded |
| Contact surface | Gold-plated |
| Insulation strength | ≥ 100 MΩ |
| Number of poles | 8 |
| Plugging cycles | 100 |
| Pollution severity | 2 |
| Rated current | 0,5 A |
| Rated voltage | 50 V |
| Transmission rate | 10 Gbps |
| Type | Female |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87523) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2427910000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2427910000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2427910000&norm=0) |
| Product Change Notification |
[PCN](https://mdcop.weidmueller.com/mediadelivery/asset/900_87721)
[PCN](https://mdcop.weidmueller.com/mediadelivery/asset/900_87725) |
| User Documentation | [Instructions sheet HDC ModuPlug field attachable](https://mdcop.weidmueller.com/mediadelivery/asset/900_86773) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC002312 |
| ETIM 9.0 | EC002312 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ROHS | Conform |
