HDC MEMC 2 MC

Data module, 50 V, 10 A, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 2

Ürün No. 2748560000

Özellikler

General ordering data

Version	Data module, 50 V, 10 A, Number of poles: 2, Crimp connection, Male, Required plug-in slots: 2
Order No.	2748560000
Type	HDC MEMC 2 MC
GTIN (EAN)	4050118890730
Qty.	2 adet

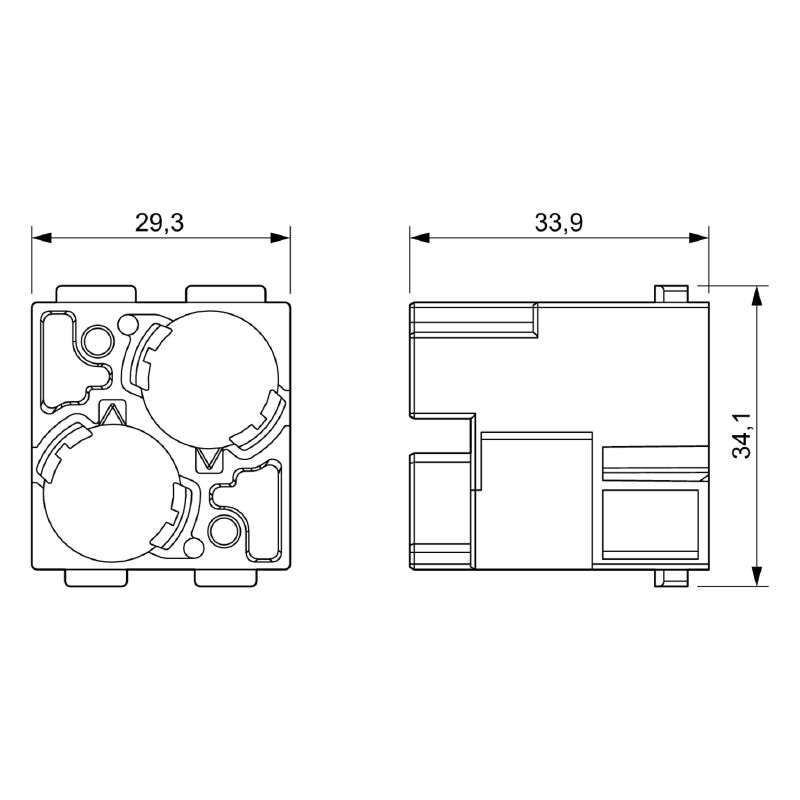

Dimensions and weights

Depth	34 mm
Depth (inches)	1,339 inch
Height	34 mm
Height (inches)	1,339 inch
Width	34,2 mm
Width (inches)	1,346 inch
Net weight	7,1 g

Temperatures

Limit temperature

-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

General data

Material	Polycarbonate
Number of poles	2
Plugging cycles	≥ 500
Pollution severity	3
Rated current (DIN EN 61984)	10 A
Rated impulse voltage (DIN EN 61984)	0,8 kV
Rated voltage (DIN EN 61984)	50 V
Required plug-in slots	2
Series	ModuPlug
Surge voltage category	III
Type	Male
UL 94 flammability rating	V-0

PE connection data

Connection type PE

Screw connection via module frame

Version

Conductor cross-section, max.	2,5 mm²
Conductor cross-section, min.	0,14 mm²
Type of connection	Crimp connection

Downloads

Approval/Certificate/Document of Conformity	[Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_188720)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2748560000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002312
ETIM 7.0	EC002312
ETIM 8.0	EC000438
ETIM 9.0	EC000438
ECLASS 9.0	27-44-02-92
ECLASS 9.1	27-44-02-18
ECLASS 10.0	27-44-02-92
ECLASS 11.0	27-44-02-92
ECLASS 12.0	27-44-02-92
ECLASS 13.0	27-44-02-92
ECLASS 14.0	27-44-02-92

Approvals

Approvals	![CSA](/picture/CSA.gif) ![UR](/picture/UR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E92202
