Özellikler

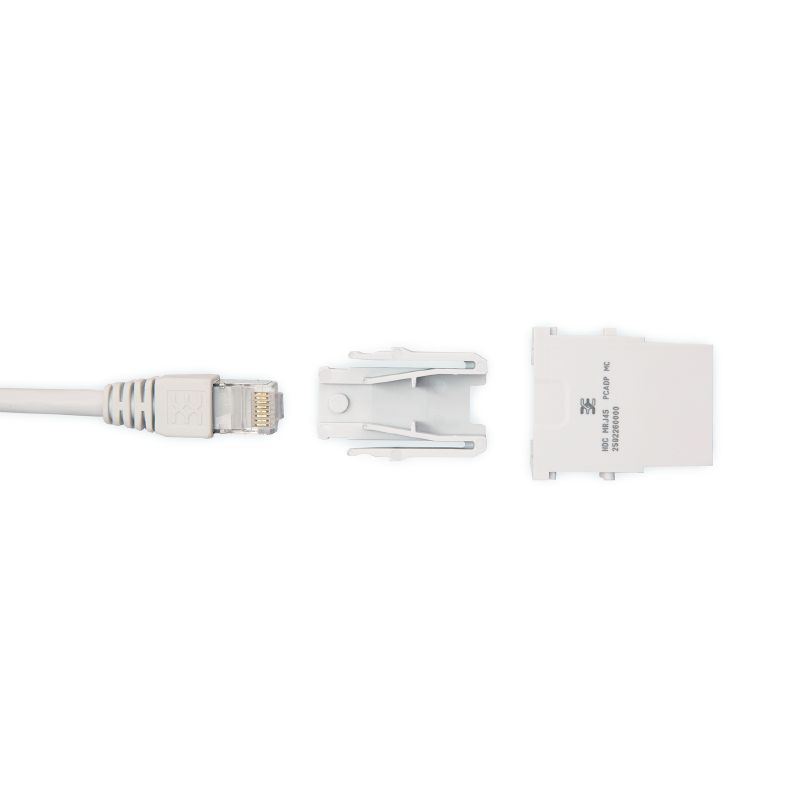

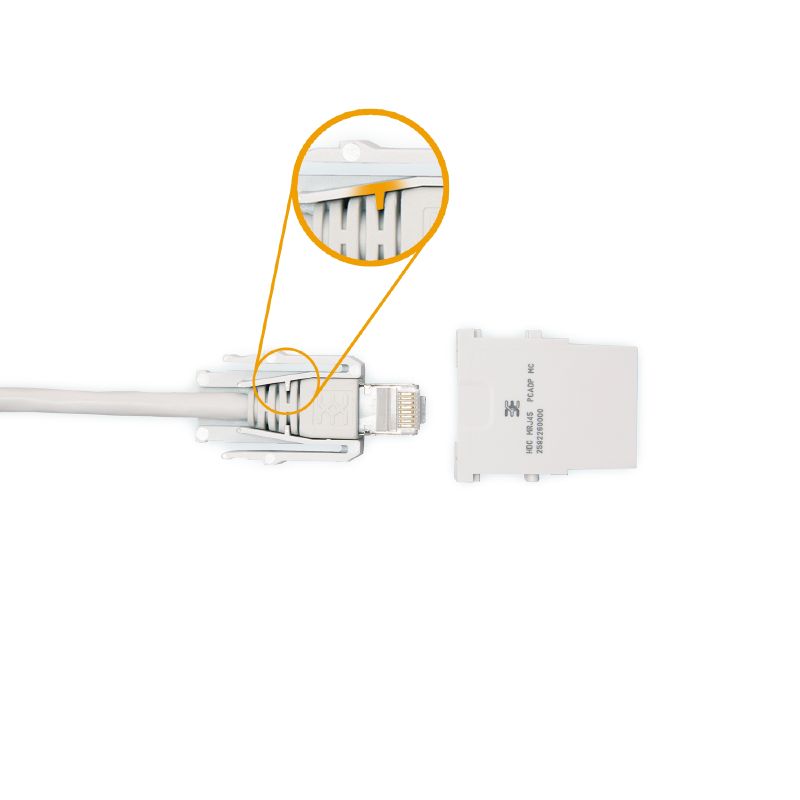

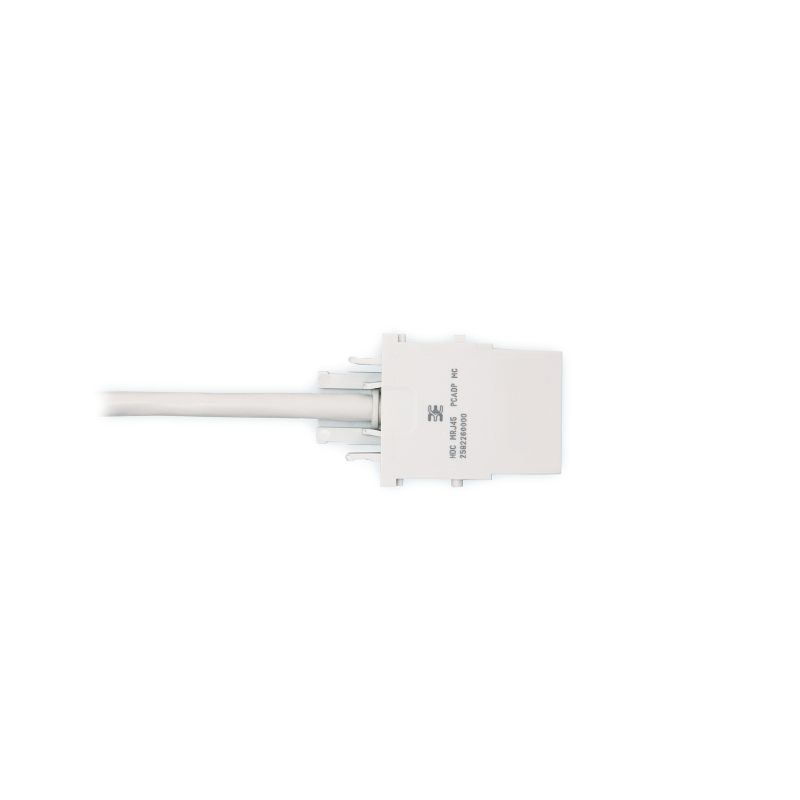

| Version | RJ45 module, Number of poles: 1, Male, Required plug-in slots: 1 |
| Order No. | 2592260000 |
| Type | HDC MRJ45 PCADP MC |
| GTIN (EAN) | 4050118602364 |
| Qty. | 1 adet |
| Depth | 34 mm |
| Depth (inches) | 1,339 inch |
| Height | 54,85 mm |
| Height (inches) | 2,159 inch |
| Width | 14,5 mm |
| Width (inches) | 0,571 inch |
| Net weight | 5,7 g |
| Limit temperature | -40 °C ... 70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 1609748e-c278-4c9b-b3d1-e6215d2988cd |
| Insulation strength | 1012 Ω |
| Material | Polycarbonate, glass fibre reinforced |
| Number of poles | 1 |
| Plugging cycles | 750 (RJ45) |
| Pollution severity | 3 |
| Required plug-in slots | 1 |
| Series | ModuPlug |
| Type | Male |
| UL 94 flammability rating | V-0 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_93999) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2592260000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002312 |
| ETIM 7.0 | EC002312 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-18 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
Aksesuarlar
ConnectorsHeavy duty connectorsRockStar® ModuPlugRJ45 patch cable for ModuPlug
aksesuarıdır
ConnectorsHeavy duty connectorsRockStar® ModuPlugRJ45 patch cable for ModuPlug
Karşı parçalar
-
Ürün No.:2592030000Ambalaj birimi:1 adet
RJ45 module, 50 V, 1 A, Number of poles: 8, Female, Required plug-in slots: 1
ConnectorsHeavy duty connectorsRockStar® ModuPlugModulesElectrical modules
Şunun karşı parçasıdır
-
Ürün No.:2592030000Ambalaj birimi:1 adet
RJ45 module, 50 V, 1 A, Number of poles: 8, Female, Required plug-in slots: 1
ConnectorsHeavy duty connectorsRockStar® ModuPlugModulesElectrical modules
