Özellikler

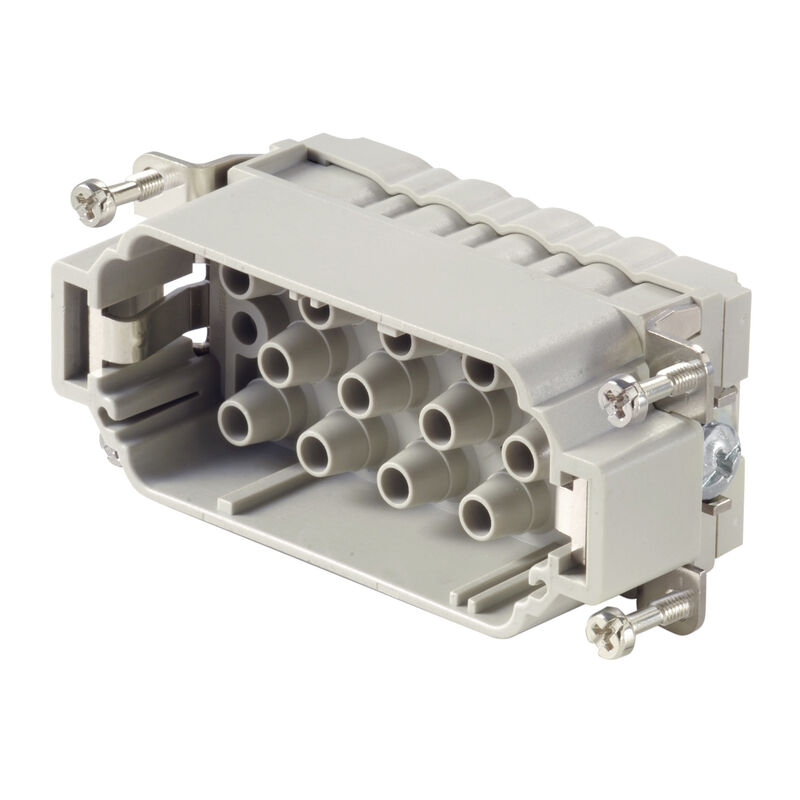

| Version | HDC insert, Male, 690 V, 40 A, Number of poles: 14, Crimp connection, Size: 6 |
| Order No. | 1023340000 |
| Type | HDC S12/2 MC |
| GTIN (EAN) | 4032248739486 |
| Qty. | 1 adet |
| Depth | 84,5 mm |
| Depth (inches) | 3,327 inch |
| Height | 38,6 mm |
| Height (inches) | 1,52 inch |
| Width | 34 mm |
| Width (inches) | 1,339 inch |
| Net weight | 62 g |
| Limit temperature | -40 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 1609748e-c278-4c9b-b3d1-e6215d2988cd |
| Chemical resistance |
|
| Height of plug | 38,6 mm |
| Total length base | 84,5 mm |
| Width | 34 mm |
| BG | 6 |
| Colour | beige |
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| Insulating material group | IIIa |
| Insulation strength | 1010 Ω |
| Low smoke acc. DIN EN 45545-2 | Yes |
| Material | Copper alloy |
| Number of poles | 14 |
| Number of power contacts | 12 |
| Number of signal contacts | 2 |
| Plugging cycles, gold | ≥ 500 |
| Plugging cycles, silver | ≥ 500 |
| Pollution severity | 3 |
| Power contact, type | HX |
| Rated current (DIN EN 61984) | 40 A |
| Rated impulse voltage (DIN EN 61984) | 8 kV |
| Rated voltage (DIN EN 61984) | 690 V |
| Rated voltage according to UL/CSA | 600 V AC/DC |
| Series | MixMate |
| Signal contact, type | HD |
| Size | 6 |
| Type | Male |
| Type of connection | Crimp connection |
| UL 94 flammability rating | V-0 |
| Volume resistance | ≤2 mΩ |
| Blade size, slotted (PE connection) | SD 1.2 x 6.5 |
| Connection type PE | Screw connection |
| Fixing screw | M 5 |
| Rated cross-section | 6 mm² |
| Stripping length PE connection | 13 mm |
| Tightening torque, max. PE connection | 2,5 Nm |
| Tightening torque, min. PE connection | 2 Nm |
| Wire cross section, AWG (PE), max. | AWG 10 |
| Wire cross section, AWG (PE), min. | AWG 20 |
| Clamping range, power contact, max. | 6 mm² |
| Clamping range, power contact, min. | 1,5 mm² |
| Number of poles, performance contact | 12 |
| Rated current (DIN EN 61984), power contact | 40 A |
| Rated current power circuit (cUR) |
|
| Rated current power circuit (UR) |
|
| Rated current signal circuit (cUR) |
|
| Rated current signal circuit (UR) |
|
| Rated impulse voltage (DIN EN 61984), power contact | 8 kV |
| Rated voltage (DIN EN 61984), power contact | 690 V |
| Stripping length, performance contact | 9 mm |
| Type of connection, power contact | Crimp connection |
| Clamping range, signal contact, max. | 2,5 mm² |
| Clamping range, signal contact, min. | 0,5 mm² |
| Number of poles, signal | 2 |
| Rated current (DIN EN 61984), signal | 10 A |
| Rated impulse voltage (DIN EN 61984), signal | 4 kV |
| Rated voltage (DIN EN 61984), signal contact | 250 V |
| Stripping length, signal | 8 mm |
| Type of connection, signal | Crimp connection |
| BG | 6 |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Material | Copper alloy |
| Size | 6 |
| Stripping length, rated connection | 9 mm |
| Type of connection | Crimp connection |
| Volume resistance | ≤2 mΩ |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 6 mm² |
| Wire cross-section, solid, min. | 0,5 mm² |
| Approval/Certificate/Document of Conformity | [Manufacturer's declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_198690) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_87563) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1023340000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1023340000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000438 |
| ETIM 7.0 | EC000438 |
| ETIM 8.0 | EC000438 |
| ETIM 9.0 | EC000438 |
| ECLASS 9.0 | 27-44-02-05 |
| ECLASS 9.1 | 27-44-02-05 |
| ECLASS 10.0 | 27-44-02-05 |
| ECLASS 11.0 | 27-44-02-05 |
| ECLASS 12.0 | 27-44-02-05 |
| ECLASS 13.0 | 27-44-02-05 |
| ECLASS 14.0 | 27-44-02-05 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E92202 |
Aksesuarlar
-
Ürün No.:1002930000Ambalaj birimi:25 adet
Heavy-duty connectors, Crimp contact, MixMate, Male, Conductor cross-section, max.: 4, turned, Copper alloy
-
Ürün No.:1002910000Ambalaj birimi:25 adet
Heavy-duty connectors, Crimp contact, MixMate, Male, Conductor cross-section, max.: 1.5, turned, Copper alloy
-
Ürün No.:1002940000Ambalaj birimi:25 adet
Heavy-duty connectors, Crimp contact, MixMate, Male, Conductor cross-section, max.: 6, turned, Copper alloy
-
Ürün No.:1002920000Ambalaj birimi:25 adet
Heavy-duty connectors, Crimp contact, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
-
-
Ürün No.:1651620000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.37, turned, Copper alloy
-
Ürün No.:1651630000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.5, turned, Copper alloy
-
Ürün No.:1651660000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
-
Ürün No.:1651640000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy
-
Ürün No.:1601750000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1, turned, Copper alloy
-
Ürün No.:1651530000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.5, turned, Copper alloy
-
Ürün No.:1651520000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 0.37, turned, Copper alloy
-
Ürün No.:1651560000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 2.5, turned, Copper alloy
-
Ürün No.:1651650000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1.5, turned, Copper alloy
-
Ürün No.:1651550000Ambalaj birimi:100 adet
Heavy-duty connectors, Crimp contact, HD, HDD, HQ, MixMate, Male, Conductor cross-section, max.: 1.5, turned, Copper alloy
-
Ürün No.:9205430000Ambalaj birimi:1 adet
Pressing tool, Crimping tool for contacts, 0.14mm², 6mm², 4-indent crimp
