Özellikler

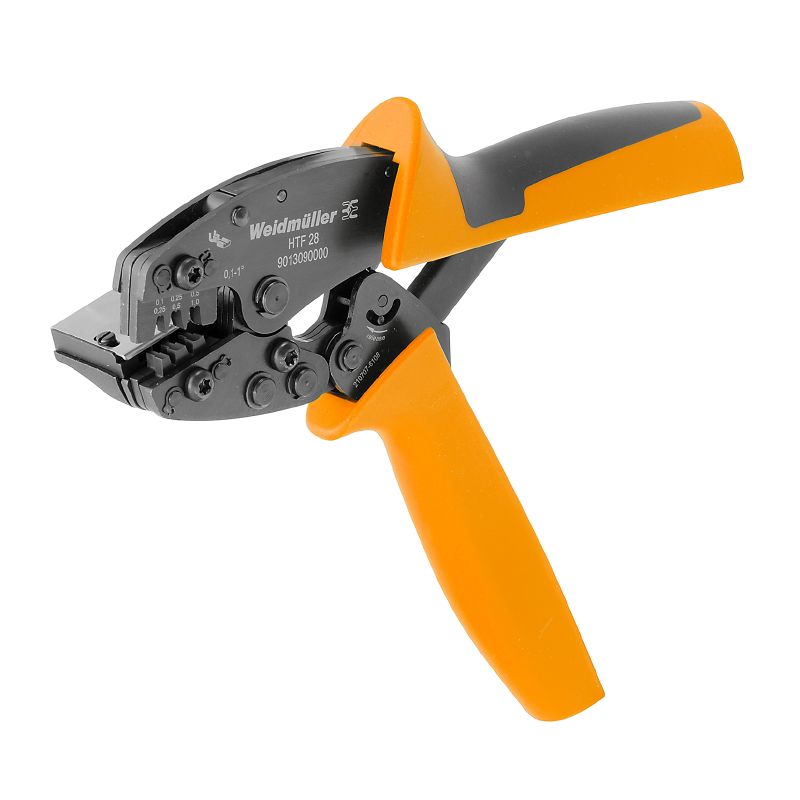

| Version | Pressing tool, Crimping tool for contacts, 0.1mm², 1mm², B-Crimp |
| Order No. | 9013090000 |
| Type | HTF 28 |
| GTIN (EAN) | 4008190129439 |
| Qty. | 1 adet |
| Width | 200 mm |
| Width (inches) | 7,874 inch |
| Net weight | 449,98 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | Crimping tools for flat-blade connectors and flat-blade receptacles, connector width 2.8 mm |
| Version | Mechanical, without interchangeable inserts |
| Conductor cross-section, max. AWG | AWG 18 |
| Conductor cross-section, min. AWG | AWG 28 |
| Crimping range, max. | 1 mm² |
| Crimping range, min. | 0,1 mm² |
| Plug width | 2,8 mm |
| Type of contact | F-plug / -sleeve |
| Crimping type/profile | B-Crimp |
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_318093) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9013090000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
