Özellikler

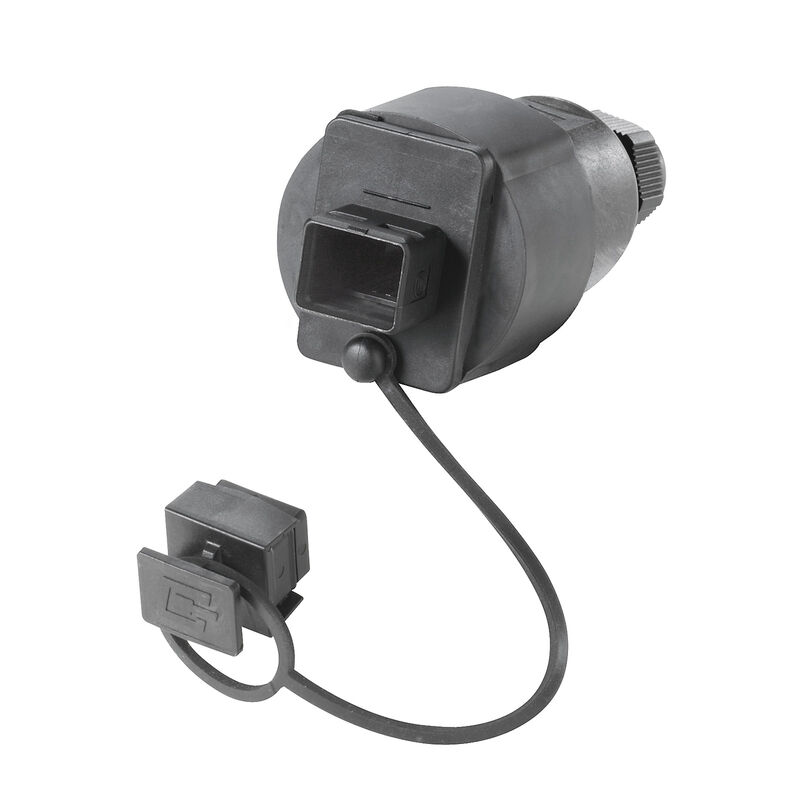

| Version | Coupling, IP67, Variant 4 to IEC 61076-3-106 |
| Order No. | 1045960000 |
| Type | IE-CC-V04P |
| GTIN (EAN) | 4032248781072 |
| Qty. | 10 adet |

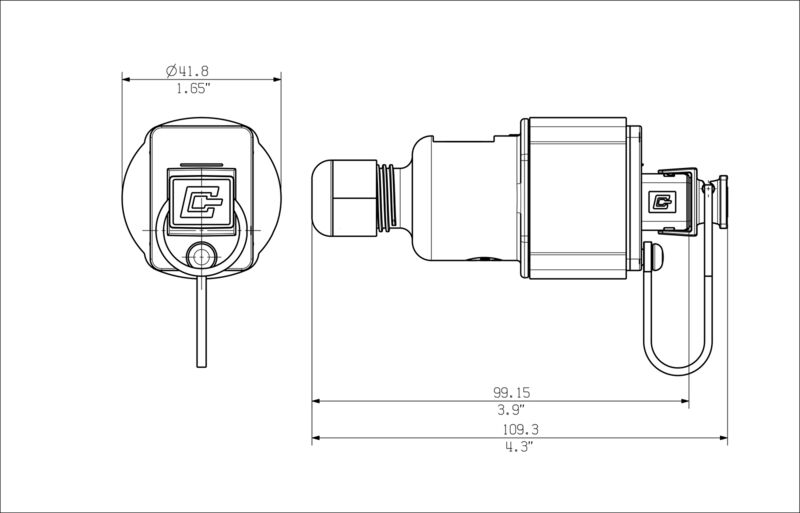

| Depth | 109,3 mm |
| Depth (inches) | 4,303 inch |
| Height | 41,8 mm |
| Height (inches) | 1,646 inch |
| Width | 41,8 mm |
| Width (inches) | 1,646 inch |
| Net weight | 5,8 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Housing main material | PA UL 94 V0 |
| Plugging cycles | 750 |
| Protection degree | IP67 |
| Type of mounting |
Floor-mounted
for exposed connections Wall mounting |
| UL 94 flammability rating | V-0 |
| Connector standard | IEC 61076-3-106 Var. 4 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_253561) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1045960000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB FREECONCONTACT EN](http://download.weidmueller.com/asset/download/file/38173)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 7.0 | EC002597 |
| ETIM 8.0 | EC002597 |
| ETIM 9.0 | EC002597 |
| ECLASS 9.1 | 27-44-03-18 |
| ECLASS 10.0 | 27-44-03-18 |
| ECLASS 11.0 | 27-44-03-18 |
| ECLASS 12.0 | 27-44-03-18 |
| ECLASS 13.0 | 27-44-03-18 |
| ECLASS 14.0 | 27-44-03-18 |
| ROHS | Conform |
