Özellikler

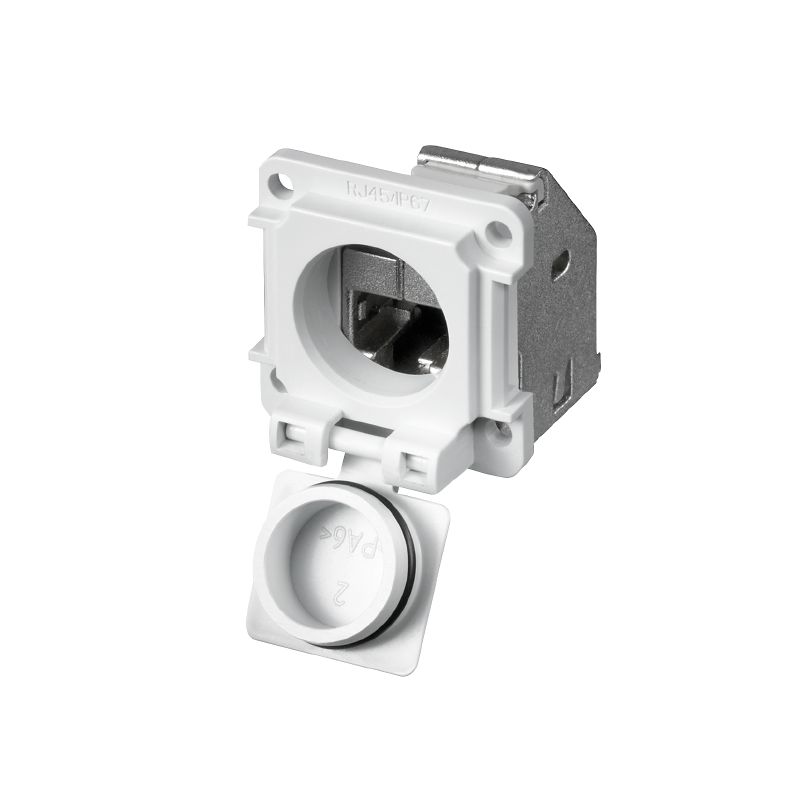

| Version | Mounting flange, Coupling flange, 90° down, Cat.6 (ISO/IEC 11801), IP67 |
| Order No. | 8829450000 |
| Type | IE-XM-6D-RJ45/RJ45-IP67 |
| GTIN (EAN) | 4032248532476 |
| Qty. | 1 adet |
| Net weight | 54 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Connection 1 | RJ45 |
| Connection 2 | RJ45 90° |
| Description of article | Coupling flange, 90° down |
| Configuration |
Installation flange with mounting frame and RJ45 module, socket-socket 90°, downwards captive lid |
| Colour | Light Grey |
| Housing main material |
PA 66
UL 94: V-0 |
| Category | Cat.6 (ISO/IEC 11801) |
| Contact surface | Gold over nickel |
| Type of mounting |
Cabinet
Distribution box |
| Shielding | 360° shield contact |
| Protection degree | IP67 |
| Plugging cycles | 750 |
| Dielectric strength, contact / contact | ≥ 1000 V AC/DC |
| Dielectric strength, contact / shield | ≥ 1500 V AC/DC |
| Certificate No. (DNV) | TAE00003EW |
| Connector standard |
IEC 61076-3-106 Var. 6
IEC 60603-7-5 |
| Approval/Certificate/Document of Conformity | [GOST Approval](https://mdcop.weidmueller.com/mediadelivery/asset/900_58423) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_261942) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8829450000) |
| User Documentation |
[MAN IE GUIDE DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_40065)
[MAN IE GUIDE EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_40066) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) [PI PROFINET CABLING EN](http://download.weidmueller.com/asset/download/file/38183) |
| ETIM 6.0 | EC001121 |
| ETIM 7.0 | EC001121 |
| ETIM 8.0 | EC001121 |
| ETIM 9.0 | EC001121 |
| ECLASS 9.0 | 27-44-03-90 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-03-90 |
| ECLASS 11.0 | 27-44-03-90 |
| ECLASS 12.0 | 27-44-03-90 |
| ECLASS 13.0 | 27-44-03-90 |
| ECLASS 14.0 | 27-44-03-90 |
| Approvals |  |
| ROHS | Conform |
Aksesuarlar
-
Ürün No.:8808330000Ambalaj birimi:1 adet
Flange insert, Cat.6A / Class EA (ISO/IEC 11801 2010), IP20
ConnectorsIndustrial Ethernet ConnectorsRJ45, Hybrid & USB connectorsIP20RJ45 coupling / module
Şunun karşı parçasıdır
-
Ürün No.:8808380000Ambalaj birimi:1 adet
Connecting plug, Plug, IP67, Cat.6A / Class EA (ISO/IEC 11801 2010), Variant 6 to IEC 61076-3-106
ConnectorsIndustrial Ethernet ConnectorsRJ45, Hybrid & USB connectorsIP67V6 SnapInSets - RJ45
