Özellikler

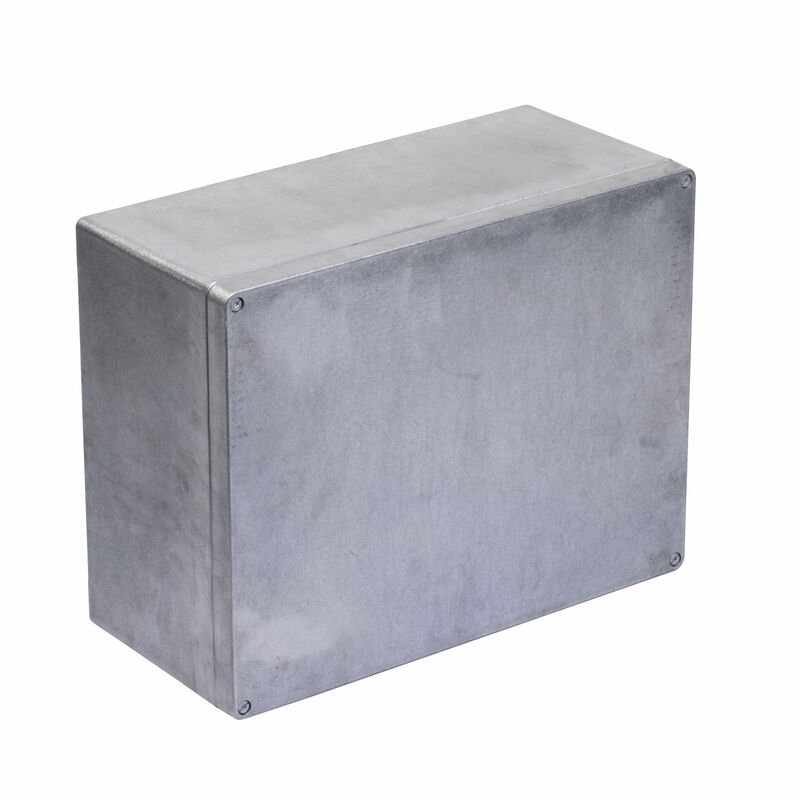

| Version | Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 313 mm, Width: 404 mm, Depth: 181 mm, Material: Aluminium AlSi12, untreated, silver |
| Order No. | 2934260000 |
| Type | KLIPPON K79 VMQ |
| GTIN (EAN) | 4099986682498 |
| Qty. | 1 adet |
| Depth | 181 mm |
| Depth (inches) | 7,126 inch |
| Height | 313 mm |
| Height (inches) | 12,323 inch |
| Width | 404 mm |
| Width (inches) | 15,905 inch |
| Mounting dimension - height | 262 mm |
| Mounting dimension - width | 384 mm |
| Wall thickness, min. | 5 mm |
| Wall thickness, max. | 5 mm |
| Net weight | 8.500 g |
| Operating temperature | -50 °C...135 °C |
| Operating temperature range | -50 ... 135 |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Approval conditions | cULus |
| Declaration of Conformatiy No. (DoC LVD) | DE PS2410 160412 001ISS03 |
| Access opening: height | 303 mm |
| Access opening: width | 394 mm |
| Areas of use |
Process industry
Transportation Marine engineering Packaging industry Harbour facilities Machine construction |
| Enclosure attachment | Holes 6 mm |
| Flange plate | No |
| Impact resistance | 10 J version standard |
| Installation advice | Wall mounting |
| Integral fixing | Threaded holes M5 |
| Lid | Yes |
| Lid attachment | M6 torx stainless steel screws with slot |
| Material | Aluminium AlSi12 |
| Material thickness | 5 mm |
| Material thickness of cover | 5 mm |
| Material thickness of enclosure | 5 mm |
| Number of lid screws | 4 |
| Operating temperature, max. | 135 °C |
| Operating temperature, min. | -50 °C |
| Protection class (UL) |
Type 4
Type 4X |
| Protection degree |
IP66
IP67 IP68 |
| Seal material | Silicone |
| Seal material of cover | Silicone |
| Silicone | Yes |
| Standards | DIN EN 45545-2 |
| Surface finish | untreated |
| Torque for lid screws | 2,5 Nm |
| Approval/Certificate/Document of Conformity |
[EU Declaration of Conformity - Klippon K Empty Enclosures - DoC DE PS2410 160412 001ISS03](https://mdcop.weidmueller.com/mediadelivery/asset/900_40371)
[UKCA Declaration of Conformity - Klippon K Empty Enclosures - UKCA DE PS2410 220623 001ISS00](https://mdcop.weidmueller.com/mediadelivery/asset/900_319946) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_317380) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2934260000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000261 |
| ETIM 7.0 | EC000261 |
| ETIM 8.0 | EC000261 |
| ETIM 9.0 | EC000261 |
| ECLASS 9.0 | 27-18-01-01 |
| ECLASS 9.1 | 27-18-92-90 |
| ECLASS 10.0 | 27-18-01-01 |
| ECLASS 11.0 | 27-18-01-01 |
| ECLASS 12.0 | 27-18-01-01 |
| ECLASS 13.0 | 27-18-01-01 |
| ECLASS 14.0 | 27-18-01-01 |
| ROHS | Conform |
