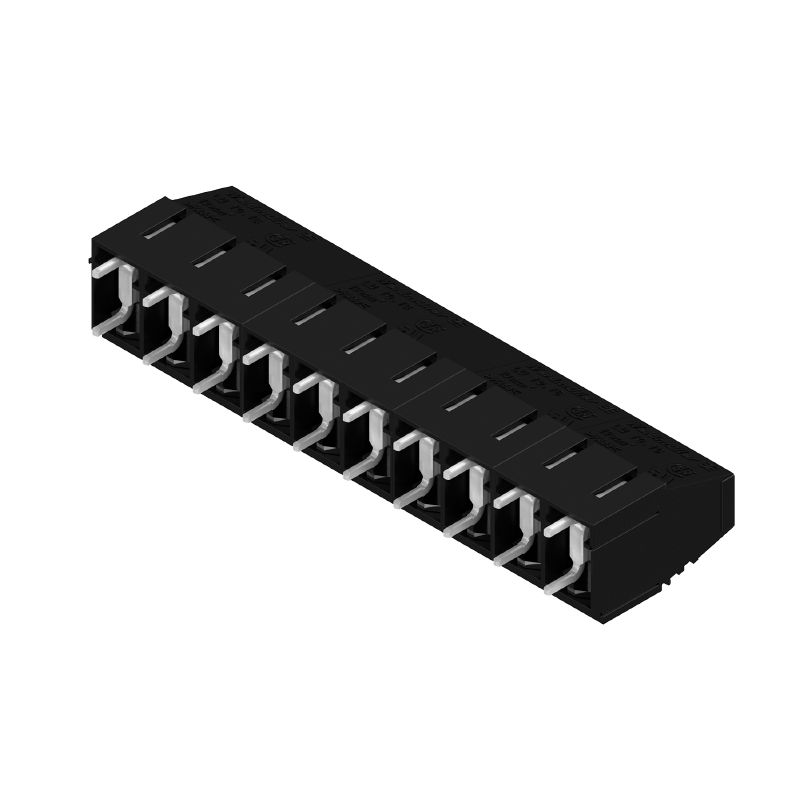

LU 10.16/10/90 4.5SN BK BX — Product image

Lataa tietosivu EDA-yksittäisosa

LU 10.16/10/90 4.5SN BK BX

Printed circuit board terminals, 10.16 mm, Number of poles: 10, 90°, Solder pin length (l): 4.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 16 mm², Box

Tuotteen tunnus 1226280000

Ominaisuudet

General ordering data

Version	Printed circuit board terminals, 10.16 mm, Number of poles: 10, 90°, Solder pin length (l): 4.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. : 16 mm², Box
Order No.	1226280000
Type	LU 10.16/10/90 4.5SN BK BX
GTIN (EAN)	4050118010824
Qty.	20 items
Product data	IEC: 1000 V / 76 A / 0.5 - 16 mm² UL: 300 V / 65 A / AWG 26 - AWG 6
Packaging	Box

Dimensions and weights

Depth	18,3 mm
Depth (inches)	0,72 inch
Height	33 mm
Height (inches)	1,299 inch
Height of lowest version	28,5 mm
Width	101,6 mm
Width (inches)	4 inch
Net weight	93,85 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System parameters

Product family	OMNIMATE Power - series LU
Wire connection method	Clamping yoke connection
Mounting onto the PCB	THT solder connection
Conductor outlet direction	90°
Pitch in mm (P)	10,16 mm
Pitch in inches (P)	0,4 "
Number of poles	10
Pin series quantity	1
Fitted by customer	Yes
Number of rows	1
Max. adjacent poles per row	10
Solder pin length (l)	4,5 mm
Solder pin dimensions	1.2 x 1.2 mm
Solder pin dimensions = d tolerance	0 / -0,15 mm
Solder eyelet hole diameter (D)	1,6 mm
Solder eyelet hole diameter tolerance (D)	+ 0,1 mm
Number of solder pins per pole	2
Screwdriver blade	1.0 x 5.5
Screwdriver blade standard	DIN 5264
Tightening torque, min.	1,2 Nm
Tightening torque, max.	2,2 Nm
Clamping screw	M 4
Stripping length	12 mm
L1 in mm	91,44 mm
L1 in inches	3,6 "
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged/ IP10 unplugged
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Protection degree	IP20
Volume resistance	0.50 mΩ

Material data

Insulating material	Wemid (PA)
Colour	black
Colour chart (similar)	RAL 9011
Insulating material group	I
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Layer structure of solder connection	1.5...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.	−40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	−50 °C
Operating temperature, max.	120 °C
Temperature range, installation, min.	−25 °C
Temperature range, installation, max.	120 °C

Conductors suitable for connection

Clamping range, min.	0,14 mm²
Clamping range, max.	16 mm²
Wire connection cross section AWG, min.	AWG 22
Wire connection cross section AWG, max.	AWG 8
Solid, min. H05(07) V-U	0,5 mm²
Solid, max. H05(07) V-U	16 mm²
Stranded, min. H07V-R	6 mm²
Stranded, max. H07V-R	16 mm²
Flexible, min. H05(07) V-K	0,5 mm²
Flexible, max. H05(07) V-K	16 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	10 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	10 mm²
Plug gauge in accordance with EN 60999 a x b; ø	5.4 mm x 5.1 mm; 5.3 mm
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 2,5 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0186100000 Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9019170000 Cross-section for conductor connection: Type: fine-wired nominal: 4 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0244100000 Stripping length: nominal: 14 mm Recommended wire-end ferrule: 9019200000 Cross-section for conductor connection: Type: fine-wired nominal: 6 mm² wire end ferrule: Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0191900000 Stripping length: nominal: 14 mm Recommended wire-end ferrule: 0533500000 Cross-section for conductor connection: Type: fine-wired nominal: 10 mm² wire end ferrule: Stripping length: nominal: 15 mm Recommended wire-end ferrule: 0534200000 Stripping length: nominal: 12 mm Recommended wire-end ferrule: 0282900000
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage. The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	76 A
Rated current, max. number of poles (Tu=20°C)	72 A
Rated current, min. number of poles (Tu=40°C)	76 A
Rated current, max. number of poles (Tu=40°C)	62 A
Rated voltage for surge voltage class / pollution degree II/2	1 000 V
Rated voltage for surge voltage class / pollution degree III/2	690 V
Rated voltage for surge voltage class / pollution degree III/3	690 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	6 kV
Short-time withstand current resistance	2 x 1s with 700 A

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1198743
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group C / CSA)	150 V
Rated voltage (Use group D / CSA)	300 V
Rated current (Use group B / CSA)	65 A
Rated current (Use group C / CSA)	65 A
Rated current (Use group D / CSA)	10 A
Wire cross-section, AWG, min.	AWG 22
Wire cross-section, AWG, max.	AWG 6
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)	UR
Certificate No. (UR)	E60693
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group C / UL 1059)	150 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group B / UL 1059)	65 A
Rated current (Use group C / UL 1059)	65 A
Rated current (Use group D / UL 1059)	5 A
Wire cross-section, AWG, min.	AWG 26
Wire cross-section, AWG, max.	AWG 6
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	165 mm
VPE width	147 mm
VPE height	74 mm

Type tests

Test: Durability of markings	Test: mark of origin, type identification, type of material, rated cross-section, approval marking CSA, approval marking UL, pitch, durability Evaluation: available
Test: Clampable cross section	Standard: EN 60947-1/1991 section 8.2.4.4 Conductor type: Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H07V-K10 Type of conductor and conductor cross-section: H07V-U10 Type of conductor and conductor cross-section: H07V-U16 Type of conductor and conductor cross-section: AWG8/7 Type of conductor and conductor cross-section: AWG 8/19 Type of conductor and conductor cross-section: AWG 22/1 Type of conductor and conductor cross-section: AWG 22/19 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: EN 60947-1/1991 section 8.2.4.4 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: AWG 22/1 Type of conductor and conductor cross-section: AWG 22/19 Evaluation: passed Requirement: 2.0 kg Conductor type: Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: AWG8/7 Type of conductor and conductor cross-section: AWG 8/19 Evaluation: passed Requirement: 2.9 kg Conductor type: Type of conductor and conductor cross-section: H07V-K10 Type of conductor and conductor cross-section: H07V-U10 Type of conductor and conductor cross-section: AWG8/7 Type of conductor and conductor cross-section: AWG 8/19 Evaluation: passed
Pull-out test	Standard: EN 60947-1/1991 section 8.2.4.4 Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: AWG 22/1 Type of conductor and conductor cross-section: AWG 22/19 Evaluation: passed Requirement: 2.0 kg Conductor type: Type of conductor and conductor cross-section: H05V-K0.5 Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: AWG8/7 Type of conductor and conductor cross-section: AWG 8/19 Evaluation: passed Requirement: 2.9 kg Conductor type: Type of conductor and conductor cross-section: H07V-K10 Type of conductor and conductor cross-section: H07V-U10 Type of conductor and conductor cross-section: AWG8/7 Type of conductor and conductor cross-section: AWG 8/19 Evaluation: passed Requirement: ≥100 N Conductor type: Type of conductor and conductor cross-section: H07V-U16 Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule without plastic collar to DIN 46228/1

Wire end ferrule with plastic collar to DIN 46228/4

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_89581)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1226280000)
Product Change Notification	[20220201 Visual change OMNIMATE® Power PCB terminal blocks and connectors](https://mdcop.weidmueller.com/mediadelivery/asset/900_251007) [20220201 Visuelle Änderung OMNIMATE® Power Leiterplattenklemmen und -steckverbinder](https://mdcop.weidmueller.com/mediadelivery/asset/900_251008)
User Documentation	[QR-Code product handling video](https://mdcop.weidmueller.com/mediadelivery/asset/900_78410)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132)

Classifications

ETIM 6.0	EC002643
ETIM 7.0	EC002643
ETIM 8.0	EC002643
ETIM 9.0	EC002643
ECLASS 9.0	27-44-04-01
ECLASS 9.1	27-44-04-01
ECLASS 10.0	27-44-04-01
ECLASS 11.0	27-46-01-01
ECLASS 12.0	27-46-01-01
ECLASS 13.0	27-46-01-01
ECLASS 14.0	27-46-01-01

Approvals

Approvals	![CSA](/picture/CSA.gif) ![UR](/picture/UR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
