Özellikler

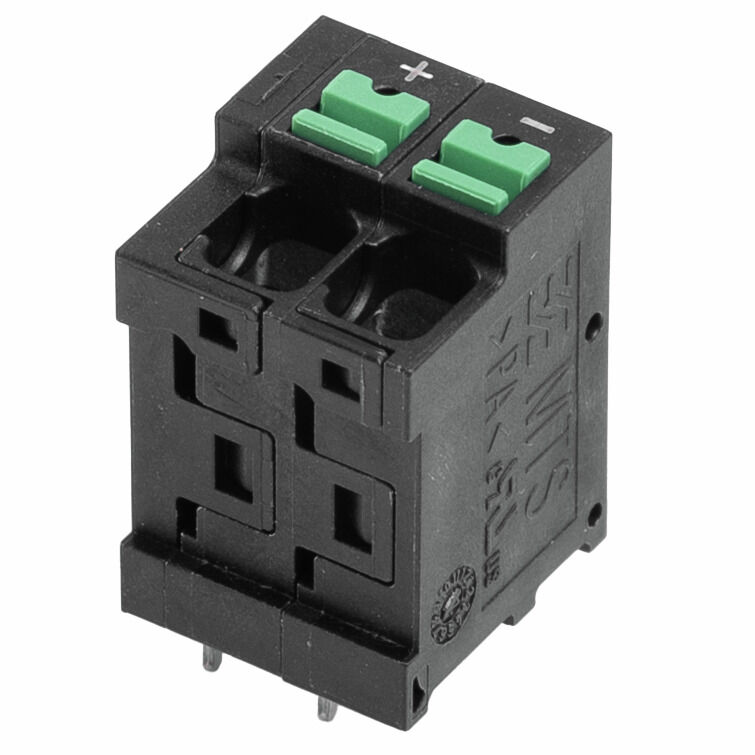

| Version | Printed circuit board terminals, PCB terminal, closed side, THT solder connection, 5.00 mm, Number of poles: 2, Solder pin length (l): 3.5 mm, tinned, black, Tube |
| Order No. | 3095920000 |
| Type | MTS SPE 5/02 V T4 B T |
| GTIN (EAN) | 4099987119429 |
| Qty. | 44 adet |
| Packaging | Tube |
| Depth | 13,2 mm |
| Depth (inches) | 0,52 inch |
| Height | 22,35 mm |
| Height (inches) | 0,88 inch |
| Height of lowest version | 18,85 mm |
| Width | 12,3 mm |
| Width (inches) | 0,484 inch |
| Net weight | 3,5 g |
| Installation temperature | -50 °C to +70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Category | T1-B |
| Mounting onto the PCB | THT solder connection |
| Number of poles | 2 |
| Number of solder pins per pole | 2 |
| Performance-Category | T1-B |
| Pitch in inches (P) | 0,197 " |
| Pitch in mm (P) | 5 mm |
| Protection degree | IP20 |
| Side termination, characteristic | closed side |
| Solder eyelet hole diameter (D) | 1,3 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Solder pin dimensions | 0.6 x 0.8 mm |
| Solder pin length (l) | 3,5 mm |
| Soldering process |
Manual soldering
Wave soldering |
| Insulating material | PA 9T |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Insulating material group | I |
| Comparative Tracking Index (CTI) | ≥ 600 |
| Moisture Level (MSL) | 1 |
| UL 94 flammability rating | V-0 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Tinning type | matt |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 120 °C |
| Packaging | Tube |
| VPE length | 0 mm |
| VPE width | 0 mm |
| VPE height | 0 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
| ETIM 8.0 | EC002643 |
| ETIM 9.0 | EC002643 |
| ECLASS 9.0 | 27-44-04-01 |
| ECLASS 9.1 | 27-44-04-01 |
| ECLASS 10.0 | 27-44-04-01 |
| ECLASS 11.0 | 27-46-01-01 |
| ECLASS 12.0 | 27-46-01-01 |
| ECLASS 13.0 | 27-46-01-01 |
| ECLASS 14.0 | 27-46-01-01 |
| ROHS | Conform |
