Özellikler

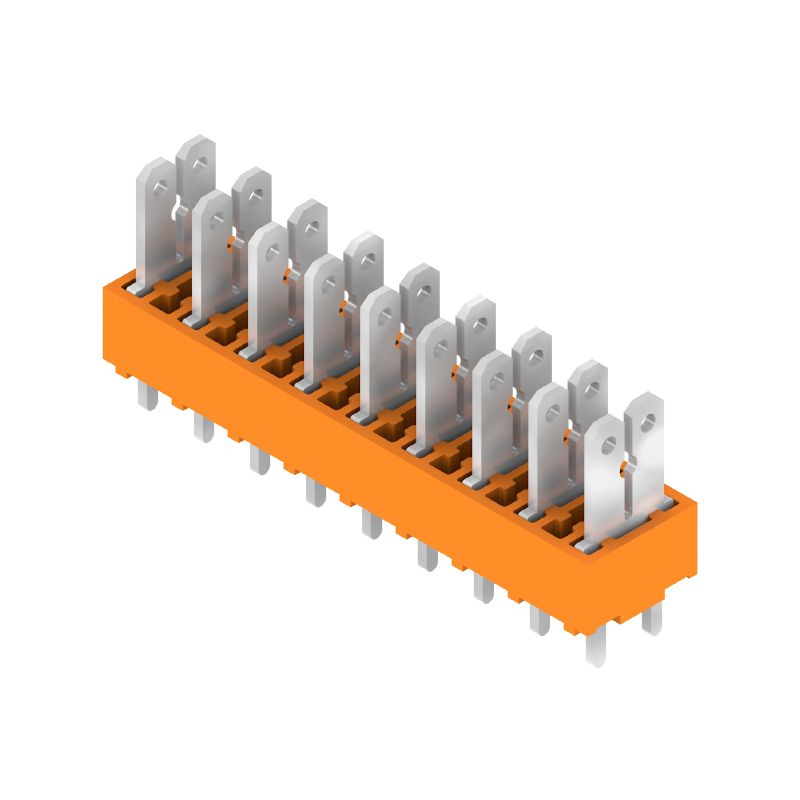

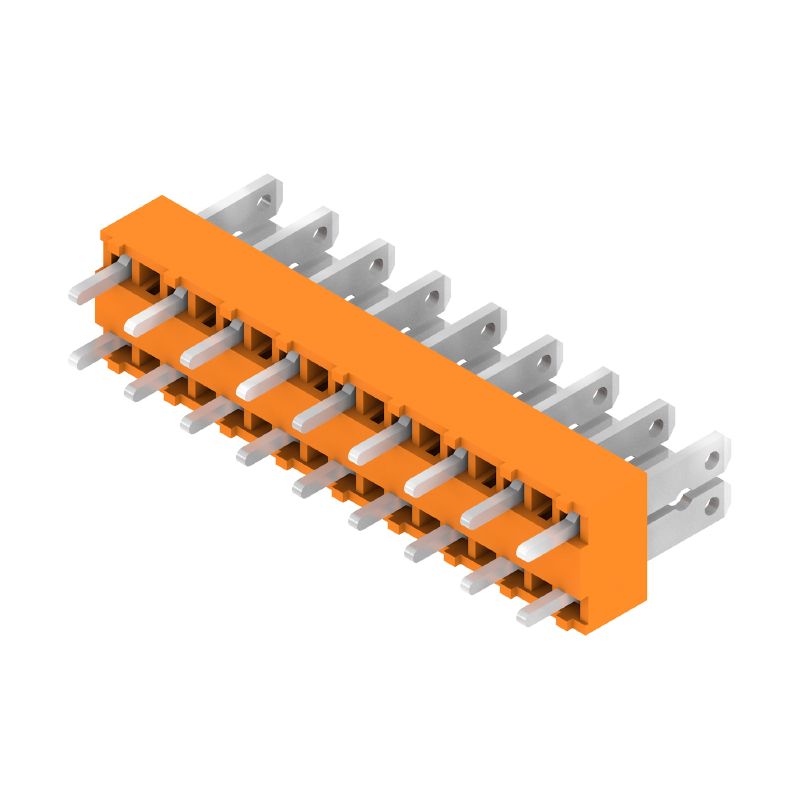

| Version | Printed circuit board terminals, 5.00 mm, Number of poles: 9, 180°, Solder pin length (l): 3.5 mm, tinned, orange, Flat-blade connection, Box |
| Order No. | 9500480000 |
| Type | PCF 5.00/09/180 3.5SN OR BX |
| GTIN (EAN) | 4008190549336 |
| Qty. | 50 adet |
| Product data |
IEC: 630 V / 24 A UL: 150 V / 15 A |
| Packaging | Box |
| Depth | 9,8 mm |
| Depth (inches) | 0,386 inch |
| Height | 18,4 mm |
| Height (inches) | 0,724 inch |
| Height of lowest version | 14,9 mm |
| Width | 44,8 mm |
| Width (inches) | 1,764 inch |
| Net weight | 7,36 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Product family | PCF |
| Wire connection method | Flat-blade connection |
| Mounting onto the PCB | THT solder connection |
| Conductor outlet direction | 180° |
| Pitch in mm (P) | 5 mm |
| Pitch in inches (P) | 0,197 " |
| Number of poles | 9 |
| Pin series quantity | 1 |
| Fitted by customer | No |
| Number of rows | 1 |
| Solder pin length (l) | 3,5 mm |
| Solder pin dimensions |
0.8 x 1.0 mm
0.75 x 0.9 mm |
| Solder eyelet hole diameter (D) | 1,3 mm |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Number of solder pins per pole | 2 |
| L1 in mm | 40 mm |
| L1 in inches | 1,575 " |
| Touch-safe protection acc. to DIN VDE 0470 | IP 00 |
| Protection degree | IP20 |
| Volume resistance | 1.20 mΩ |
| Insulating material | PA |
| Colour | orange |
| Colour chart (similar) | RAL 2000 |
| Insulating material group | I |
| Comparative Tracking Index (CTI) | ≥ 600 |
| UL 94 flammability rating | V-2 |
| Contact material | Cu-alloy |
| Contact surface | tinned |
| Layer structure of solder connection | 1.5...3 µm Ni / 5...7 µm Sn |
| Storage temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Operating temperature, min. | -50 °C |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, min. | -25 °C |
| Temperature range, installation, max. | 100 °C |
| Reference text |
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P) |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Rated current, min. number of poles (Tu=20°C) | 24 A |
| Rated current, max. number of poles (Tu=20°C) | 21 A |
| Rated current, min. number of poles (Tu=40°C) | 24 A |
| Rated current, max. number of poles (Tu=40°C) | 18 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Short-time withstand current resistance | 3 x 1s mit 192 A |
| Institute (CSA) | CSA |
| Certificate No. (CSA) | 12400-282 |
| Rated voltage (Use group B / CSA) | 150 V |
| Rated voltage (Use group D / CSA) | 300 V |
| Rated current (Use group B / CSA) | 15 A |
| Rated current (Use group D / CSA) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Institute (UR) | UR |
| Certificate No. (UR) | E60693 |
| Rated voltage (Use group B / UL 1059) | 150 V |
| Rated voltage (Use group D / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 15 A |
| Rated current (Use group D / UL 1059) | 10 A |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| Packaging | Box |
| VPE length | 150 mm |
| VPE width | 134 mm |
| VPE height | 36 mm |
| Test: Durability of markings |
|
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Notes |
|
| Approval/Certificate/Document of Conformity | [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_100739) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=9500480000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061)
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL BUILDING SAFETY EN](http://download.weidmueller.com/asset/download/file/38207) [FL APPL LED LIGHTING EN](http://download.weidmueller.com/asset/download/file/38275) [FL INDUSTR.CONTROLS EN](http://download.weidmueller.com/asset/download/file/38285) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) |
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
| ETIM 8.0 | EC002643 |
| ETIM 9.0 | EC002643 |
| ECLASS 9.0 | 27-44-04-01 |
| ECLASS 9.1 | 27-44-04-01 |
| ECLASS 10.0 | 27-44-04-01 |
| ECLASS 11.0 | 27-46-01-01 |
| ECLASS 12.0 | 27-46-01-01 |
| ECLASS 13.0 | 27-46-01-01 |
| ECLASS 14.0 | 27-46-01-01 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E60693 |
