Özellikler
| Order No. | 2855300000 |

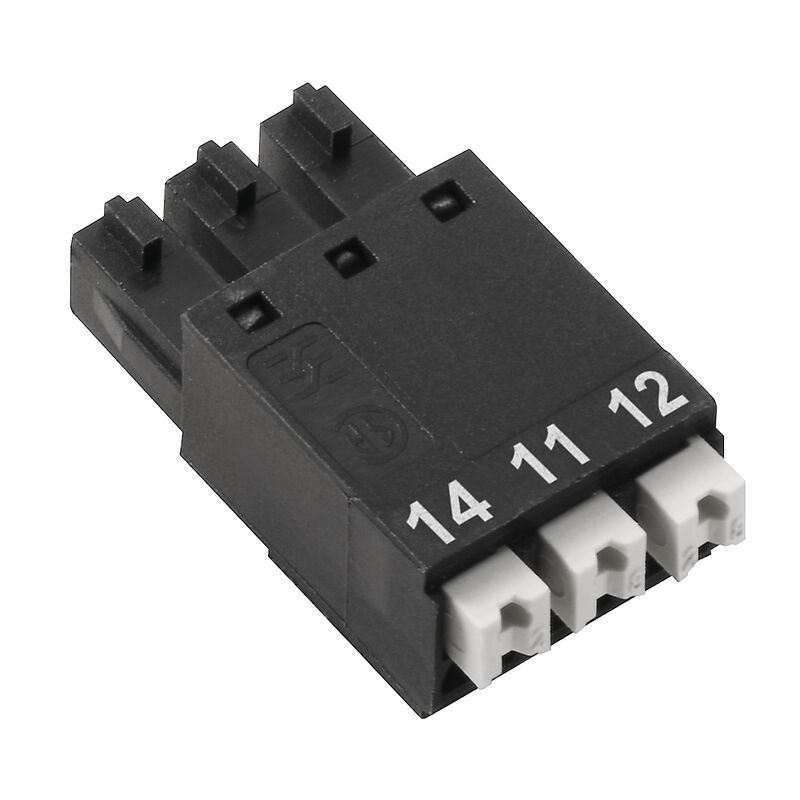

| Type | PLUG VPU AC |
| GTIN (EAN) | 4064675533283 |
| Qty. | 10 adet |
| Depth | 21,5 mm |
| Depth (inches) | 0,846 inch |
| Height | 8 mm |
| Height (inches) | 0,315 inch |
| Width | 11,6 mm |
| Width (inches) | 0,457 inch |
| Net weight | 2,1 g |
| Operating temperature | -40 °C...70 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Connection type | PUSH IN |
| Cross-section for connected wire, solid core, max. | 1,5 mm² |
| Cross-section for connected wire, solid core, min. | 0,14 mm² |
| Stripping length | 8 mm |
| Colour | black |
| Version |
Plug
printed |
| Rated voltage (AC) | 250 V |
| Colour | black |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000490 |
| ETIM 7.0 | EC000490 |
| ETIM 8.0 | EC000490 |
| ETIM 9.0 | EC000490 |
| ECLASS 9.1 | 27-13-92-90 |
| ECLASS 11.0 | 27-13-08-92 |
| ECLASS 12.0 | 27-17-90-90 |
| ECLASS 13.0 | 27-17-90-90 |
| ECLASS 14.0 | 27-17-90-90 |
| ROHS | Conform |
