Основные данные для заказа

Version

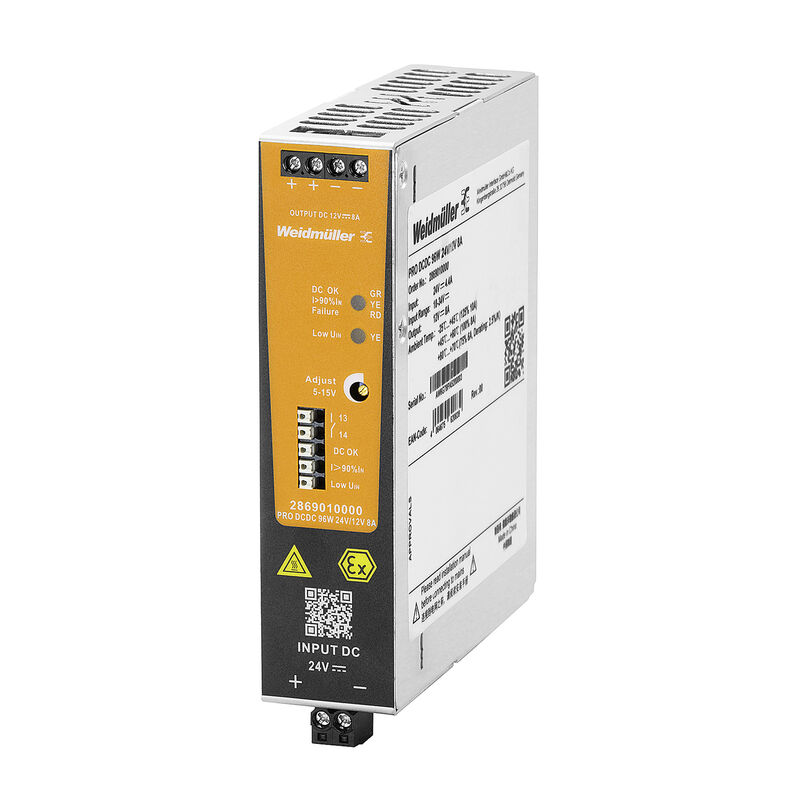

Преобразователь DC/DC
Order No.
2869000000
Type
PRO DCDC 96W 12V/12V 8A
GTIN (EAN)
4064675620822
Qty.
1 adet

Wymiary i masa

Depth
120 mm
Глубина (дюймов)
4,724 inch
Height
130 mm
Высота (в дюймах)
5,118 inch
Width
32 mm
Width (inches)
1,26 inch
Net weight
640 g

Temperatury

Storage temperature
-45 °C...85 °C
Operating temperature
-25 °C...70 °C
Humidity at operating temperature
5 - 95% rel. humidity
Start-up
≥ -40 °C

Zgodność produktu z wymogami środowiska naturalnego

RoHS Compliance Status
Zgodne, z wyłączeniem
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
832efd73-195b-4198-ad0c-1126d0bc238d
Product Carbon Footprint
  • Cradle to gate:
    13.590 kg CO2 eq.

Input

Connection system
Screw connection
Current consumption in relation to the input voltage
  • Voltage type:
    DC
  • Input voltage:
    12 V
  • Input current:
    9,5 A
DC input voltage range
9 ... 18 V DC
Input fuse (internal)
30A T
Input voltage, max.
18 V
Input voltage, min.
9 V
Inrush current
<4 A @ Nominal input voltage
Nominal power consumption
111 VA
Rated input voltage
12 V DC
Recommended back-up fuse
20 A (DI) / 16 A … 20 A (Char. B, C)
Wire connection method
Screw connection

Output

Carico capacitivo
unrestricted
Connection system
Screw connection

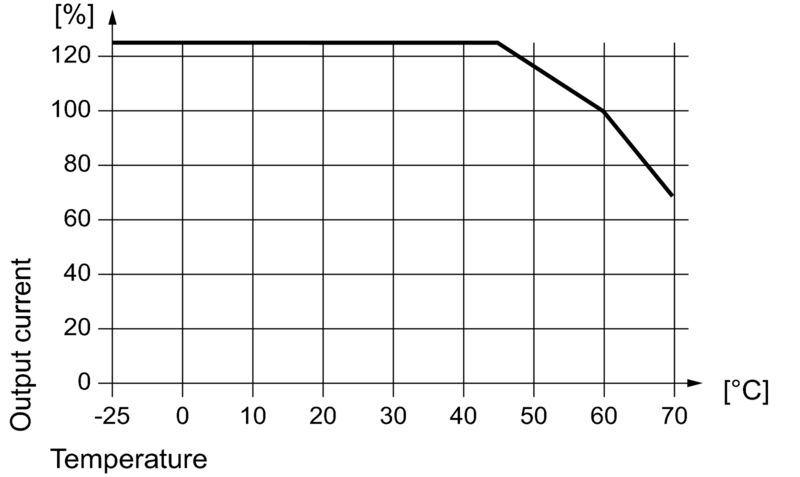

Continuous output current @ UNominal
8 A @ 60°C, 10 A @ 45°C, 6 A @ 70°C
DCL - 峰值负载备用
  • Boost duration:
    15 ms
  • Multiple of the rated current:
    600 %
Nennausgangsstrom @ UNenn
8 A
Output power
96 W
Output voltage, note
(adjustable via potentiometer on front)
Overload protection
Yes
Parallel connection option
yes, max. 3
Ramp-up time
≤ 100 ms
Rated output voltage
12 V DC
Residual ripple, breaking spikes
≤ 20 mVPP @full load
Výstupní napětí, max.
15 V
Výstupní napětí, min.
5 V
Výstupní proud, max.
9,6 A
Wire connection method
Screw connection
Защита от обратного напряжения
Ja
메인 장애 브리지 오버 시간
  • Mains failure bridge-over time, min.:
    3 ms
  • Tipo de tensión de entrada:
    DC
  • Input voltage:
    12 V
  • Courant de sortie:
    8 A
  • Kimeneti feszültség:
    12 V

General data

Alineable
No

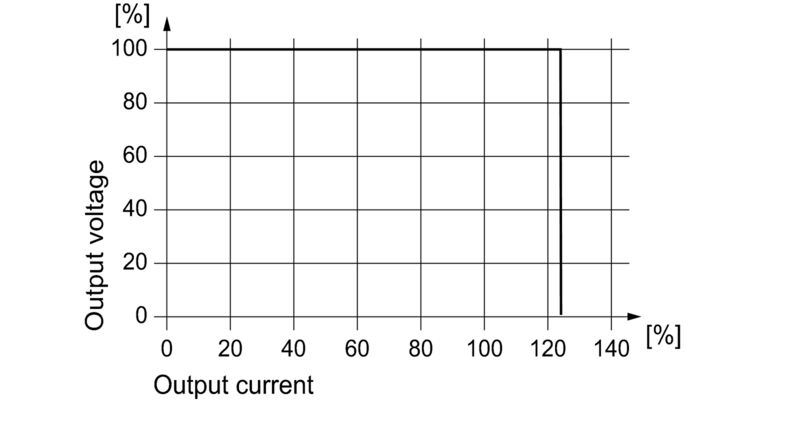

Current limiting
150% Iout
Degree of efficiency
> 86.5 %
Mounting position, installation notice
On TS 35 mounting rail, 50 mm clearance above and below for free air supply.
With a load ≥ 50 % of the rated current, keep at least 15 mm lateral spacing.
The device should be mounted vertically. For other mounting directions, derating to 75% of the load must be considered.
MTBF
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    1.200.000 h
  • Ambient temperature:
    25 °C
  • Input voltage:
    12 V
  • Output power:
    96 W
  • Duty cycle:
    100 %
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    750.000 h
  • Ambient temperature:
    40 °C
  • Input voltage:
    12 V
  • Output power:
    96 W
  • Duty cycle:
    100 %
Protection degree
IP20
Rövidzárlat-védelem
Yes
Schutz gegen Rückspannungen von der Last
18 V DC
Surge voltage category
II

EMC / shock / vibration

Interference immunity test acc. to
EN 61000-6-1:2019
EN 61000-6-2:2019
EN 61000-6-3
EN 61000-6-4
EN 55032
EN 55035
Noise emission in accordance with EN55032
Class B
Shock resistance IEC 60068-2-27
30 g in all directions
Vibration resistance IEC 60068-2-6
0.7 g

Insulation coordination

Insulation voltage input / earth
2 kV
Insulation voltage output / earth
0,5 kV
Insulation voltage, input/output
4 kV
Pollution severity
2
Protection class
III
Surge voltage category
II

Electrical safety (applied standards)

Safety transformers for switch-mode power supplies
符合 EN 61558-2-16 标准

Connection data (input)

Conductor cross-section, AWG/kcmil , max.
12 AWG
Conductor cross-section, AWG/kcmil , min.
30 AWG
Conductor cross-section, flexible , min.
0,2 mm²
Conductor cross-section, rigid , max.
4 mm²
Conductor cross-section, rigid , min.
0,2 mm²
Connection system
Screw connection
Number of terminals
2 (+,−)
Screwdriver blade
0.6 x 3.5
PH 1
PZ 1
Tightening torque, max.
0,5 Nm
Tightening torque, min.
0,4 Nm
Wire connection cross section, flexible (input), max.
4 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.
14 AWG
Conductor cross-section, AWG/kcmil , min.
24 AWG
Conductor cross-section, flexible , max.
2,5 mm²
Conductor cross-section, flexible , min.
0,2 mm²
Conductor cross-section, rigid , max.
2,5 mm²
Conductor cross-section, rigid , min.
0,2 mm²
Connection system
Screw connection
Number of terminals
4 (++ / --)
Screwdriver blade
0.6 x 3.5
Tightening torque, max.
0,5 Nm
Tightening torque, min.
0,4 Nm

Connection data (signal)

Number of terminals
5
Wire connection cross-section, flexible (signal), max.
1,5 mm²
Wire connection cross-section, flexible (signal), min.
0,2 mm²
Wire cross-section, AWG/kcmil , max.
14
Wire cross-section, AWG/kcmil , min.
28 mm²
Wire cross-section, solid , max.
1,5 mm²
Wire cross-section, solid , min.
0,2 mm²
Технология соединения
PUSH IN

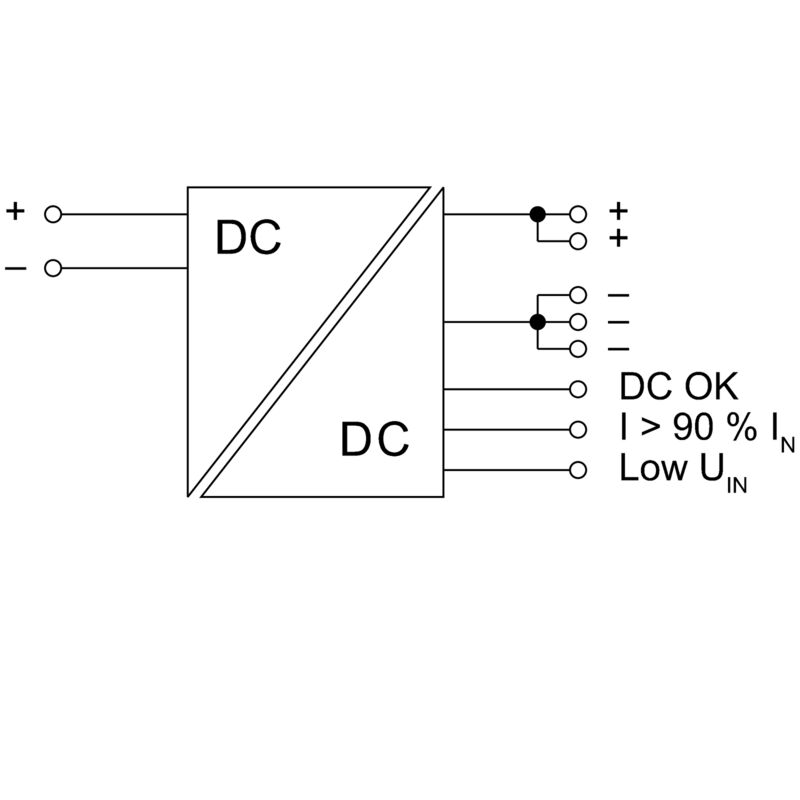

Signalling

Contatto equipotenziale
Yes
Uscita transistor, comando positivo
DC OK: 20 mA max., short-circuit-proof
I > 90%: 20 mA max., short-circuit-proof
Low UIN: 20 mA max., short-circuit-proof
접점 부하(NO 접점)
최대 30 V DC / 0.5 A
max. 50 V AC / 0.3 A
