Özellikler
| Version | Power supply, switch-mode power supply unit, 24 V |
| Order No. | 3025570000 |

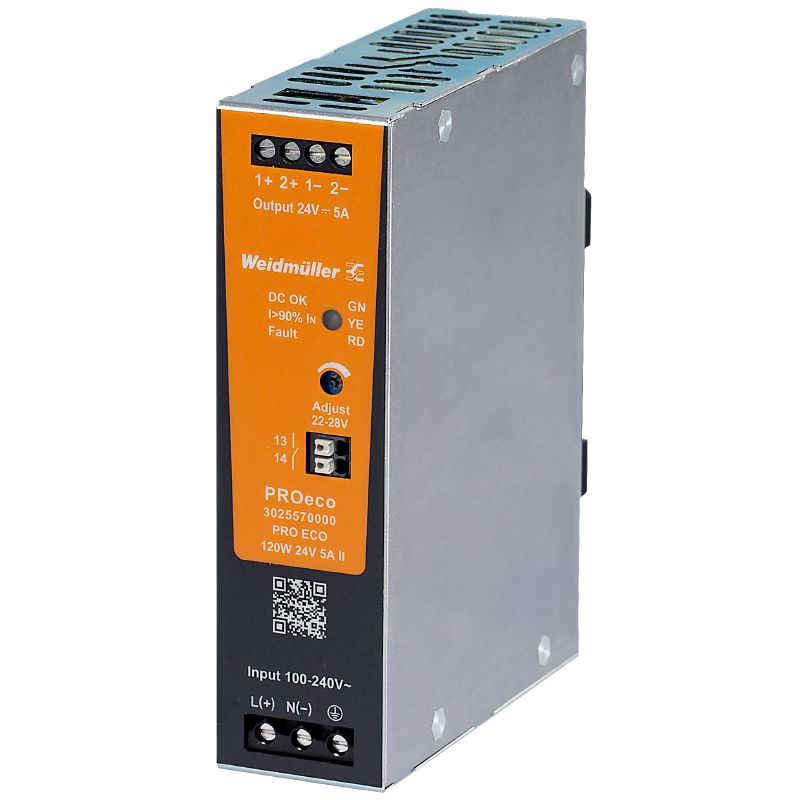

| Type | PRO ECO 120W 24V 5A II |
| GTIN (EAN) | 4099986951952 |
| Qty. | 1 adet |
| Depth | 100 mm |
| Depth (inches) | 3,937 inch |
| Height | 130 mm |
| Height (inches) | 5,118 inch |
| Width | 35 mm |
| Width (inches) | 1,378 inch |
| Net weight | 510 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Start-up | ≥ -40 °C |
| Humidity | 5…95 % rel. humidity, no condensation |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Lead monoxide 1317-36-8 |
| Certificate No. (cURus) | E255651 |
| AC input voltage range | 85...264 V AC (derating at 100 V AC) |
| Current consumption in relation to the input voltage |
|
| DC input voltage range | 110...370 V DC (derating at <120 V DC) |
| Frequency range AC | 45…65 Hz |
| Input fuse | internal |
| Inrush current (typ.) | 40 A |
| Line regulation (typ.) | 1 % |
| Load regulation (typ.) | 2 % |
| Nominal power consumption | 134,8 VA |
| Rated input voltage | 100...240 V AC / 120...340 V DC |
| Recommended back-up fuse |
3 A / DI, safety fuse 6 A, Char. B, circuit breaker 3…5 A, Char. C circuit breaker |
| Start-up time, max. | 1 s |
| Surge protection | Varistor |
| Wire connection method | Screw connection |
| Capacitive load | unrestricted |
| Continuous output current @ UNominal | 3.125 A @ 70 °C |
| Line regulation (typ.) | 1 % |
| Load regulation (typ.) | 2 % |
| Mains failure bridge-over time |
|
| Max. residual ripple | <50 mVPP / bandwidth 20 MHz |
| Nominal output current for Unom | 5 A @ 55 °C |
| Output power | 120 W |
| Output voltage, max. | 28 V |
| Output voltage, min. | 22 V |
| Parallel connection option | yes, max. 3 |
| Protection against inverse voltage | Yes |
| Ramp-up time | ≤ 100 ms |
| Rated output voltage | 24 V DC |
| Wire connection method | Screw connection |
| Degree of efficiency |
Typ.: 88,4% @ 120 V AC
Typ.: 90,1% @ 230 V AC |
| Earth leakage current, max. | 3,5 mA |
| Housing version | Metal, corrosion resistant |
| Humidity | 5…95 % rel. humidity, no condensation |
| Mounting position, installation notice | on terminal rail TS 35 |
| MTBF |
|
| Power factor |
|
| Power loss, idling | 1 W |
| Power loss, nominal load | 15 W |
| Protection against over-heating | Yes |
| Protection against reverse voltages from the load | 30…35 V DC |
| Protection degree | IP20 |
| Short-circuit protection | Yes |
| Surge voltage category | II |
| Interference immunity test acc. to |
EN 61000-4-2 (ESD)
EN 61000-4-3 (RS) IEC 61000-6-4 EN 61000-4-4 (burst) EN 61000-4-5 (surge) EN 61000-4-6 (conducted) EN61000-4-8 (Fields) EN 61000-4-11 (Dips) IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 |
| Limiting of mains voltage harmonic currents | According to EN 61000-3-2 |
| Noise emission in accordance with EN55032 | Class B |
| Shock resistance IEC 60068-2-27 | 30 g in all directions |
| Vibration resistance IEC 60068-2-6 | 0.7 g |
| Insulation voltage input / earth | 3 kV |
| Insulation voltage output / earth | 0,5 kV |
| Insulation voltage, input/output | 4 kV |
| Pollution severity | 2 |
| Protection class | I, with PE connection |
| Surge voltage category | II |
| Electrical machine equipment | Acc. to EN60204 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage |
SELV acc. to IEC 61010-1
PELV acc. to IEC 61010-2-201 |
| Safety transformers for switch-mode power supplies | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 26 AWG |
| Conductor cross-section, flexible , min. | 0,5 mm² |
| Conductor cross-section, rigid , max. | 6 mm² |
| Conductor cross-section, rigid , min. | 0,5 mm² |
| Number of terminals | 3 for L/N/PE |
| Screwdriver blade | 0.6 x 3.5 |
| Stripping length (input) | 6 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,5 Nm |
| Wire connection cross section, flexible (input), max. | 4 mm² |
| Conductor cross-section, AWG/kcmil , max. | 12 AWG |
| Conductor cross-section, AWG/kcmil , min. | 26 AWG |
| Conductor cross-section, flexible , max. | 4 mm² |
| Conductor cross-section, flexible , min. | 0,5 mm² |
| Conductor cross-section, rigid , max. | 6 mm² |
| Conductor cross-section, rigid , min. | 0,5 mm² |
| Number of terminals | 4 (++ / --) |
| Screwdriver blade | 0.6 x 3.5 |
| Stripping length (output) | 6 mm |
| Tightening torque, max. | 0,6 Nm |
| Tightening torque, min. | 0,5 Nm |
| Number of terminals | 2 |
| Stripping length (Signal) | 8 mm |
| Wire connection cross-section, flexible (signal), max. | 1,5 mm² |
| Wire connection cross-section, flexible (signal), min. | 0,2 mm² |
| Wire cross-section, AWG/kcmil , max. | 14 |
| Wire cross-section, AWG/kcmil , min. | 28 mm² |
| Wire cross-section, solid , max. | 1,5 mm² |
| Wire cross-section, solid , min. | 0,2 mm² |
| Contact load (NO contact) | max. 30 V DC / 1 A |
| Floating contact | Yes |
| LED green | Operating voltage OK |
| Approval/Certificate/Document of Conformity | [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_318978) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_319046) |
| User Documentation | [Operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_321723) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 9.0 | EC002540 |
| ECLASS 9.0 | 27-04-07-01 |
| ECLASS 9.1 | 27-04-07-01 |
| ECLASS 10.0 | 27-04-07-01 |
| ECLASS 11.0 | 27-04-07-01 |
| ECLASS 12.0 | 27-04-07-01 |
| ECLASS 13.0 | 27-04-07-01 |
| ECLASS 14.0 | 27-04-07-01 |
| Approvals |    |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (cURus) | E255651 |
| Certificate no. (cULus) | E258476 |
