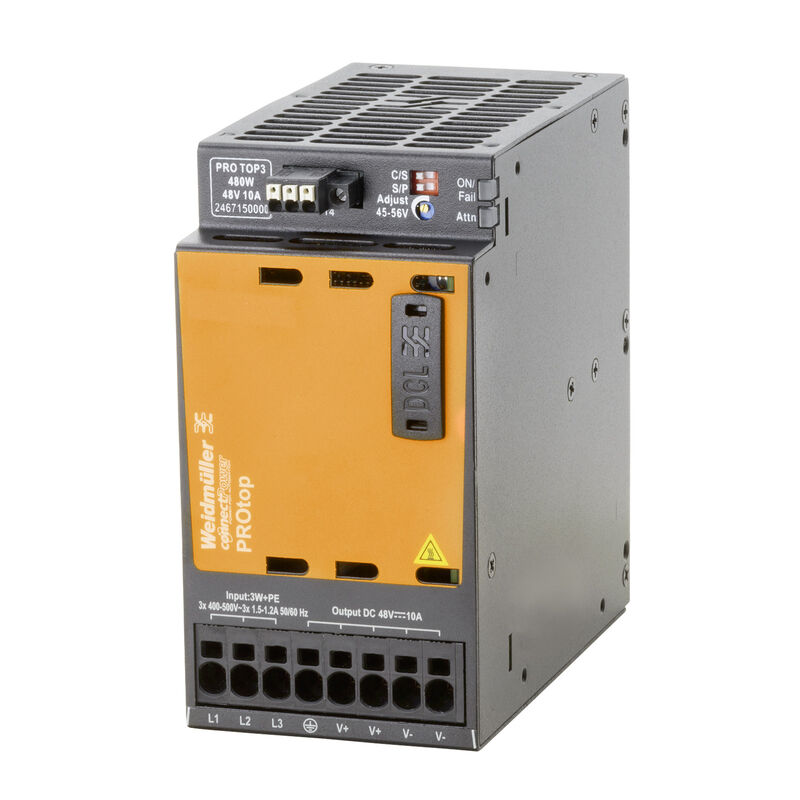

PRO TOP3 480W 48V 10A

Power supply, switch-mode power supply unit, 48 V

Ürün No. 2467150000

Özellikler

General ordering data

Version	Power supply, switch-mode power supply unit, 48 V
Order No.	2467150000
Type	PRO TOP3 480W 48V 10A
GTIN (EAN)	4050118482058
Qty.	1 adet

Dimensions and weights

Depth	125 mm
Depth (inches)	4,921 inch
Height	130 mm
Height (inches)	5,118 inch
Width	68 mm
Width (inches)	2,677 inch
Net weight	1.645 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-25 °C...70 °C
Humidity at operating temperature	5...95 %, no condensation

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1
SCIP	6d8cdf22-8230-4af8-86c8-3558c716666d

Input

AC input voltage range	3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC
Connection system	PUSH IN
Current consumption in relation to the input voltage	Voltage type: 3-phase AC Input voltage: 320 V Input current: 2 A Voltage type: DC Input voltage: 400 V Input current: 1,5 A
DC input voltage range	450...800 V DC
Frequency range AC	45…65 Hz
Input fuse (internal)	No
Inrush current	Max. 10 A
Nominal power consumption	510,6 VA
Rated input voltage	3x 400...3x 500 V AC (wide-range input)
Recommended back-up fuse	3 - 5 A, Char C
Surge protection	Varistor

Output

Connection system	PUSH IN
DCL - peak load reserve	Boost duration: 5 s Multiple of the rated current: 150 % Boost duration: 15 ms Multiple of the rated current: 500 %
Mains failure bridge-over time	> 20 ms @ 115V AC/ 230 VAC
Nominal output current for U_nom	10 A @ 60 °C
Output power	480 W
Output voltage, max.	56 V
Output voltage, min.	45 V
Output voltage, note	adjustable with potentiometer or comunication module
Parallel connection option	yes, max 10
Protection against inverse voltage	Yes
Ramp-up time	≤ 100 ms
Rated output voltage	48 V DC ± 1 %
Residual ripple, breaking spikes	<50 mVss @ U_Nenn, Full Load

General data

AC failure bridging time @ I_nom	> 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Conformal coating	No
Degree of efficiency	94%
Derating	> 60°C (2.5% / 1°C)
Earth leakage current, max.	3,5 mA
Housing version	Metal, corrosion resistant
MTBF	According to Standard: SN 29500 Operating time (hours), min.: 1.100.000 h Ambient temperature: 25 °C Input voltage: 400 V Output power: 480 W Duty cycle: 100 % According to Standard: SN 29500 Operating time (hours), min.: 526.000 h Ambient temperature: 40 °C Input voltage: 400 V Output power: 480 W Duty cycle: 100 %
Power factor (approx.)	> 0.75 @ 3x400 V AC
Protection degree	IP20
Short-circuit protection	Yes internal
Start-up	≥ -40 °C
Surge voltage category	III II
Weight	1.450 g

EMC / shock / vibration

Interference immunity test acc. to	EN 55024 EN 55032 (EN 55022) EN 61000-6-1, 2, 3, 4
Shock resistance IEC 60068-2-27	30 g in all directions
Vibration resistance IEC 60068-2-6	2.3 g (on DIN rail) 4 g (with direct mounting)

Insulation coordination

Insulation voltage input / earth	3,2 kV
Insulation voltage output / earth	0,5 kV
Insulation voltage, input/output	3,5 kV
Pollution severity	2
Protection class	I, with PE connection
Surge voltage category	III II

Electrical safety (applied standards)

Electrical machine equipment	Acc. to EN60204
For use with electronic equipment	Acc. to EN50178 / VDE0160
Protection against dangerous shock currents	Acc. to VDE0106-101
Protective separation / protection against electrical shock	VDE0100-410 / acc. to DIN57100-410
Safety extra-low voltage	SELV acc. to IEC 60950-1 PELV according to EN 60204-1
Safety transformers for switch-mode power supplies	According to EN 61558-2-16

Connection data (input)

Conductor cross-section, AWG/kcmil , max.	8 AWG
Conductor cross-section, AWG/kcmil , min.	20 AWG
Conductor cross-section, flexible , min.	0,2 mm²
Conductor cross-section, rigid , max.	10 mm²
Conductor cross-section, rigid , min.	0,2 mm²
Connection system	PUSH IN
Number of terminals	4 for L1/L2/L3/PE
Wire connection cross section, flexible (input), max.	6 mm²

Connection data (output)

Conductor cross-section, AWG/kcmil , max.	8 AWG
Conductor cross-section, AWG/kcmil , min.	20 AWG
Conductor cross-section, flexible , max.	6 mm²
Conductor cross-section, flexible , min.	0,2 mm²
Conductor cross-section, rigid , max.	10 mm²
Conductor cross-section, rigid , min.	0,2 mm²
Connection system	PUSH IN
Number of terminals	4 (++ / --)

Connection data (signal)

Wire connection cross-section, flexible (signal), max.	1,5 mm²
Wire connection cross-section, flexible (signal), min.	0,14 mm²
Wire connection method	PUSH IN
Wire cross-section, AWG/kcmil , max.	16
Wire cross-section, AWG/kcmil , min.	26 mm²
Wire cross-section, solid , max.	1,5 mm²
Wire cross-section, solid , min.	0,14 mm²

Signalling

Floating contact	Yes
LED green/red	Green: Operation (failure-free) Flashing green: advance warning I>90% Green/red flashing: output switched off (switch-off mode) Flashing red: overload/error
Status relay (max. load)	Output voltage OK (30 V DC / 1 A)

Approbations

Certificate no. (cULus)	E258476
Certificate no. (cULusEX)	E470829
Institute (cULus)	CULUS
Institute (cULusEX)	CULUSEX

Downloads

Approval/Certificate/Document of Conformity	[Lloyds Register Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_305375) [DNV Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_305414) [RINA Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_305415) [UL 508 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306002) [UL 121201 CL1 DIV 2 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306011) [ABS Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306100) [BV Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306101) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_85824) [UK Conformity Assessed](https://mdcop.weidmueller.com/mediadelivery/asset/900_310856)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66149)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.2467150000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2467150000)
User Documentation	[Operating instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_86890) [IO-Link Register Description PROtop](https://mdcop.weidmueller.com/mediadelivery/asset/900_102811)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[Produkt Information PROTOP DE](http://download.weidmueller.com/asset/download/file/86233) [Produkt Information PROTOP EN](http://download.weidmueller.com/asset/download/file/86234)

Classifications

ETIM 6.0	EC002540
ETIM 7.0	EC002540
ETIM 8.0	EC002540
ETIM 9.0	EC002540
ECLASS 9.0	27-04-07-01
ECLASS 9.1	27-04-07-01
ECLASS 10.0	27-04-07-01
ECLASS 11.0	27-04-07-01
ECLASS 12.0	27-04-07-01
ECLASS 13.0	27-04-90-02

Approvals

Approvals	![ABS](/picture/ABS.gif) ![BURVER](/picture/BURVER.gif) ![CCS](/picture/CCS.gif) ![CULUS](/picture/CULUS.gif) ![CULUSEX](/picture/CULUSEX.gif) ![DETNORVER](/picture/DETNORVER.gif) ![LLOYDSREG](/picture/LLOYDSREG.gif) ![RINA](/picture/RINA.gif) ![TUEV](/picture/TUEV.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate no. (cULus)	E258476
Certificate no. (cULusEX)	E470829
