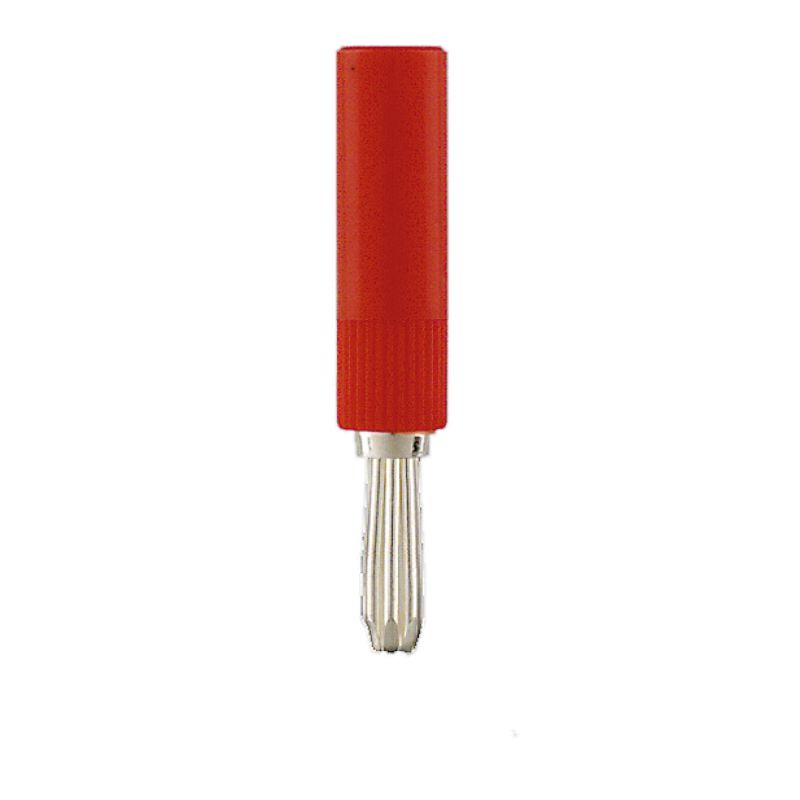

PS 4 F.STB 4

Test adapter (terminal), 230 V

Ürün No. 0299600000

Özellikler

General ordering data

Version	Test adapter (terminal), 230 V
Order No.	0299600000
Type	PS 4 F.STB 4
GTIN (EAN)	4008190074043
Qty.	20 adet

Dimensions and weights

Depth	42 mm
Depth (inches)	1,654 inch
Height	7,7 mm
Height (inches)	0,303 inch
Width	7,7 mm
Width (inches)	0,303 inch
Net weight	3,16 g

Temperatures

Continuous operating temp., min.	-50 °C
Continuous operating temp., max.	100 °C

Environmental Product Compliance

RoHS Compliance Status	Compliant with exemption
RoHS Exemption (if applicable/known)	6c
REACH SVHC	Lead 7439-92-1
SCIP	8d191f1d-272c-40a1-8319-7de6fe5d9746

Material data

Material	Polyamide 66
Colour	red
UL 94 flammability rating	V-2

System specifications

Version

Test plug

Additional technical data

Installation advice	Direct mounting
Type of fixing	Plugged
Type of mounting	Plugged
With snap-in pegs	No

Conductors for clamping (rated connection)

Connection cross-section, stranded, max.	4 mm²
Stripping length	5 mm
Type of connection	Plug-in connection
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross section, finely stranded, min.	0,5 mm²

Dimensions

Pitch in mm (P)

7,7 mm

General

Installation advice	Direct mounting
Number of poles	1
Operating temperature range, max.	100 °C

Rating data

Rated voltage

230 V

Downloads

Engineering Data	[CAD data -- 02965_PS_4_F.STB_4_DXF.dxf](https://mdcop.weidmueller.com/mediadelivery/asset/900_38105) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_58964)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.0299600000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=0299600000)
User Documentation	[StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC002555
ETIM 7.0	EC002555
ETIM 8.0	EC002555
ETIM 9.0	EC002555
ECLASS 9.0	27-14-11-48
ECLASS 9.1	27-14-11-48
ECLASS 10.0	27-14-11-48
ECLASS 11.0	27-14-11-48
ECLASS 12.0	27-14-11-48
ECLASS 13.0	27-25-03-04
ECLASS 14.0	27-25-03-04

Approvals

ROHS

Conform

aksesuarıdır
