Özellikler

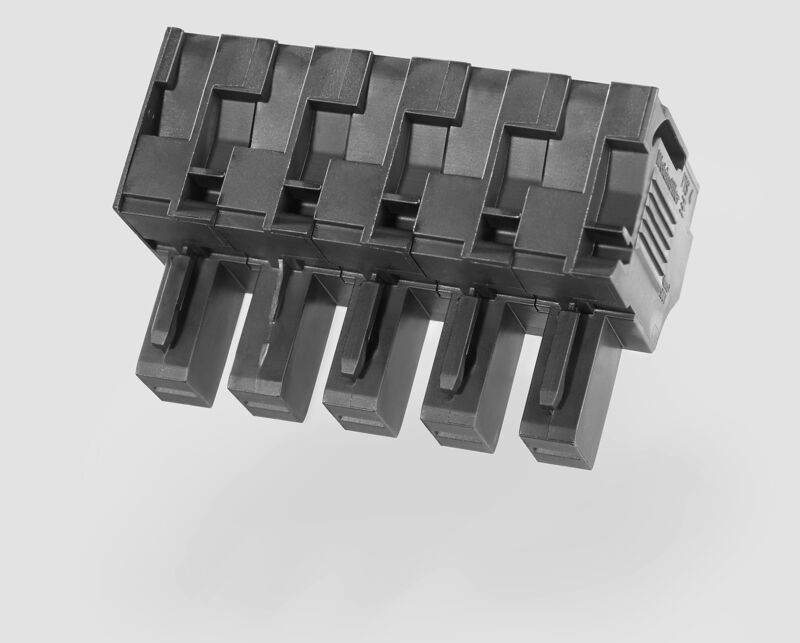

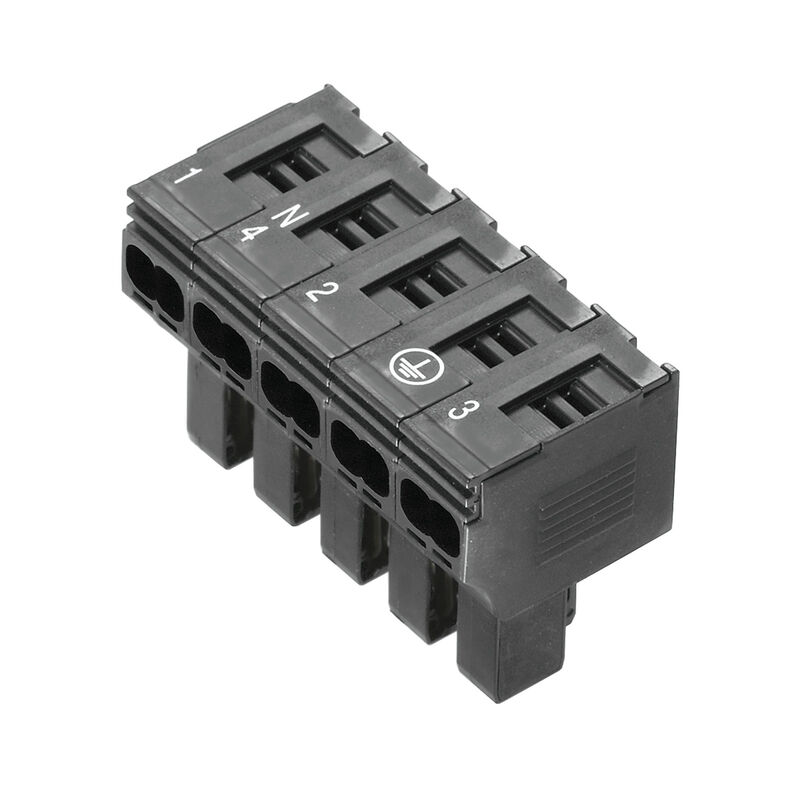

| Version | Field Power® plug-in connector, 3-phase AC, IP20, Polyamide, PUSH IN, Number of poles : 2 x 5 |
| Order No. | 1952130000 |
| Type | PTDS 4 |
| GTIN (EAN) | 4032248632084 |
| Qty. | 10 adet |

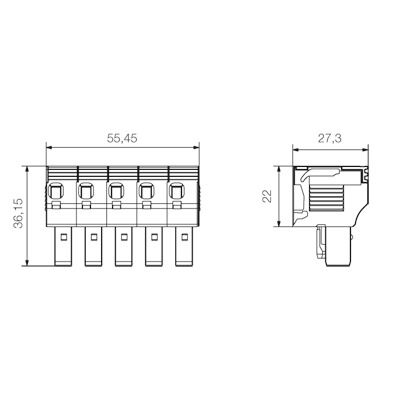

| Depth | 36,15 mm |
| Depth (inches) | 1,423 inch |
| Height | 27,3 mm |
| Height (inches) | 1,075 inch |
| Width | 55,45 mm |
| Width (inches) | 2,183 inch |
| Net weight | 45,9 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...80 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Certificate No. (cURus) | E60693 |
| Institute (cURus) | CURUS |
| Blade size, PUSH IN connection | 3.0 x 0.5 mm |
| Clamping range, max. PUSH IN connection | 4 mm² |
| Clamping range, min. PUSH IN connection | 0,5 mm² |
| Cross-section for connected wire PUSH IN connection, solid, min. | 0,5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/1, PUSH IN connection, min. | 0,5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 12mm with plastic collar, DIN 46228/4, PUSH IN connection, min. | 0,5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/1, PUSH IN connection, min. | 0,5 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible with wire-end ferrules, 8mm with plastic collar, DIN 46228/4, PUSH IN connection, min. | 0,5 mm² |
| Cross-section for connected wire, flexible, PUSH IN connection, max. | 4 mm² |
| Cross-section for connected wire, flexible, PUSH IN connection, min. | 0,5 mm² |
| Cross-section for connected wire, PUSH IN connection, solid, max. | 4 mm² |
| Finely-stranded flexible, max. PUSH IN connection | 4 mm² |
| Finely-stranded flexible, min. PUSH IN connection | 0,5 mm² |
| Stripping length, PUSH IN connection | 12 mm |
| Wire connection cross section, stranded, PUSH IN connection, max. | 4 mm² |
| Wire connection cross section, stranded, PUSH IN connection, min. | 0,5 mm² |
| Connection data - plug-in connector |
|
| Insulating material | Polyamide |
| Silicone | No |
| Colour | black |
| Protection degree | IP20 |
| UL 94 flammability rating | V-0 |
| Type of mounting | Plugged |
| Can be coded |
Yes
Coded on PE |
| Test point | 2 mm |
| Voltage type | 3-phase AC |
| Number of poles | 2 x 5 |
| Number of connections / pole | 2 |
| Wire connection method | PUSH IN |
| Conductor outlet direction | 90° |
| Rated data acc. to IEC for plug-in connector |
|
| Rated data acc. to UL for plug-in connector |
|
| Approval/Certificate/Document of Conformity |
[UL Certificate FieldPower® Box and accessories](https://mdcop.weidmueller.com/mediadelivery/asset/900_35363)
[UL Certificate FieldPower® terminals and plug-in connectors](https://mdcop.weidmueller.com/mediadelivery/asset/900_252845) [Manufacturer's Declaration FieldPower® plug-in connectors and HQ adapters](https://mdcop.weidmueller.com/mediadelivery/asset/900_42269) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79686) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1952130000) |
| User Documentation | [Manual FieldPower® PTS 4 and PTDS 4](https://mdcop.weidmueller.com/mediadelivery/asset/900_252970) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002943 |
| ETIM 7.0 | EC002943 |
| ETIM 8.0 | EC002943 |
| ETIM 9.0 | EC002943 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-03-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| ECLASS 14.0 | 27-44-02-92 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate No. (cURus) | E60693 |
