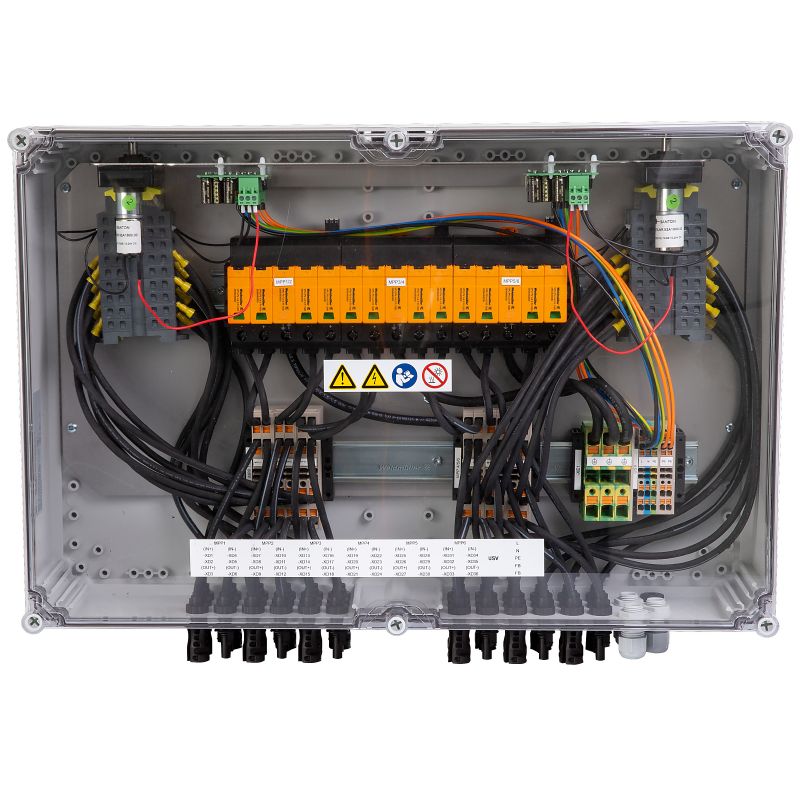

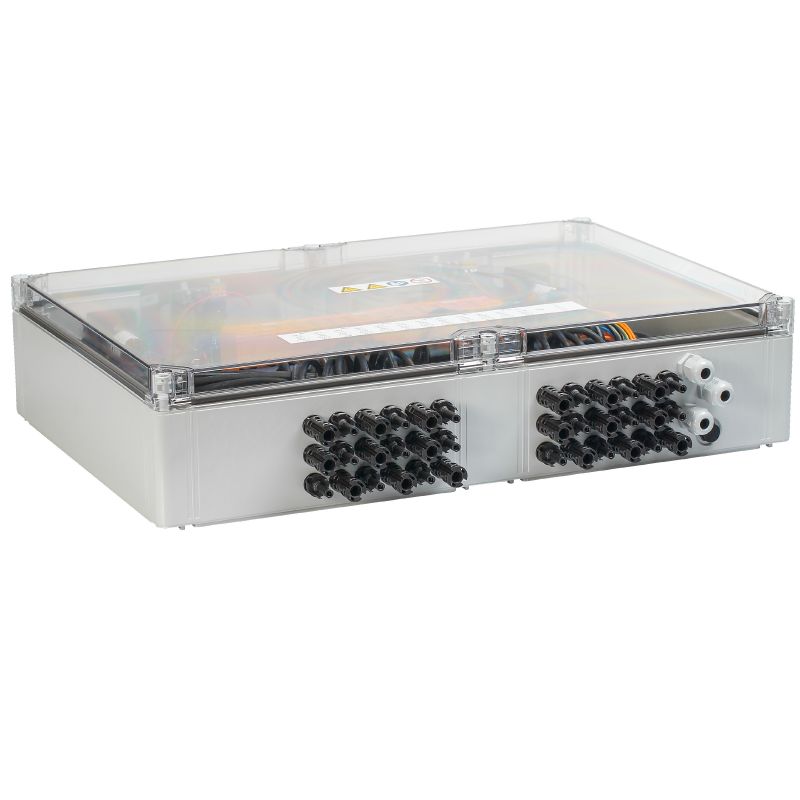

PVC DC 2I 1O 6MPP RD SPD1R EVO 11

Photovoltaics, Combiner Box, Fireman's switch, 1100 V, 6 MPP´s, 2 Inputs / 1 Output per MPP, Remote disconnector, Surge protection I / II, MC4-Evo 2

Ürün No. 8000111274

Version	Photovoltaics, Combiner Box, Fireman's switch, 1100 V, 6 MPP´s, 2 Inputs / 1 Output per MPP, Remote disconnector, Surge protection I / II, MC4-Evo 2
Order No.	8000111274
Type	PVC DC 2I 1O 6MPP RD SPD1R EVO 11
GTIN (EAN)	4099986883994
Qty.	1 adet

Ambient temperature	-20 °C...+50 °C
Humidity	5...95 %, no condensation

Approvals

EN 61439-2
IEC 61439-2
OVE-Directive R 11-1:2022-05-01

Time interval

5 years

Current per Maximum Power Point, max.	41 A
Rated DC current per connection	Current per string, max.: 41 A
Rated short-term current resistance	Rated current: 51,25 A
Rated DC voltage	1.100 V
Switching disconnector capacity	DC-PV1 IEC 60947-3

Connection type string	Plug MC4-Evo 2
Enclosure attachment	Via mounting foots
Impact resistance	IK08 in accordance with IEC 62208 IK10 in accordance with IEC 62262
Insulating material	Polyester glass-fibre reinforced, Polycarbonate
Protection class	II
Switch disconnector execution	Remote disconnector inside enclosure
Type of mounting	Fixing lugs

Installation location	Protected outdoor area (Land and Sea)
Protection degree	IP65

Amount of maximum power points	6 MPP
DC Input + & -	Wire connection: Type of connection: Stäubli MC4-Evo 2 connector Wire cross-section, min.: 2,5 mm² Wire cross-section, max.: 6 mm² Cable entry: Number of cable entries: 12
Functional earth connector	Cable entry: Number of cable entries: 1 Wire connection: Type of connection: Tension clamp connection with actuator Flexible, max. H05(07) V-K: 1,5 mm² w. wire end ferrule, DIN 46228 pt 1, max.: 1,5 mm²
Fuse type	Neither fuse cartridge nor holder
Max. number of DC inputs	per Maximum Power Point 2 inputs connected in parallel
Surge protection auxiliary contact	Cable entry: Number of cable entries: 1 Wire connection: Type of connection: Tension clamp connection with actuator Flexible, max. H05(07) V-K: 1,5 mm² w. wire end ferrule, DIN 46228 pt 1, max.: 1,5 mm²

DC Output + & -	Wire connection: Type of connection: Stäubli MC4-Evo 2 connector Wire cross-section, min.: 2,5 mm² Wire cross-section, max.: 6 mm²
Max. number of DC outputs	per Maximum Power Point 1 output

Automatic reclosing after voltage drop	Yes
Number of operating cycles	10000
Control voltage	100 V AC - 250 V AC 50/60Hz
Remote disconnector auxiliary contact	Cable entry: Number of cable entries: 1 Wire connection: Type of connection: Tension clamp connection with actuator Flexible, max. H05(07) V-K: 4 mm² w. wire end ferrule, DIN 46228 pt 1, max.: 4 mm²

Discharge current I_n (8/20 µs)	20 kA
Discharge current, max. (8/20 µs)	40 kA
Lightning test current I_imp (10/350 µs)	6.25 kA
Maximum continuous operating voltage DC UCPV mode +/-, -/PE, +/PE	1.100 V
Protection level U_p (+/- , -/PE , +/PE)	≤ 3.8 kV
Protection level U_p (+/-)	≤ 3.8 kV
Protection level U_p (+/PE)	≤ 3.8 kV
Protection level U_p (-/PE)	≤ 3.8 kV
PV system voltage, max. U_cpv	1.100 V
Requirements class	Type I/II
Short-circuit curent I_SCPV	11.000 A
Standby power consumption P_C	<0.2 W
Surge protection DC side	1000 V type I + II
Total discharge current I_total ( 8/20µs)	50 kA
Total discharge current I_total (10/350µs)	12,5 kA

Approval/Certificate/Document of Conformity	[Declaration of conformity for PV fireman switches](https://mdcop.weidmueller.com/mediadelivery/asset/900_307706)
Engineering Data	[Schematic diagram](https://mdcop.weidmueller.com/mediadelivery/asset/900_310867)
User Documentation	[Manual PV Next String Combiner Box](https://mdcop.weidmueller.com/mediadelivery/asset/900_96571) [MANUAL PV NEXT IT/ES/FR](https://mdcop.weidmueller.com/mediadelivery/asset/900_153695)
White paper	[Fact Sheet DE PV Feuerwehrschalter](https://mdcop.weidmueller.com/mediadelivery/asset/900_310692) [Fact Sheet EN PV Fireman switch](https://mdcop.weidmueller.com/mediadelivery/asset/900_310693)
