Özellikler
| Version | 0.14mm², 10mm², Square crimp |
| Order No. | 1989310000 |

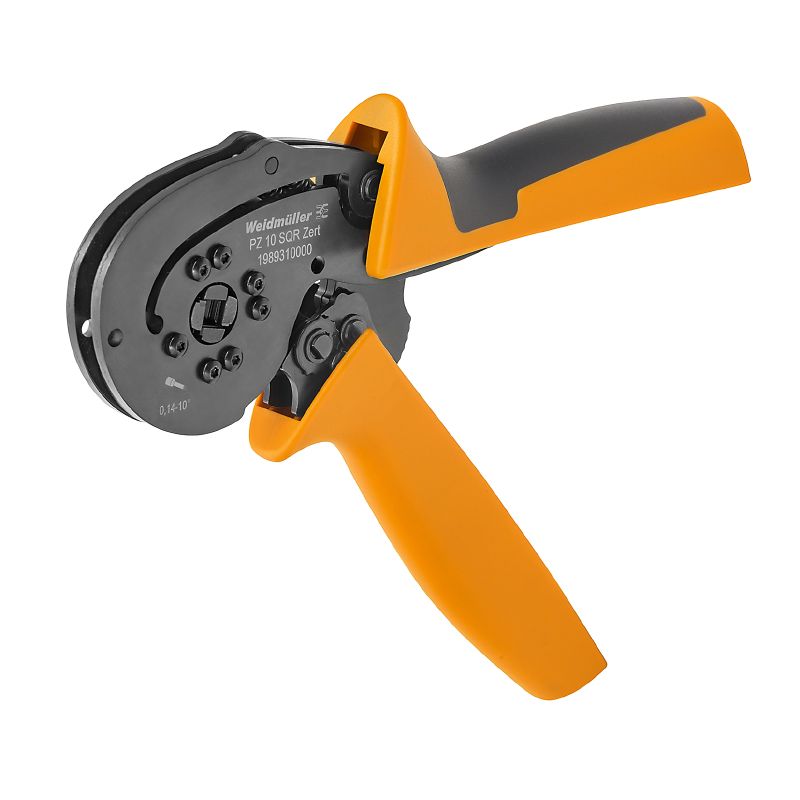

| Type | PZ 10 SQR ZERT |
| GTIN (EAN) | 4050118373660 |
| Qty. | 1 adet |
| Width | 195 mm |
| Width (inches) | 7,677 inch |
| Net weight | 510 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
| Description of article | (1)Crimping tool |
| Conductor cross-section, max. AWG | AWG 8 |
| Conductor cross-section, min. AWG | AWG 26 |
| Crimping range, max. | 10 mm² |
| Crimping range, min. | 0,14 mm² |
| Type of contact | Wire-end ferrules with/without plastic collars |
| Crimping type/profile | Square crimp |
| User Documentation | [Manual](https://mdcop.weidmueller.com/mediadelivery/asset/900_101186) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000168 |
| ETIM 7.0 | EC000168 |
| ETIM 8.0 | EC000168 |
| ETIM 9.0 | EC000168 |
| ECLASS 9.0 | 21-04-38-11 |
| ECLASS 9.1 | 21-04-38-11 |
| ECLASS 10.0 | 21-04-38-11 |
| ECLASS 11.0 | 21-04-38-11 |
| ECLASS 12.0 | 21-04-38-11 |
| ECLASS 13.0 | 21-04-38-11 |
| ECLASS 14.0 | 21-04-38-11 |
