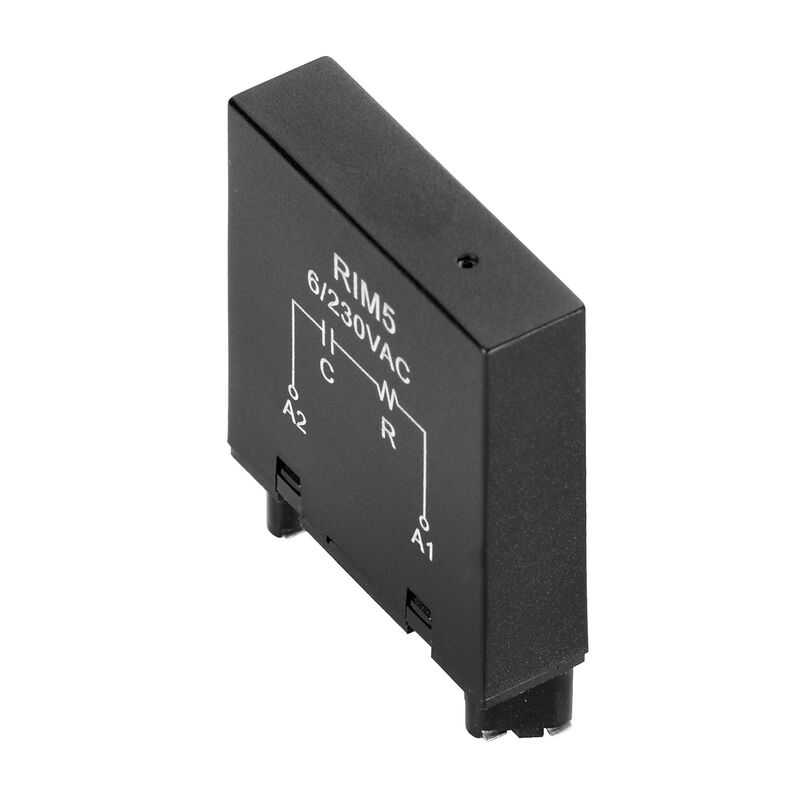

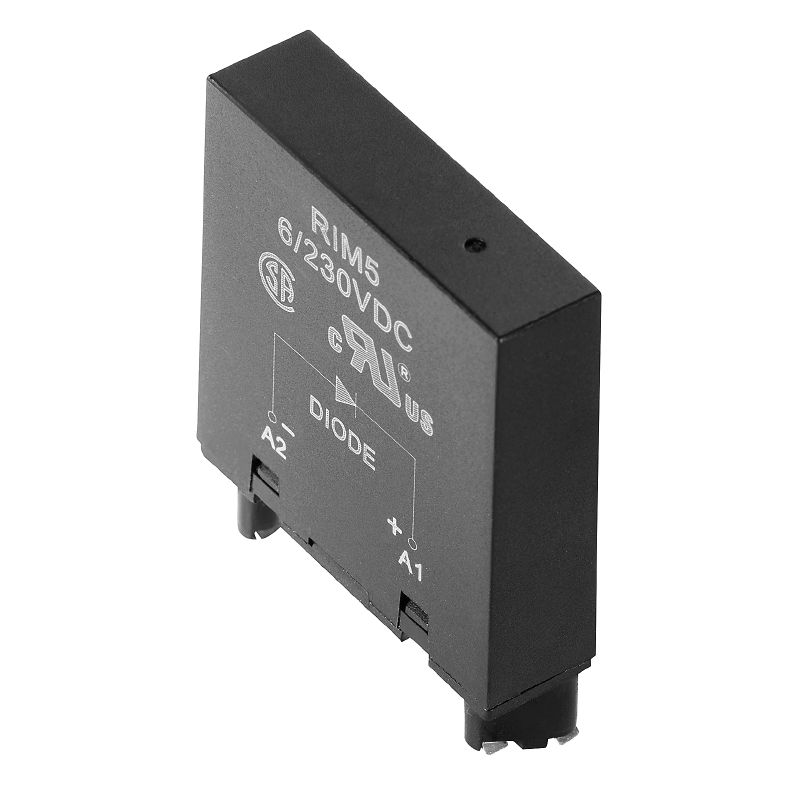

RIM 5 6/230VAC

D-SERIES, RC filter, Rated control voltage: 6…230 V AC, Plug-in connection

Ürün No. 1174670000

Özellikler

General ordering data

Version	D-SERIES, RC filter, Rated control voltage: 6…230 V AC, Plug-in connection
Order No.	1174670000
Type	RIM 5 6/230VAC
GTIN (EAN)	4032248971312
Qty.	10 adet

Dimensions and weights

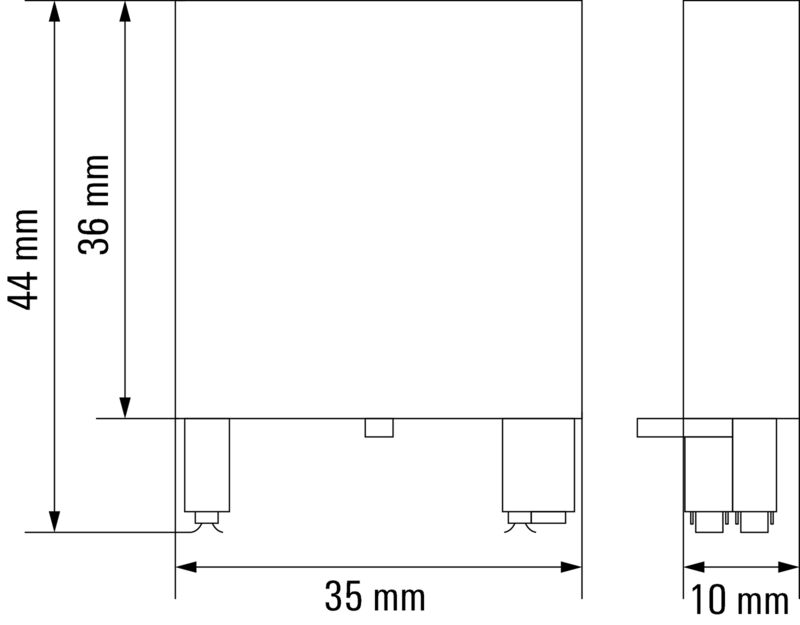

	44 mm
Depth (inches)	1,732 inch
Height	10 mm
Height (inches)	0,394 inch
Width	35 mm
Width (inches)	1,378 inch
Net weight	5,7 g

Rated data UL

Certificate No. (cURus)

E312083

Control side

Rated control voltage	6…230 V AC
Status indicator	No
Protective circuit	RC element

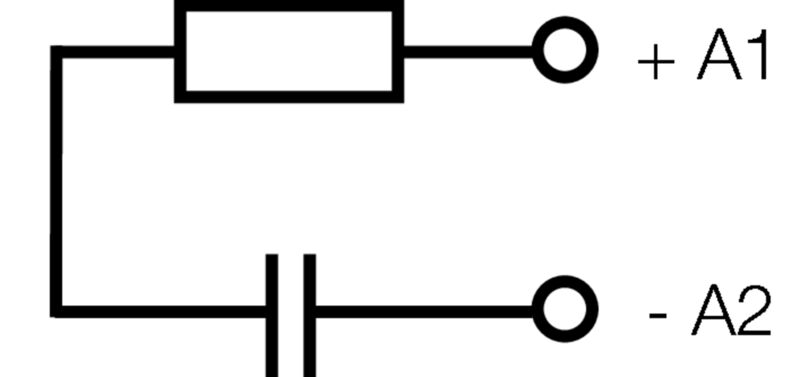

RC filter	4.7 kΩ / 10 nF

General data

Colour	black
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-2
