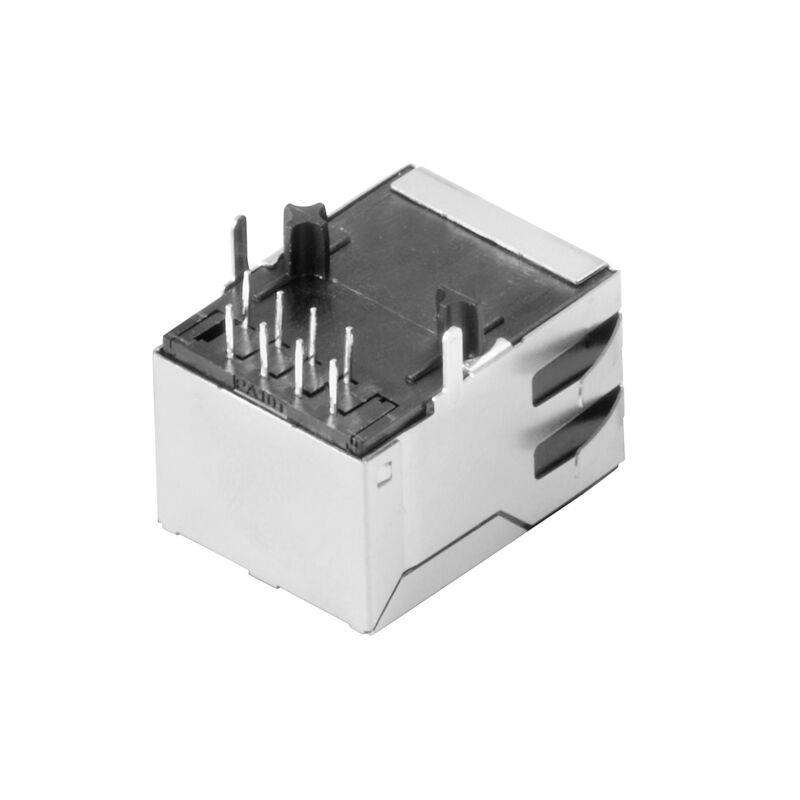

RJ45M R1D 3.2E4N RL
RJ45M R1D 3.2E4N RL

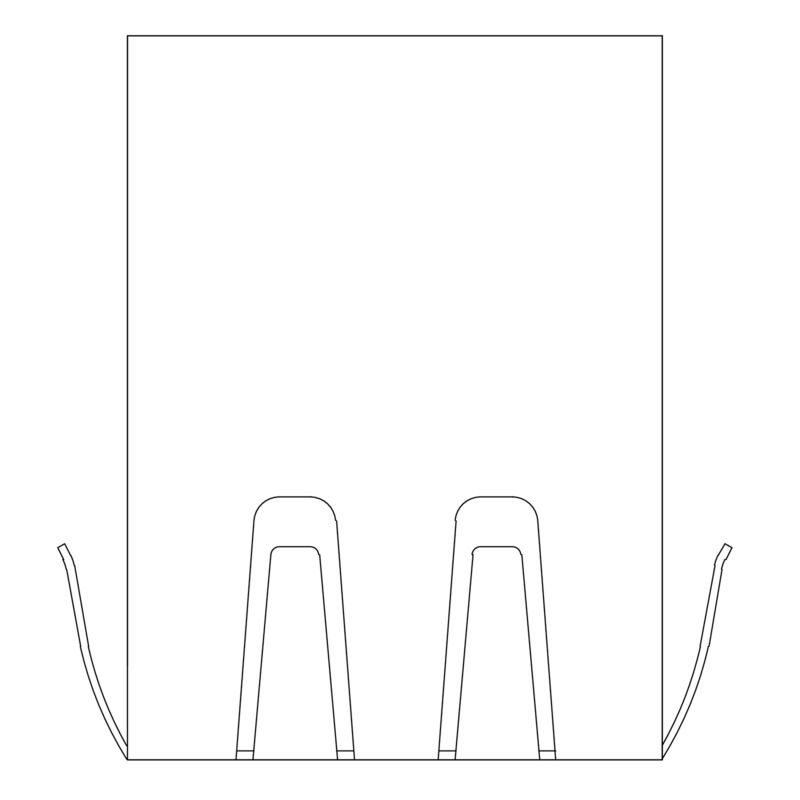

Dimensioned drawing
RJ45M R1D 3.2E4N RL

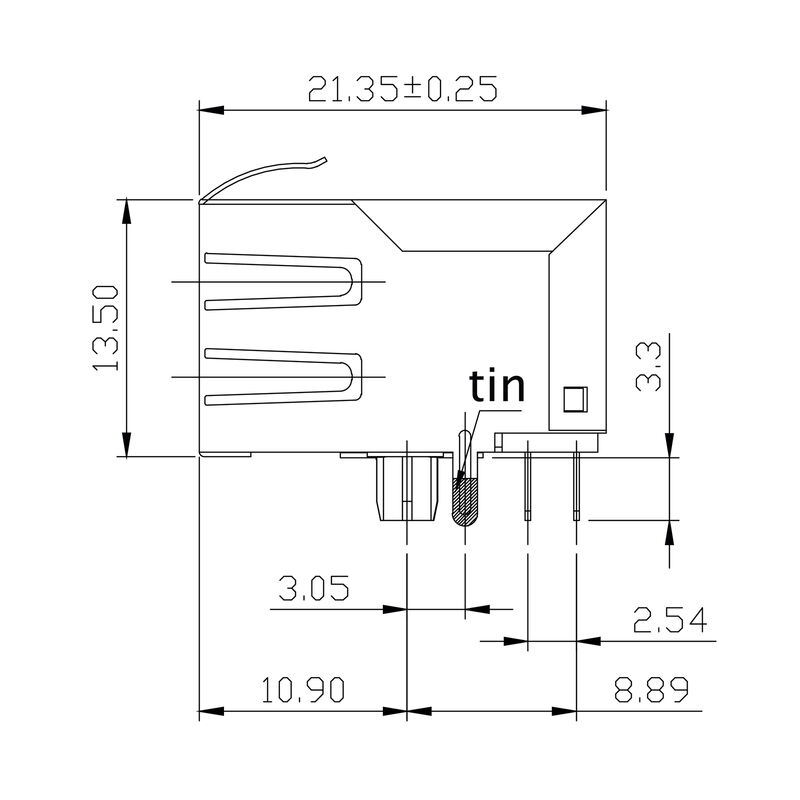

Dimensioned drawing
RJ45M R1D 3.2E4N RL

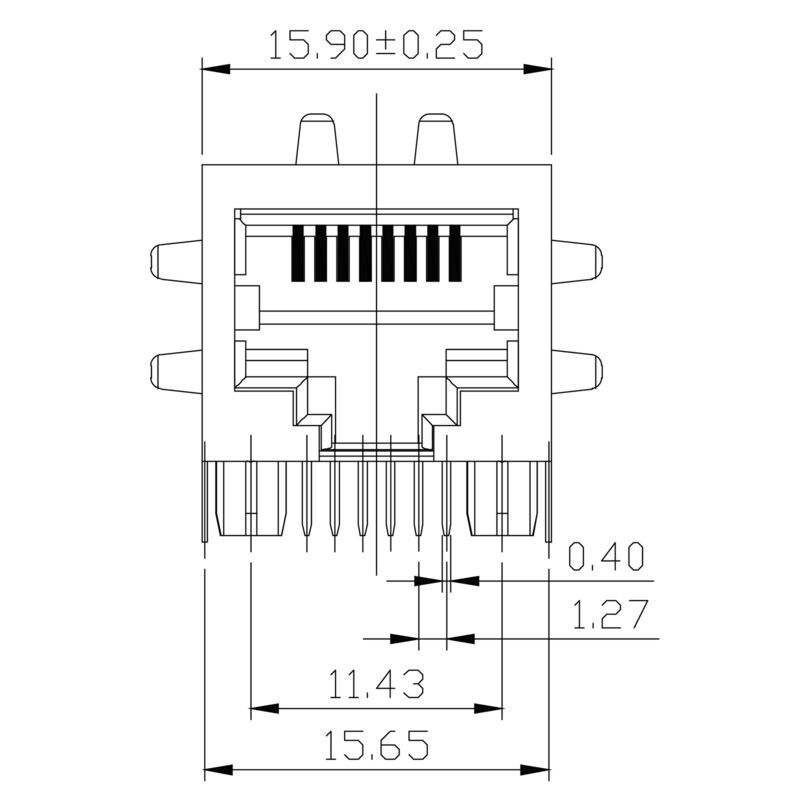

Dimensioned drawing
RJ45M R1D 3.2E4N RL
Dimensioned drawing
RJ45M R1D 3.2E4N RL

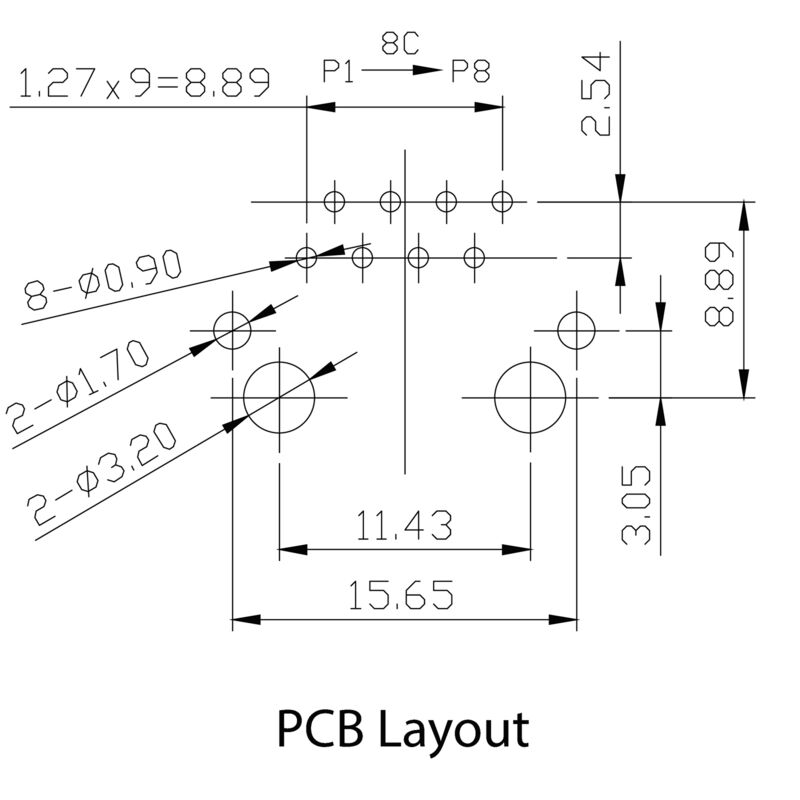

PCB design
RJ45M R1D 3.2E4N RL

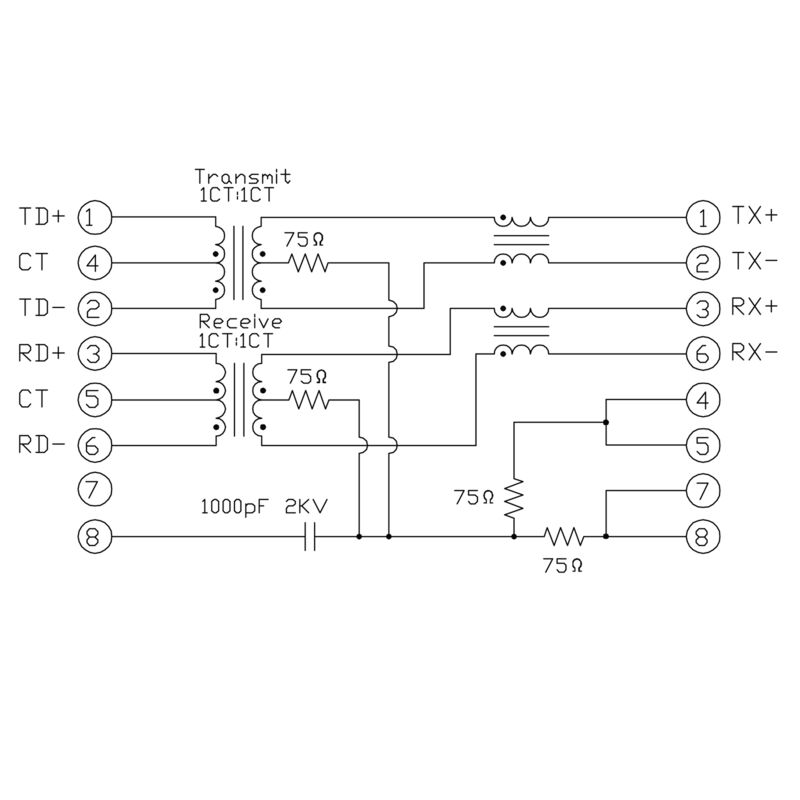

Wiring diagram
RJ45M R1D 3.2E4N RL
Dimensioned drawing
RJ45M R1D 3.2E4N RL

RJ45M R1D 3.2E4N RL

Tämä tuote ei ole pian enää saatavana.

Viimeinen tilauspäivä: /Date(1798671600000)/

OMNIMATE Data - RJ45 transformer jack, PCB plug-in connector, THT/THR solder connection, 90°, bottom, 6 tabs, No, Plugging cycles: 750, Number of poles: 8, PA 9T, 30...80 µ" Ni / ≥ 30 µ" Au , Tape

Tuotteen tunnus 2564430000
Lataa tietosivu Tekninen tuki Tuotelataukset
Vastineet 20 Samankaltaiset tuotteet 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Electrical properties Standards Material data Packing Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Сертификат № (cURus)
E471884

General ordering data

Változat
OMNIMATE Data - RJ45 transformer jack, PCB plug-in connector, THT/THR solder connection, 90°, bottom, 6 tabs, No, Plugging cycles: 750, Number of poles: 8, PA 9T, 30...80 µ" Ni / ≥ 30 µ" Au , Tape
N. d’ordine
2564430000
Tipo
RJ45M R1D 3.2E4N RL
GTIN (EAN)
4050118572926
Qty.
200 items
Packaging
Tape
Leveransstatus
This article will no longer be available in the future.
Last order date
/Date(1798671600000)/

Dimensions and weights

Profondeur
21,35 mm
Depth (inches)
0,841 inch
Posizione verticale
16,8 mm
Height (inches)
0,661 inch
Height of lowest version
13,5 mm
Larghezza
15,9 mm
Width (inches)
0,626 inch
Net weight
4,206 g

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Latch option
bottom
LED
No
Mounting onto the PCB
THT/THR solder connection
Number of poles
8
Number of solder pins per pole
1
Outgoing elbow
90°
Performance-Category
10/100 MBit/s
Pitch in inches (P)
0,05 "
Pitch in mm (P)
1,27 mm
Plugging cycles
750
Product family
OMNIMATE Data - RJ45 transformer jack
Protection degree
IP20
Shield surface
nickel-plated
Shield tabs
6 tabs
Shielding
Yes
Shielding material
Brass
Side termination, characteristic
Solder flange
Solder pin dimensions
Octagonal
Solder pin length (l)
3,2 mm
Soldering process
Reflow soldering
Manual soldering
Wave soldering
Tolerance of solder pin position
± 0.1 mm
Transmission rate
10/100 MBit/s
Type of connection
Solder connection

Electrical properties

Dielectric strength, contact / shield
1500 V DC
Dielektrická pevnost, kontakt / kontakt
1000 V DC
Insulation resistance
≥ 500 MΩ
Nominal voltage
125 V
Rated current
1.5 A

Standards

Connector standard
IEC 60603-7

Material data

Materiale isolante
PA 9T
Colour
black
컬러 차트(유사)
RAL 9011
Gruppo materiali isolanti
II
Comparative Tracking Index (CTI)
≥ 500
Insulation resistance
≥ 500 MΩ
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact base material
Phosphorus bronze
Contact material
Cu-alloy
Contact surface
Gold over nickel
Layer structure of plug contact
30...80 µ" Ni / ≥ 30 µ" Au
Storage temperature, min.
−40 °C
Storage temperature, max.
85 °C
Operating temperature, min.
−40 °C
Operating temperature, max.
85 °C

Packing

Packaging
Tape
VPE length
330 mm
VPE width
330 mm
VPE height
50 mm
Tape reel diameter ∅ (A)
330 mm
Surface resistance
Rs = 109 - 1012 Ω

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
