RSV1,6 S24 GR

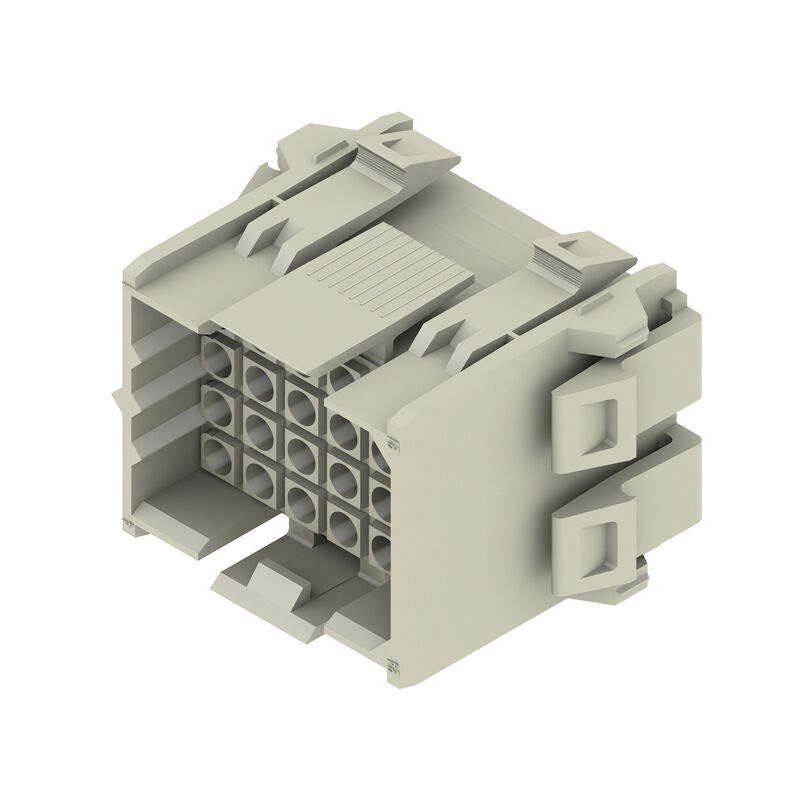

Product image
RSV1,6 S24 GR
Product image
RSV1,6 S24 GR
Dimensional drawing
RSV1,6 S24 GR
Dimensional drawing
RSV1,6 S24 GR
Graph

RSV1,6 S24 GR

PCB plug-in connector, male plug, 5.00 mm, Number of poles: 24, 180°, Crimp connection, Clamping range, max. : 3.31 mm², Box

Référence produit 1418100000
Fiche technique Engineering-support Produktdownloads
Tilbehør 50 Anvendte produkter 7
Godkännanden General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Märkdata enligt IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Godkännanden

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202

General ordering data

Version
PCB plug-in connector, male plug, 5.00 mm, Number of poles: 24, 180°, Crimp connection, Clamping range, max. : 3.31 mm², Box
Order No.
1418100000
Type
RSV1,6 S24 GR
GTIN (EAN)
4008190186913
Qty.
20 Styk
Product data
IEC: 630 V / 17 A
UL: 600 V / 10 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Depth
33 mm
Глубина (дюймов)
1,299 inch
Height
27 mm
Height (inches)
1,063 inch
Width
46 mm
Width (inches)
1,811 inch
Масса нетто
17,46 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Signal - series RSV
Type of connection
Field connection
Wire connection method
Crimp connection
Pitch in mm (P)
5 mm
Delning i tum (P)
0,197 "
Ledarutgångsriktning
180°
Number of poles
24
L1 in mm
25 mm
L1 in inches
0,984 "
Number of rows
4
Polradstal
6
Beröringsskydd enligt DIN VDE 57
Safe from finger touch, plugged
Beröringsskydd enligt DIN VDE 0470
IP20 plugged
Can be coded
Yes
Stripping length
4 mm
Plugging cycles
25
Plugging force/pole, max.
9 N
Pulling force/pole, max.
18 N

Material data

절연재
PA 66/6
Colori
Pebble grey
Barevný graf (podobné)
RAL 7032
Skupina izolačního materiálu
I
CTI (Comparative Tracking Index)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Clamping range, min.
0,13 mm²
Clamping range, max.
3,31 mm²
feindrähtig, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
2,5 mm²

Märkdata enligt IEC

testad enligt standard
IEC 60664-1
IEC 61984
Corrente di dimensionamento, numero minimo di poli (Tu=20 °C)
17 A
Névleges áram, maximális pólusszám (Tu=20 °C)
13 A
Jmenovitý proud, min. počet pólů (Tu=40 °C)
15 A
Rated current, max. number of poles (Tu=40°C)
11,5 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
400 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
4 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
53975-13
Rated voltage (Use group C / CSA)
600 V
Rated current (Use group C / CSA)
13 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E92202
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
239 mm
VPE width
148 mm
VPE height
39 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • Rated cross-section depends on crimp contact used.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Max. outer diameter of the cable (with insulation): 3.5 mm
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
