Özellikler
| Version | Phase busbar (Terminals), 63, Number of poles: 36, Insulated: Yes, 10 |
| Order No. | 2658670000 |

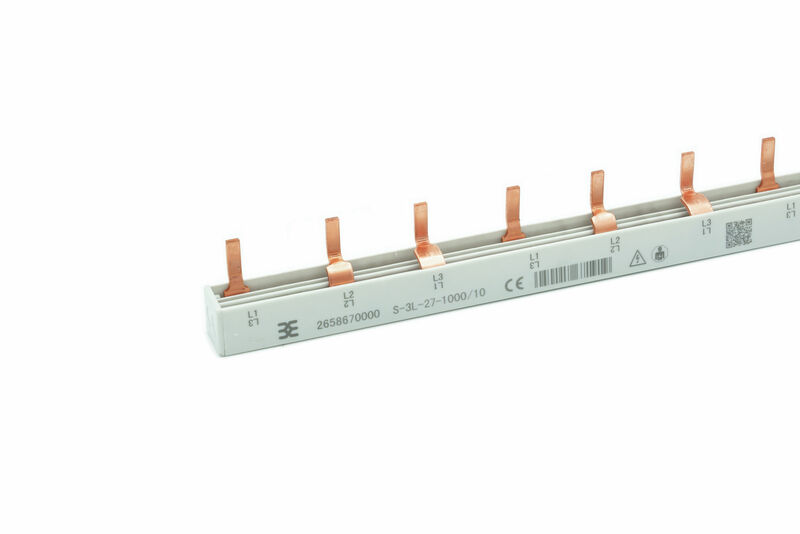

| Type | S-3L-27-1000/10 |
| GTIN (EAN) | 4050118671858 |
| Qty. | 20 adet |
| Depth | 15 mm |
| Depth (inches) | 0,591 inch |
| Height | 27,5 mm |
| Height (inches) | 1,083 inch |
| Width | 1.016 mm |
| Width (inches) | 40 inch |
| Net weight | 101,25 g |
| REACH SVHC | / |
| RoHS Compliance Status | Compliant without exemption |
| Colour | grey |
| Explosion-tested version | No |
| Pitch in mm (P) | 27 mm |
| Number of poles | 36 |
| Rated cross-section | 10 mm² |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165145) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_313386) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2658670000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000215 |
| ETIM 8.0 | EC000215 |
| ETIM 9.0 | EC000215 |
| ECLASS 11.0 | 27-37-13-06 |
| ECLASS 12.0 | 27-37-13-06 |
| ECLASS 13.0 | 27-37-13-06 |
| ECLASS 14.0 | 27-37-13-06 |
| Approvals |  |
| ROHS | Conform |
