Özellikler
| Version | SAI Active, Subbus |
| Order No. | 1938720000 |

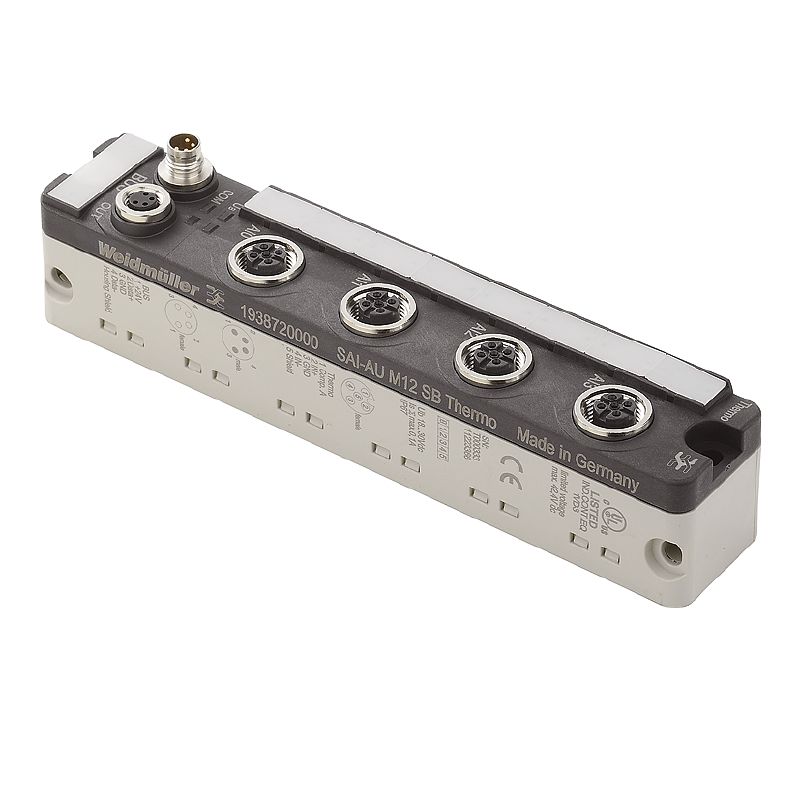

| Type | SAI-AU M12 SB 4THERMO |
| GTIN (EAN) | 4032248612703 |
| Qty. | 1 adet |
| Height | 32 mm |
| Height (inches) | 1,26 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Length | 155 mm |
| Length (inches) | 6,102 inch |
| Net weight | 282 g |
| Storage temperature | -25 °C...85 °C |
| Operating temperature | 0 °C...60 |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 30ca4bfe-b33c-43ed-b218-3746bc09f6a6 |
| Connection to Subbus (SUB-IN) |
1 x M8 plug 4-pole
A-coded |
| Connection to Subbus (SUB-OUT) |
1 x M8 female 4-pole
A-coded |
| I/O connections |
4 x M12 female
5-pole A-coded |
| Diagnosis indication | red |
| Input filter | configurable |
| Diagnosis indication | red |
| Certificate |
CE
cULus |
| Earth | < 200 g |
| Housing main material |
Pocan
PBT |
| Protection degree | IP67 |
| UL 94 flammability rating | 5VA |
| Limits | 18 V DC ... 30 V DC |
| Operating voltage | 24 V |
| Reverse polarity protection | Yes |
| Approval/Certificate/Document of Conformity |
[Declaration_of_Conformity_DE_PN45](https://mdcop.weidmueller.com/mediadelivery/asset/900_41950)
[CE Declaration of Conformity - DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_287398) [UKCA Declaration of Conformity - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_287402) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205427) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1938720000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1938720000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1938720000&norm=0) |
| User Documentation |
[MAN UR67 SAI-Aktive Universal Pro DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_313788)
[MAN UR67 SAI-Active Universal Pro EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_313789) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001601 |
| ETIM 7.0 | EC001601 |
| ETIM 8.0 | EC001601 |
| ETIM 9.0 | EC001601 |
| ECLASS 9.0 | 27-24-26-05 |
| ECLASS 9.1 | 27-24-26-90 |
| ECLASS 10.0 | 27-24-26-05 |
| ECLASS 11.0 | 27-24-26-05 |
| ECLASS 12.0 | 27-24-26-05 |
| ECLASS 13.0 | 27-24-26-05 |
| Approvals |   |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
