Özellikler
| Version | Sensor/Actuator plug-in connector, Crimp contact |
| Order No. | 1995820000 |

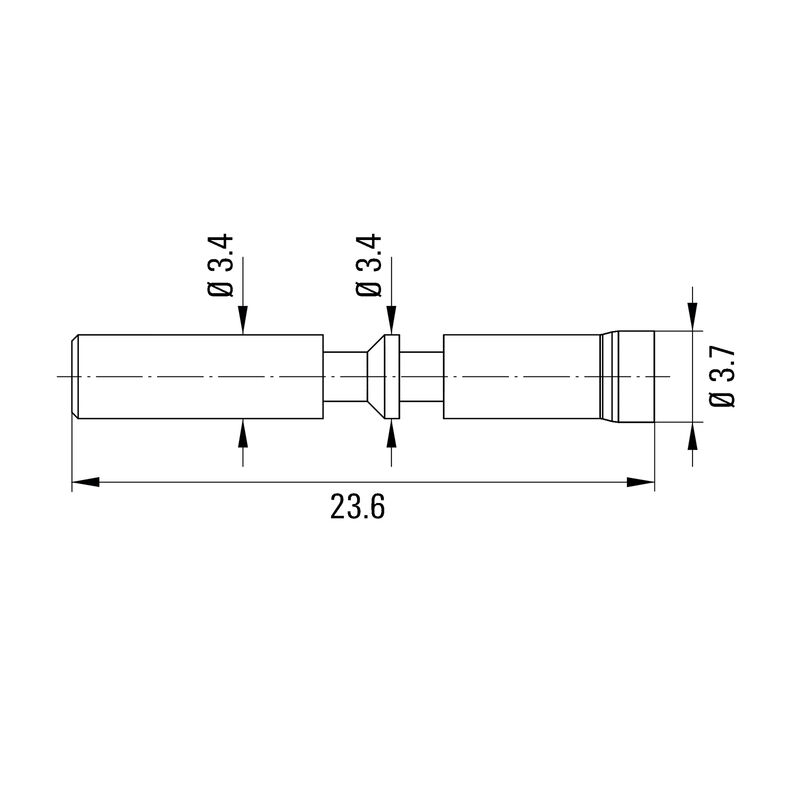

| Type | SAI-M23-KBC-L-0.75/2.50 |
| GTIN (EAN) | 4032248925681 |
| Qty. | 50 adet |
| Net weight | 0,94 g |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 7baf363e-d867-435e-844e-c01f32ebf146 |
| Conductor cross-section, max. | 2,5 mm² |
| Conductor cross-section, min. | 0,75 mm² |
| Contact material | Copper-Zinc alloy |
| Contact surface | Gold-plated |
| Insulation strength | > 1010 Ω |
| Plugging cycles | > 1000 |
| Type of connection | Crimp connection |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_102351) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293)
[FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC000796 |
| ETIM 7.0 | EC000796 |
| ETIM 8.0 | EC000796 |
| ETIM 9.0 | EC000796 |
| ECLASS 9.0 | 27-44-02-92 |
| ECLASS 9.1 | 27-44-02-90 |
| ECLASS 10.0 | 27-44-02-92 |
| ECLASS 11.0 | 27-44-02-92 |
| ECLASS 12.0 | 27-44-02-92 |
| ECLASS 13.0 | 27-44-02-92 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate No. (UR) | E344862 |
