Özellikler
| Version | , M8 |
| Order No. | 3103370000 |

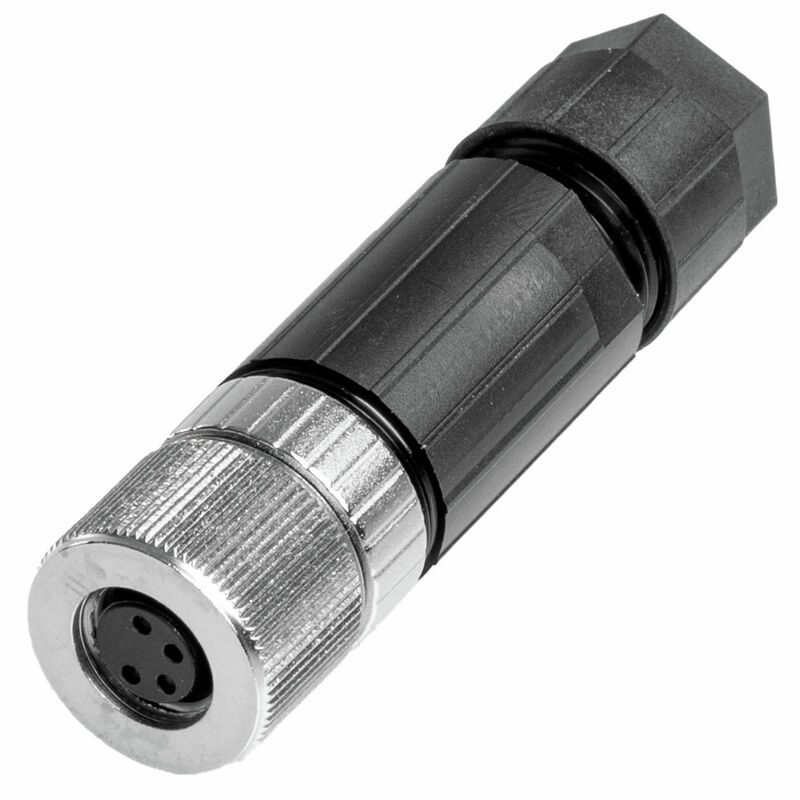

| Type | SAIBP-4A-3.5/5.5-M8 |
| GTIN (EAN) | 4099987149709 |
| Qty. | 1 adet |
| Width | 49 mm |
| Width (inches) | 1,929 inch |
| Diameter | 14 mm |
| Net weight | 100 g |
| Cable diameter, max. | 5,5 mm |
| Cable diameter, min. | 3,5 mm |
| Coding | none |
| Conductor cross-section, max. | 0,5 mm² |
| Conductor cross-section, min. | 0,14 mm² |
| Contact material | CuSn |
| Contact surface | Ni/Au |
| Gender of contact | Female |
| Housing main material | PBT diecast zinc |
| Number of poles | 4 |
| Plugging cycles | ≥ 100 |
| Pollution severity | 3 |
| Protection degree | IP67 |
| Rated current | 4 A |
| Rated voltage | 30 V |
| Shield connection | No |
| Temperature range of housing | -25…+85 °C |
| Threaded ring material | Diecast zinc |
| Type of connection | M8 |
| Connector standard | IEC 61076-2-104 |
| Shock and vibration proof according to | EN 50155:2001 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_325797) |
| Catalogues | [Calogues in PDF-format](https://www.weidmueller.com/int/service/technical_product_catalogues.jsp) |
| ETIM 6.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 9.0 | EC002635 |
| ECLASS 9.0 | 27-44-01-02 |
| ECLASS 9.1 | 27-44-01-03 |
| ECLASS 10.0 | 27-44-01-02 |
| ECLASS 11.0 | 27-44-01-02 |
| ECLASS 12.0 | 27-44-01-16 |
| ECLASS 13.0 | 27-44-01-02 |
| ECLASS 14.0 | 27-44-01-16 |
| ROHS | Conform |
