SAIL-M12GM12W-3-4.0U
SAIL-M12GM12W-3-4.0U
Dimensioned drawing
Male, angled
SAIL-M12GM12W-3-4.0U
Detailed drawing
Straight socket
SAIL-M12GM12W-3-4.0U
Pole scheme
Male
SAIL-M12GM12W-3-4.0U
Pole scheme
Socket
SAIL-M12GM12W-3-4.0U
Wiring diagram
Schaltbild

SAIL-M12GM12W-3-4.0U

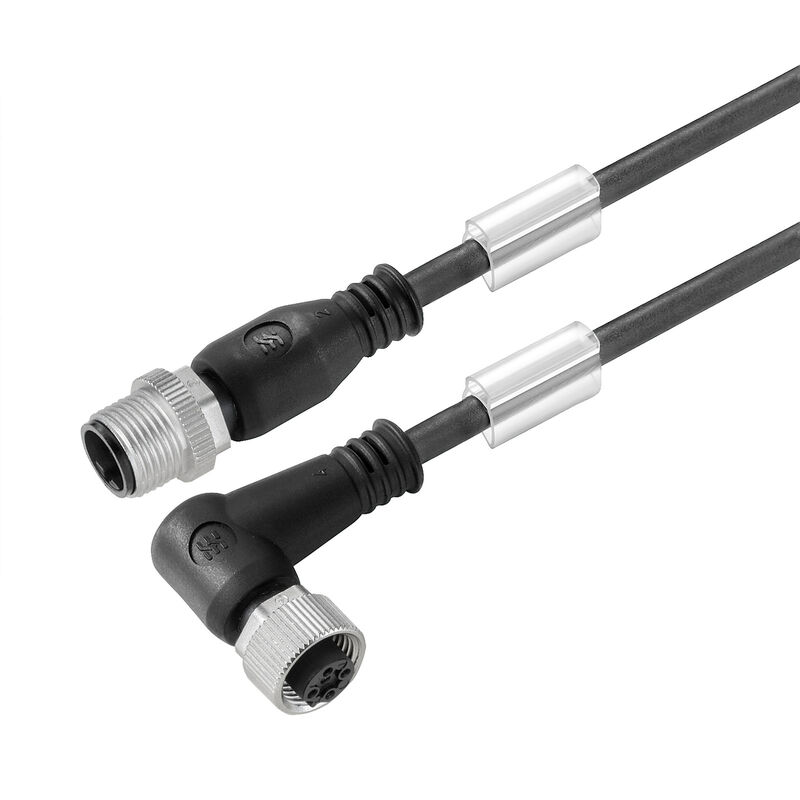

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 4 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 9457390400
Download data sheet Product Downloads Engineering Support
Accessories 6 Related products 35
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 3, 4 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457390400
Type
SAIL-M12GM12W-3-4.0U
GTIN (EAN)
4032248230013
Qty.
1 items

Dimensions and weights

Diameter
3.8 mm
Net weight
102.08 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Bending cycles at torsion
> 5 Mio.
Colour coding
brown
blue
black
Guaina secondo UL AWM Style
20549 (80 °C / 300 V)
Gyorsulás
5 m/s²
Hajlítási ciklusok
12 Mio
Hajlítási sugár, min., mozgó
10 x cable diameter
Hajlítási sugár, min., álló
5 x cable diameter
Halogén
No
Hydrolysis and microbe resistant
Yes
Kabellänge
4 m
Konfigurálható kábelhossz
Yes
Köpeny anyaga
PUR
LABS-mentes
Yes
Length of torsion
1 m
Lángterjedéssel szembeni ellenállás
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Mantelfarbe
black
Nucleo secondo UL AWM Style
10493 (80 °C / 300 V)
Number of poles
3
Outside diameter
3.8 mm ± 0.15 mm
Resistant to welding beads
No
Resistencia al aceite
Yes
Sebesség
3.33 m/s
Sheath material hygroscopic
Yes
Suitable for cable carriers
Yes
Szigetelés
PP
Temperature range, moving
-25...60 °C
Temperaturområde, fast lagd
-50...80 °C
Welding spark resistance
No
árnyékolt
No
Érkeresztmetszet
0.34 mm²
Прочность при кручении
180 °/m
조사 교차결합
No

General technical data

IP65
IP66
IP67
IP68
when screwed in
IP69
Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Standardní konektor
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
