SAIL-VSA-M12G-2.0U
SAIL-VSA-M12G-2.0U
Dimensioned drawing
SAIL-VSA-M12G-2.0U
Dimensioned drawing
Male, straight
SAIL-VSA-M12G-2.0U
Pole scheme
SAIL-VSA-M12G-2.0U
Pole scheme
SAIL-VSA-M12G-2.0U
Wiring diagram

SAIL-VSA-M12G-2.0U

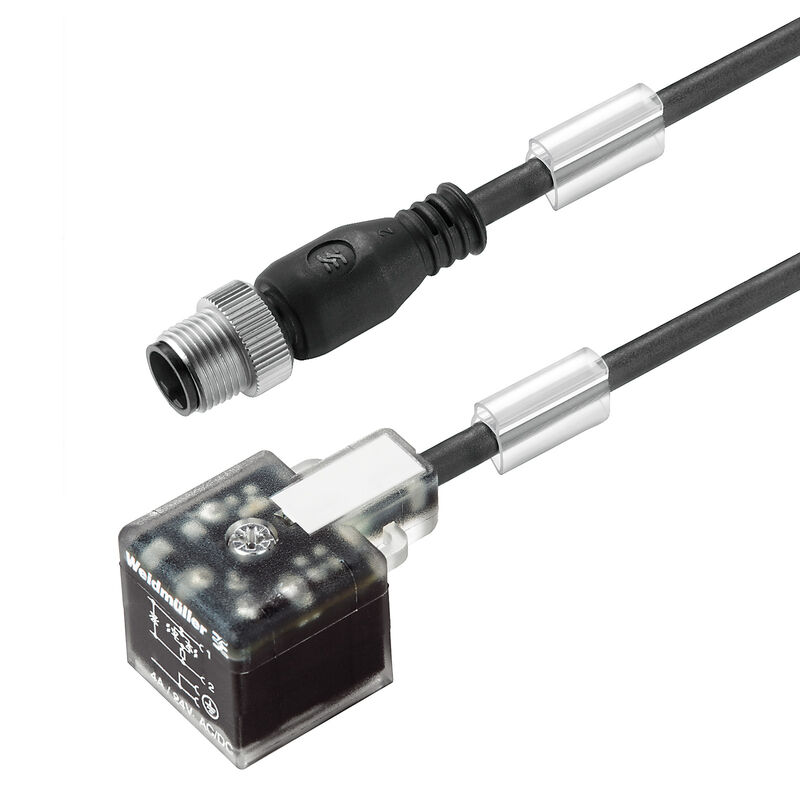

Valve cable (assembled), Straight plug - valve plug, Design A (18 mm), M12 = A-coded, Cable length: 2 m, PUR, black

Produkt ID 9457050000
Download datablad Engineering-support
Anvendte produkter 10
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Valve cable (assembled), Straight plug - valve plug, Design A (18 mm), M12 = A-coded, Cable length: 2 m, PUR, black
Order No.
9457050000
Type
SAIL-VSA-M12G-2.0U
GTIN (EAN)
4008190311049
Qty.
1 Styk

Dimensions and weights

Net weight
101 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
4060c755-8d0b-4d43-bdb3-4ffabe9d7497

Technical specifications for cable

Accelerartion
5 m/s²
Böjcykler
2 Mio
Böjradie min, fast monterad
5 x cable diameter
Böjradie min, rörlig
10 x cable diameter
Colour coding
brown
blue
Green/yellow
Halogener
No
hastighet
200 m/s
Isolering
PP
Lunghezza del cavo
2 m
Mantelmaterial
PUR
Number of poles
3
Outside diameter
4.6 mm ± 0.2 mm
Przekrój żyły
0,5 mm²
Resistant to welding beads
No
Skärmad
No
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No
외피 색상
black

General technical data

All valve plugs are fitted with protective circuits
Zener diode
Coding
Design A (18 mm)
M12 = A-coded
Connection thread
Miscellaneous
Contact material
CuZn
Contact surface
tinned
LED
Yes
Nominal current
4 A
Nominal voltage
24 V
Protection degree
IP67
when screwed in
Temperature range of housing
-25…+80 °C
Tightening torque
Mounting screw M3: 0.4 Nm
M12: 0.8 - 1.2 Nm
Version
Straight plug - valve plug

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
