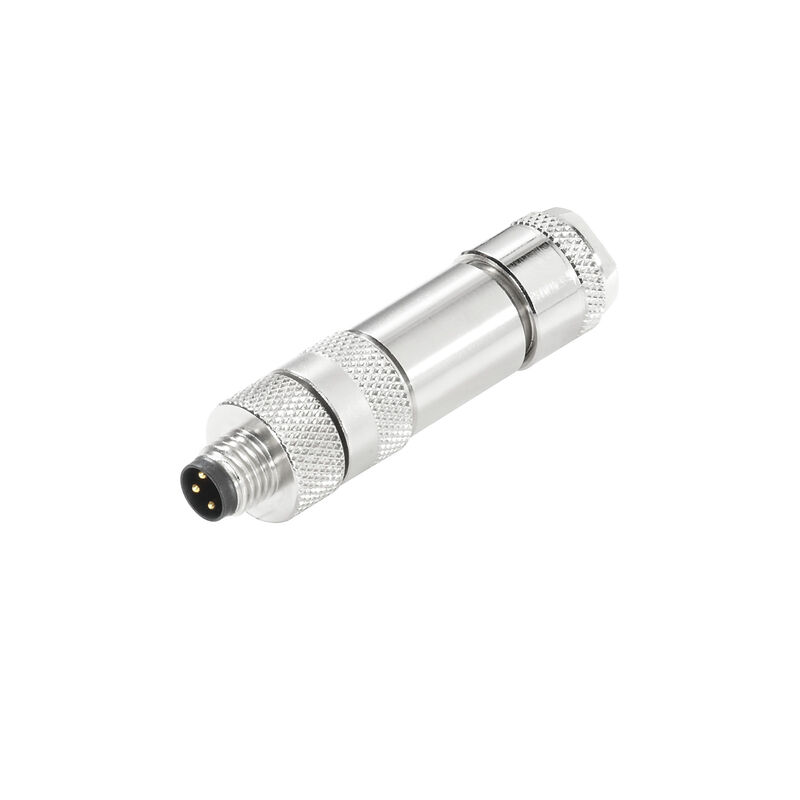

SAISGS-M-3A-3.5/5.5-M8-IF

SAISGS-M-3A-3.5/5.5-M8-IF

Field attachable connector, M8

Product ID 1010060000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data customisable plug-in connectors Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cULus)
E307231

General ordering data

Ausfuehrung
Field attachable connector, M8
Order No.
1010060000
Art
SAISGS-M-3A-3.5/5.5-M8-IF
GTIN (EAN)
4032248715312
Qty.
1 items

Dimensions and weights

Net weight
27,466 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical data customisable plug-in connectors

Cable diameter, max.
5,5 mm
Cable diameter, min.
3,5 mm
Coding
none
Conductor cross-section, max.
0,5 mm²
Conductor cross-section, min.
0,14 mm²
Contact surface
Gold-plated
Gender of contact
Macho
Housing main material
CuZn
Insulation resistance
108 Ω
Materiál kroužku se závitem
주조 아연
Nominal current
4 A
Nominal voltage
60 V
Number of poles
3
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Shield connection
Yes
Temperature range of housing
-40 … +85 ° C
Type of connection
Screw connection

Classifications

ETIM 8.0
EC002635
ETIM 9.0
EC002635
ETIM 10.0
EC002635
ECLASS 14.0
27-44-01-16
ECLASS 15.0
27-44-01-16
