SC-SMT 3.81/02/90G 1.5SN BK BX

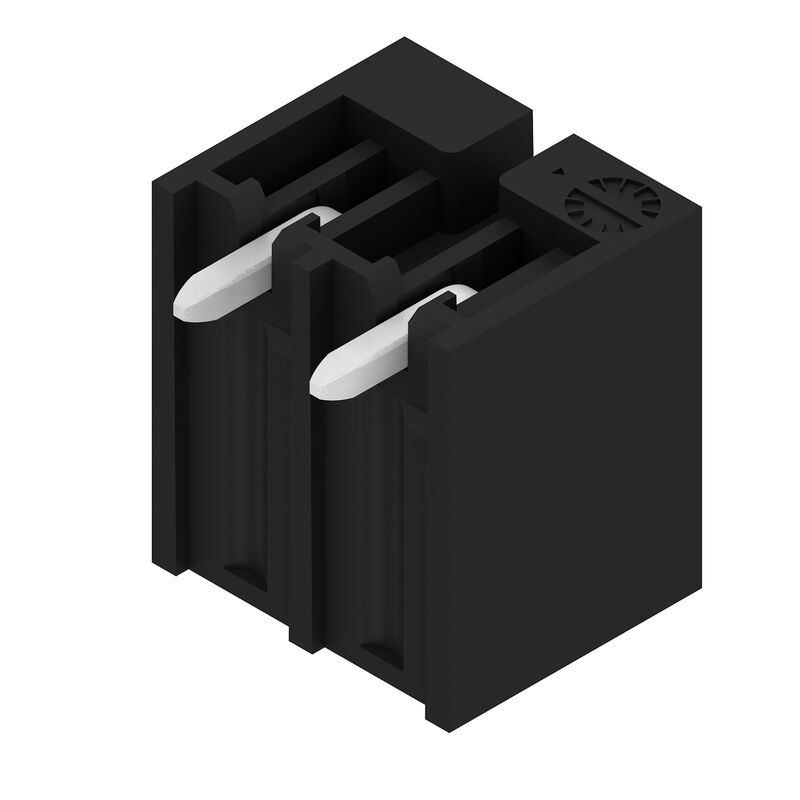

Product image
SC-SMT 3.81/02/90G 1.5SN BK BX

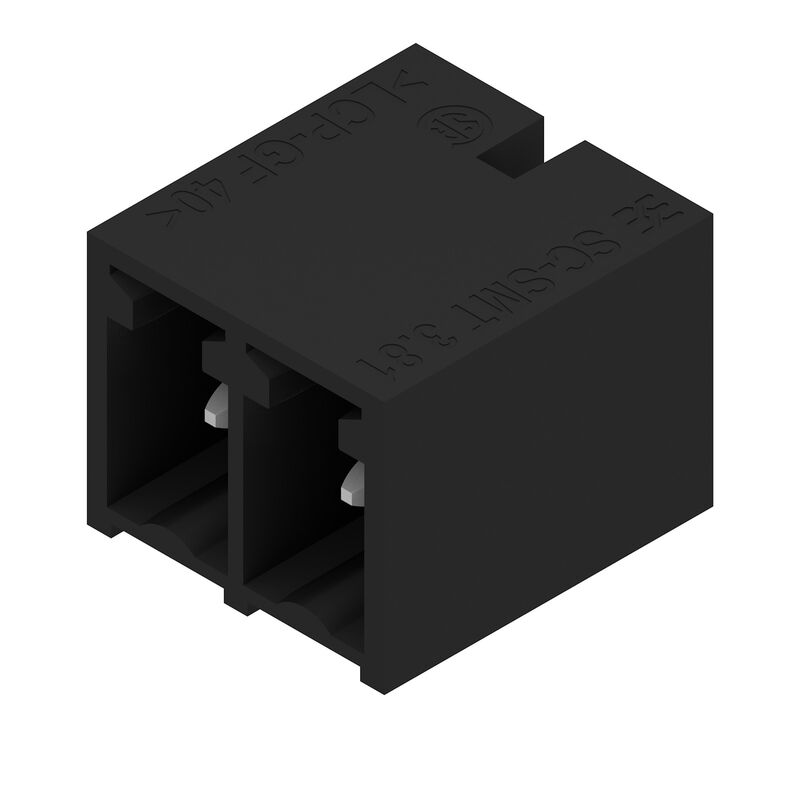

Product image
SC-SMT 3.81/02/90G 1.5SN BK BX
Dimensional drawing

SC-SMT 3.81/02/90G 1.5SN BK BX

PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.81 mm, Number of poles: 2, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box

Ürün No. 1862960000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 2 Şunun karşı parçasıdır 116 İlgili ürünler 25
Homologaciones General ordering data Dimensiones y pesos Environmental Product Compliance 시스템 사양 Données des matériaux Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Imballaggio Viktig hänvisningstext Classifications

Homologaciones

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, closed side, THT/THR solder connection, 3.81 mm, Number of poles: 2, 90°, Solder pin length (l): 1.5 mm, tinned, black, Box
Order No.
1862960000
Type
SC-SMT 3.81/02/90G 1.5SN BK BX
GTIN (EAN)
4032248428069
Qty.
50 adet
Product data
IEC: 320 V / 17.5 A
UL: 300 V / 11 A
Packaging
Box

Dimensiones y pesos

Depth
9,2 mm
Depth (inches)
0,362 inch
Height
8,57 mm
Height (inches)
0,337 inch
Height of lowest version
7,07 mm
Width
8,31 mm
Width (inches)
0,327 inch
Čistá hmotnost
0,76 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

시스템 사양

Product family
OMNIMATE Signal - series BC/SC 3.81
Type of connection
Board connection
Mounting onto the PCB
THT/THR solder connection
Pitch in mm (P)
3,81 mm
Pitch in inches (P)
0,15 "
Outgoing elbow
90°
Number of poles
2
Number of solder pins per pole
1
Solder pin length (l)
1,5 mm
Solder pin length tolerance
0 / -0,02 mm
Solder pin dimensions
d = 1.0 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,04 mm
Solder eyelet hole diameter (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Outside diameter of solder pad
2,1 mm
Template aperture diameter
1,9 mm
L1 in mm
3,81 mm
L1 in inches
0,15 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes

Données des matériaux

Insulating material
LCP GF
Colour
черный
Barevný graf (podobné)
RAL 9011
Skupina izolačního materiálu
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Materiál kontaktu
Cu-alloy
Povrch kontaktu
tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Jmenovitý proud, min. počet pólů (Tu=20 °C)
17,5 A
Jmenovitý proud, max. počet pólů (Tu=20 °C)
13,9 A
Jmenovitý proud, min. počet pólů (Tu=40 °C)
17 A
Jmenovitý proud, max. počet pólů (Tu=40 °C)
12,4 A
Jmenovité napětí pro třídu přepětí / stupeň znečištění II/2
320 V
Jmenovité napětí pro třídu přepětí / stupeň znečištění III/2
160 V
Jmenovité napětí pro třídu přepětí / stupeň znečištění III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/3
2,5 kV
Krátkodobý odpor proti zkratovému proudu
3 x 1s with 76 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated current (Use group B / CSA)
11 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
11 A
Rated current (Use group D / UL 1059)
11 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Imballaggio

Packaging
箱
VPE length
85 mm
VPE width
70 mm
VPE height
40 mm

Viktig hänvisningstext

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • P on drawing = pitch
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
