Özellikler

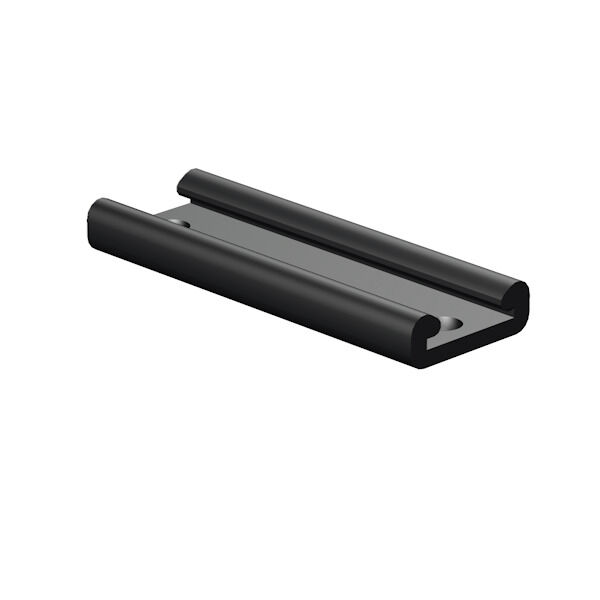

| Version | Device markers, Accessories x 17 mm, PVC, Colour: black |
| Order No. | 0138900000 |
| Type | SCHS1 |
| GTIN (EAN) | 4008190009168 |
| Qty. | 1 adet |
| Depth | 6 mm |
| Depth (inches) | 0,236 inch |
| Height | 1.000 mm |
| Height (inches) | 39,37 inch |
| Width | 17 mm |
| Width (inches) | 0,669 inch |
| Net weight | 87 g |
| Operating temperature range | -20...80 °C |
| RoHS Compliance Status | Compliant |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Halogen | No |
| Material | PVC |
| Material colour according to resistance code | 0 |
| Number of markers per combination | 1 MultiCard = Accessories |
| Number of markers per packaging unit |
|
| Operating temperature range | -20...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -20 °C |
| UL 94 flammability rating | V-0 |
| Width | 17 mm |
| Halogen | No |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.0138900000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
Aksesuarlar
-
Ürün No.:0139200000Ambalaj birimi:1 adet
Terminal markers, Protective cap, 500 x 12.5 mm, Transparent
-
Ürün No.:0139000000Ambalaj birimi:100 adet
Terminal markers, Insert markers, 500 x 12.5 mm, white
