Özellikler

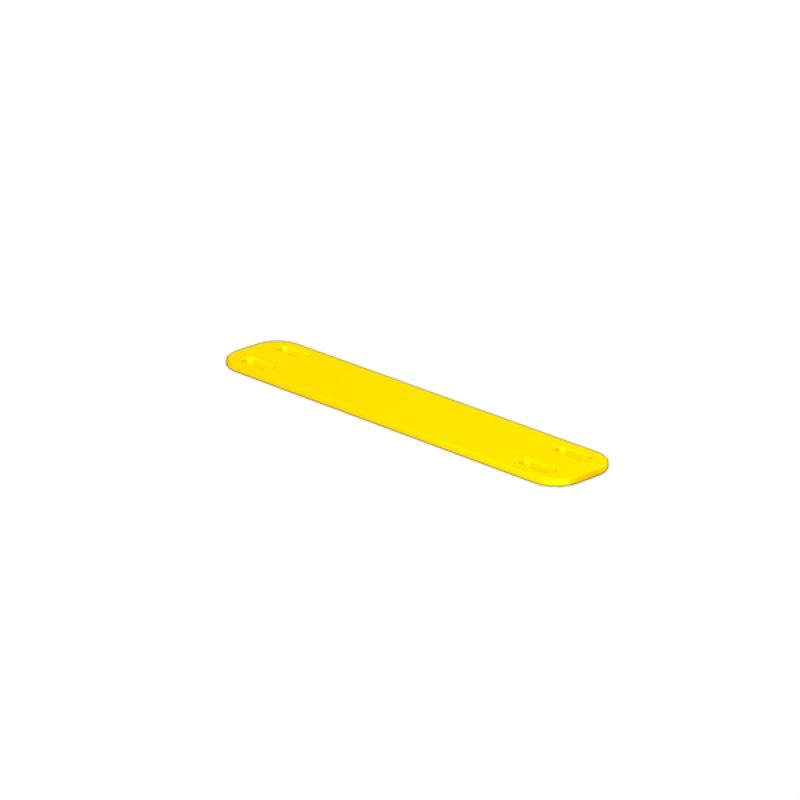

| Version | SlimFix X, Conductor and cable markers, 7 - 40 mm, 60 x 30 mm, yellow |
| Order No. | 1083240000 |
| Type | SFX 30/60 MC NE GE |
| GTIN (EAN) | 4032248846887 |
| Qty. | 30 adet |
| Depth | 1,2 mm |
| Depth (inches) | 0,047 inch |
| Height | 60 mm |
| Height (inches) | 2,362 inch |
| Width | 30 mm |
| Width (inches) | 1,181 inch |
| Net weight | 4,467 g |
| Operating temperature range | -40...100 °C |
| REACH SVHC | / |
| Colour | yellow |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 4 |
| Number of markers per combination | 1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Recommended industries |
Transportation
Machinery |
| Size of labelling field | 45 x 30 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Version | Installation with cable ties |
| Width | 30 mm |
| Conductor cross-section, max. | 500 mm² |
| Conductor cross-section, min. | 16 mm² |
| Conductor O.D. | 7 - 40 mm |
| Conductor O.D., max. | 40 mm |
| Conductor O.D., min. | 7 mm |
| Cross-section for connected wire | 16 - 500 mm² |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_60346) |
| Engineering Data | [Zuken E3.S](LINK/CAE_EN.html) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1083240000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1083240000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1083240000&norm=0) |
| Product Change Notification |
[MultiCard Material modification](https://mdcop.weidmueller.com/mediadelivery/asset/900_308560)
[MultiCard Material Modifikation](https://mdcop.weidmueller.com/mediadelivery/asset/900_308561) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ROHS | Conform |
